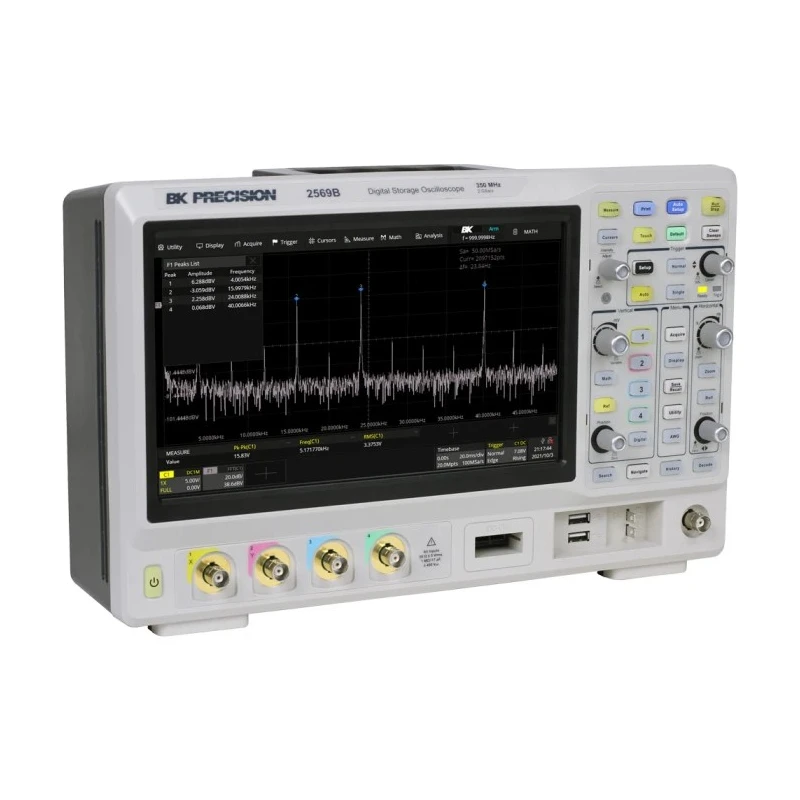

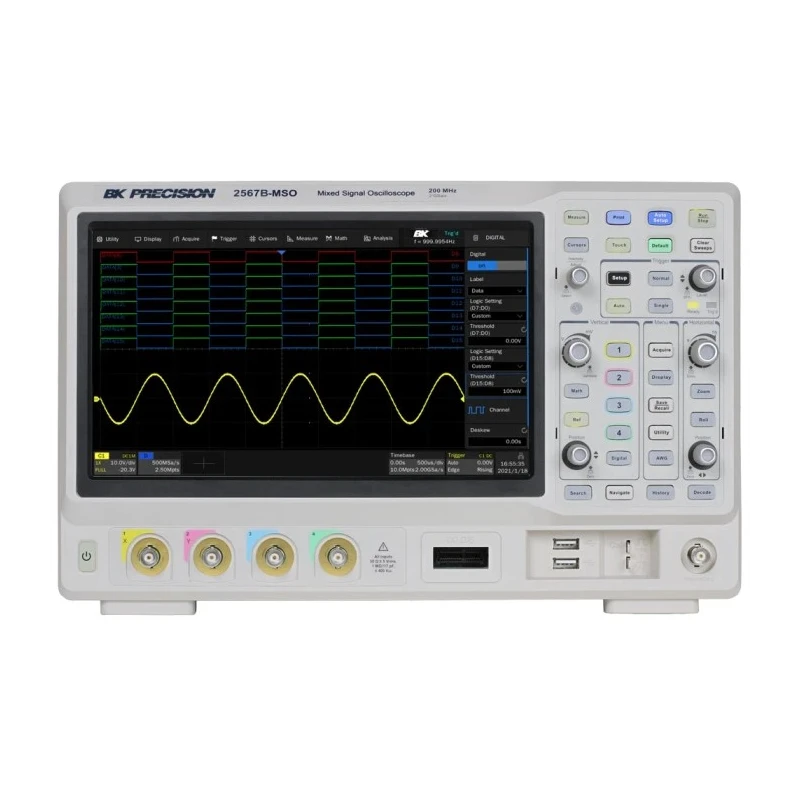

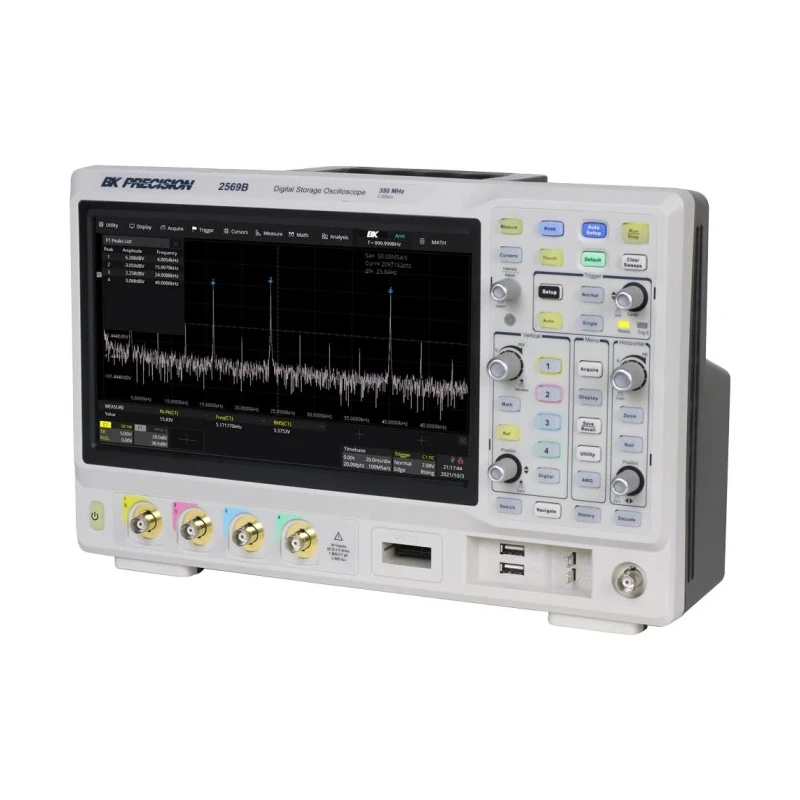

BK Precision 2560B Series 200 MHz Bench Oscilloscope 4-Channel BK2567B-MSO

BK Precision BK2567B-MSO 200 MHz Bench Oscilloscope 4-Channel offers an advanced digital storage and mixed signal platform ideal for detailed waveform analysis in industrial and laboratory environments. This bench oscilloscope features a 200 MHz bandwidth and four channels, enabling comprehensive signal observation with high fidelity and accuracy. The capacitive touchscreen provides an intuitive user interface with a resolution of 1024 x 600 pixels on a large 10.1-inch display, facilitating easy control and measurement interpretation.

With a maximum sampling rate of 2 GSa/s and 200 million points memory depth, it captures high-speed signals with depth, supporting waveform update rates up to 120,000 waveforms per second in normal mode. The BK2567B-MSO extends functionality with 16 digital channels available via included logic probe set, making it suitable for mixed-signal applications. Its integrated serial decoding supports multiple communication protocols such as I2C, SPI, UART, CAN, and LIN to assist in complex embedded systems debugging.

The model incorporates a 50 MHz arbitrary waveform generator and power analysis tools evaluating a wide range of power supply parameters, enhancing its testing capabilities. Additional software features include zone triggers, Bode plot generation, and segmented capture with a history function capable of storing up to 90,000 frames, aiding long-term and detailed analysis.

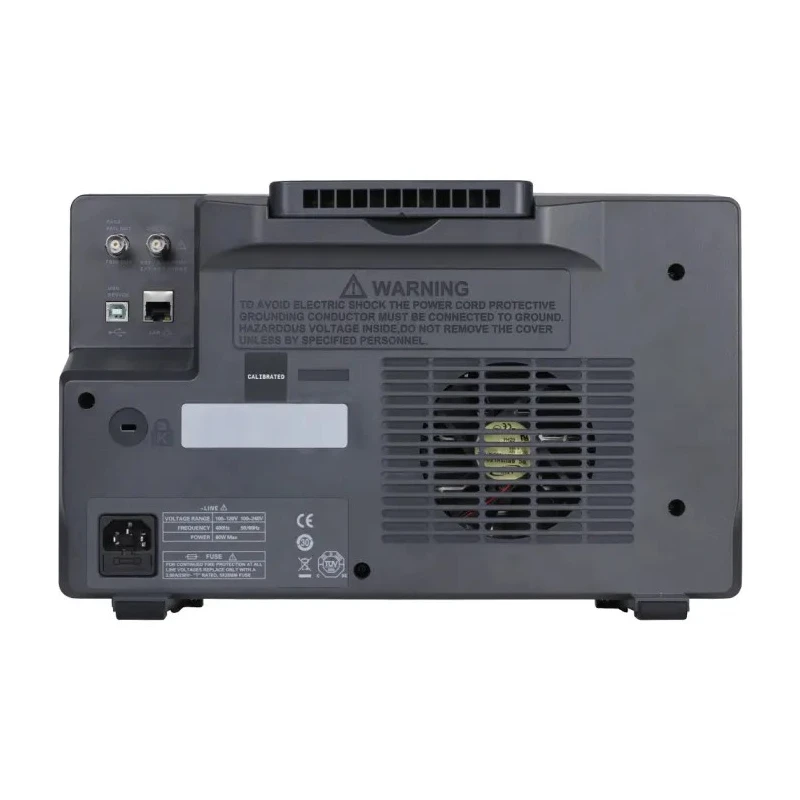

Connectivity options include standard LAN, USBTMC-compliant USB device port, and two USB host ports, allowing remote control and data transfer via built-in web server or PC software. The oscilloscope also features Pass/Fail triggers and external trigger outputs to synchronize measurements.

Offers 200 MHz bandwidth with 4 input channels for versatility. Features a large 10.1-inch capacitive touchscreen with 1024 x 600 resolution. Sample rate reaches up to 2 GSa/s with 200 Mpts maximum memory depth. Includes 16 digital channels with logic probe set in MSO models for mixed-signal analysis.

Standard serial decoding for protocols such as I2C, SPI, UART, CAN, and LIN. Equipped with a 50 MHz DDS arbitrary waveform generator and power analysis capabilities. Supports segmented acquisition and history function storing up to 90,000 frames.

Allows remote control with built-in web server and PC software via LAN and USB ports. Ideal for industrial, manufacturing, laboratory, and automotive electronics test applications.

This model is manufactured in China and is supplied new. It is highly suited for use in industrial testing, electronic design and research laboratories, manufacturing quality control, automotive diagnostics, and educational settings. This Oscilloscope provides reliable, high-resolution signal observation and comprehensive analysis capabilities that meet demanding professional requirements.
