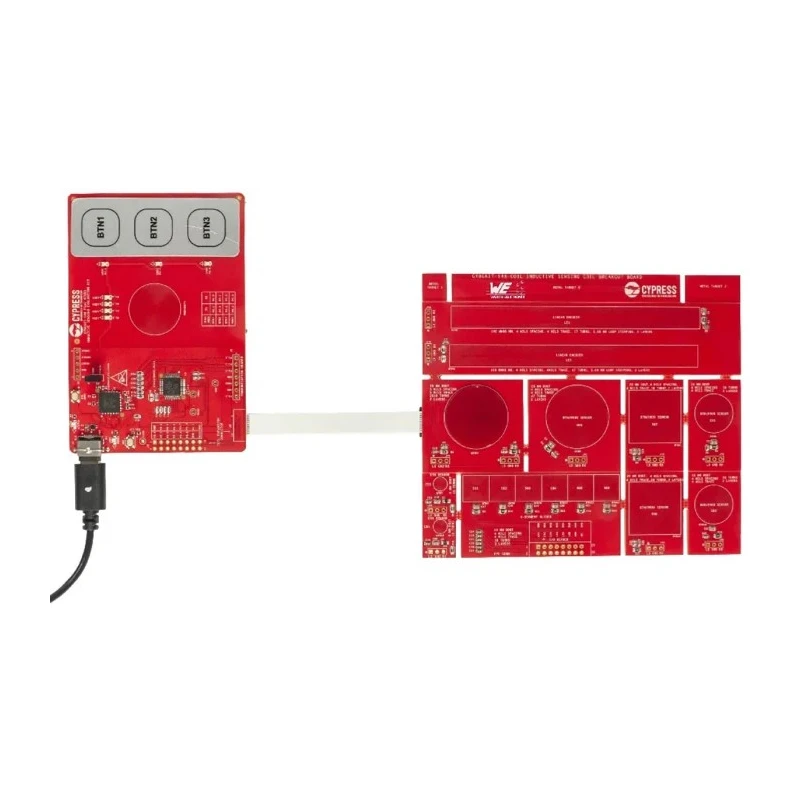

Infineon MagSense Inductive-Sensing Coil Breakout Board MCU Evaluation Kit CY8CKIT-148-COIL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | CY8CKIT-148-COIL |
| Technology | MCU |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Kit |
| Kit Name | MagSense Inductive-Sensing Coil Breakout Board |
| Processor Part Number | CY8CKIT-148 |
| Processor Type | Microcontroller |
| Processor Family Name | PSoC |
Key Features
- Features 16 total inductive sensing coils demonstrating different performance characteristics.
- Compatible with CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit.
- Supports proximity and touch detection using a single sensor.
- Enables rotation angle detection with a rotary encoder.
- Includes linear position encoding with two 100x8 linear encoder coils.
- Provides horizontal gesture detection with a six-segment sensor array.
- Complies with RoHS standards.
- Ideal for microcontroller evaluation and sensor development applications.
Product Description
Infineon CY8CKIT-148-COIL MagSense Inductive-Sensing Coil Breakout Board is an MCU evaluation kit designed to facilitate easy development and testing of inductive sensing technologies. It serves as a reference design platform tailored for use with the CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit, enabling detailed exploration of MagSense inductive sensing capabilities.
The breakout board is equipped with 16 different inductive sensing coils, each tuned to demonstrate various sensing performance characteristics. This versatility supports a wide range of sensing applications including proximity and touch detection with a single sensor, rotation angle detection via rotary encoder mechanisms, linear position encoding through two 100x8 linear encoder coils, and horizontal gesture detection facilitated by a six-segment sensor array.
This evaluation kit complies with RoHS environmental and safety standards, guaranteeing the use of lead-free and restricted hazardous substances. Its MCU-based architecture is optimized for microcontroller designs, using the PSoC processor family known for its versatility and integrated analog-digital features.
Features 16 total inductive sensing coils demonstrating different performance characteristics. Compatible with CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit. Supports proximity and touch detection using a single sensor.
Enables rotation angle detection with a rotary encoder. Includes linear position encoding with two 100x8 linear encoder coils. Provides horizontal gesture detection with a six-segment sensor array. RoHS compliant for environmentally safe use.
MCU-based design ideal for microcontroller evaluation and sensor development.
This evaluation kit is suitable for use in electronics development labs, educational institutions, industrial R&D environments, and for prototype development in embedded sensing technologies. It supports a variety of applications including consumer electronics, automation, robotics, and electronic interface design.
Explore more Evaluation Kits and development tools in the Electronics & Electricals category at EnvMart for comprehensive microcontroller and sensor development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports proximity and touch detection using a single sensor, rotation angle detection with a rotary encoder, linear position encoding with two 100x8 linear encoder coils, and horizontal gesture detection through a six-segment sensor array.
It is compatible with the CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit, allowing for detailed exploration of inductive sensing technologies.
The kit includes a total of 16 inductive sensing coils, each designed to demonstrate different performance characteristics.
This model utilizes the PSoC processor family, which is known for its versatility and integrated analog-digital features.
The evaluation kit complies with RoHS standards, ensuring it is free from lead and restricted hazardous substances.
It is suitable for use in electronics development labs, educational institutions, industrial R&D environments, and for prototype development in embedded sensing technologies.
This evaluation kit utilizes MCU (Microcontroller) technology, optimized for microcontroller designs.
The CY8CKIT-148-COIL is manufactured in India.
It is classified as an Evaluation Kit, designed for development and testing of inductive sensing technologies.
The six-segment sensor array enables horizontal gesture detection, enhancing the interaction capabilities of the sensing system.
The kit includes two 100x8 linear encoder coils for linear position encoding.
It is primarily used for microcontroller evaluation and sensor development applications, facilitating the exploration of inductive sensing capabilities.
