STMicroelectronics Current Sensing Amplifier Evaluation Kit STEVAL-AETKT2V1 for Current Sense Amplifiers

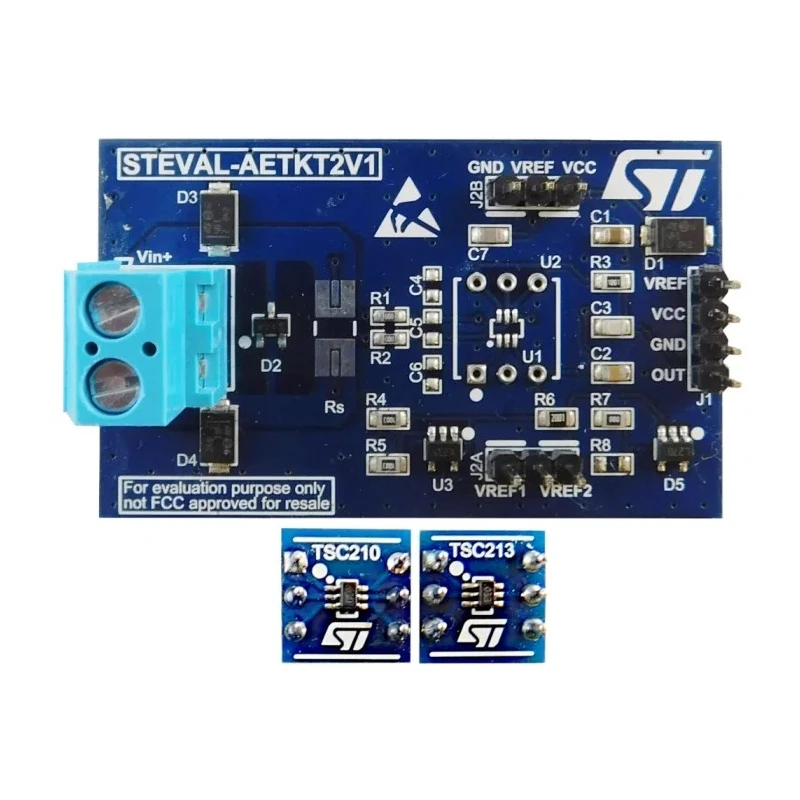

STMicroelectronics STEVAL-AETKT2V1 is an advanced Evaluation Kit for Current Sensing Amplifiers, specifically designed to support the implementation of bidirectional current sensing in various industrial and electronic development applications. This kit provides precise current measurement capabilities by positioning a sense resistor on either the high-side or low-side of the circuit.

The evaluation kit consists of a motherboard and two distinct daughter boards, each offering different gain configurations to accommodate a variety of measurement needs. It supports a wide supply voltage range from 2.7 volts up to 26 volts, making it compatible with many system power requirements and enhancing its versatility across applications.

This kit is characterized by an excellent gain drift specification of 20 parts per million per degree Celsius, ensuring measurement stability across varying temperatures. Additionally, it boasts a low quiescent current of 100 microamperes maximum, promoting energy efficiency.

The core components utilize packages SC70-6 and QFN10, with the latter measuring 1.8 by 1.4 mm, reflecting a compact form factor suitable for dense circuit designs. The device operates reliably within a broad ambient temperature range of minus 40 to 125 degrees Celsius, catering to both industrial and commercial environments.

Common applications for this evaluation kit include industrial monitoring, power management systems, and prototyping of current sensing amplifier circuits in laboratory and manufacturing settings. It assists engineers and designers in quickly assessing and integrating current sensing solutions with high accuracy and stability.

The kit includes a motherboard and two daughter boards with different gain configurations. Supports supply voltages from 2.7 V to 26 V for flexible power options. Gain drift is minimal at 20 ppm per degree Celsius for accurate measurements.

Consumes a low quiescent current of 100 μA max, ensuring efficiency. Utilizes compact SC70-6 and QFN10 packaging for easy integration. Operates over a temperature range of -40 to 125°C for wide applicability. Designed specifically for current sense amplifier evaluation and development.

Choose this kit for comprehensive evaluation of STMicroelectronics current sensing amplifier solutions, ideal for enhancing performance in electronic components and power management circuits. Browse more Evaluation Kits in the Semiconductor category at EnvMart.
