Texas Instruments 4 Channel USB Capacitive Touch Evaluation Module FDC1004EVM

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4 Channel USB Capacitive Touch Evaluation Module FDC1004EVM

Name: Texas Instruments 4 Channel USB Capacitive Touch Evaluation Module FDC1004EVM
Brand: Texas Instruments
SKU: 380953
Price: 450.87 USD
Availability: InStock



Category Evaluation Kit Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
User interface	Capacitive Touch
Model	FDC1004EVM
Standards/Approvals	RoHS
Kit Classification	Evaluation Module
Kit Name	4 Channel USB

Key Features

The evaluation kit features a breakable PCB design divided into three sections.
Includes a USB to I²C converter utilizing the MSP430F5528 microcontroller.
Contains the FDC1004 4-channel capacitive to digital converter.
The third section is based on a touchless sensor for advanced sensing applications.
Supports interface and evaluation of capacitive touch sensors for development purposes.
This RoHS-compliant module is ideal for sensor interfaces and embedded system development.
Suitable for electronic components, power and connectors, and HMI development tool applications.

Product Description

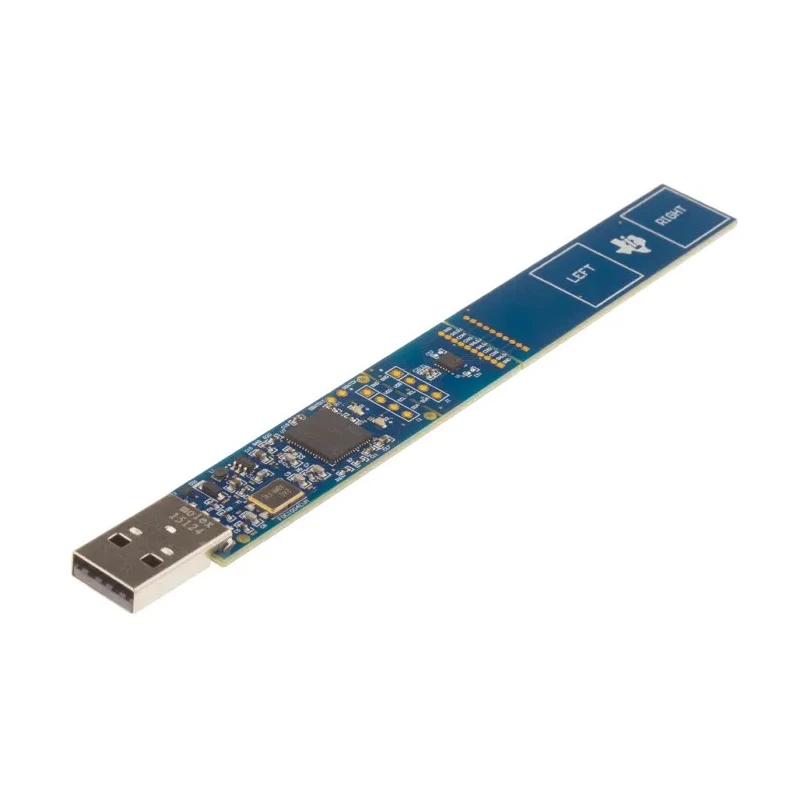

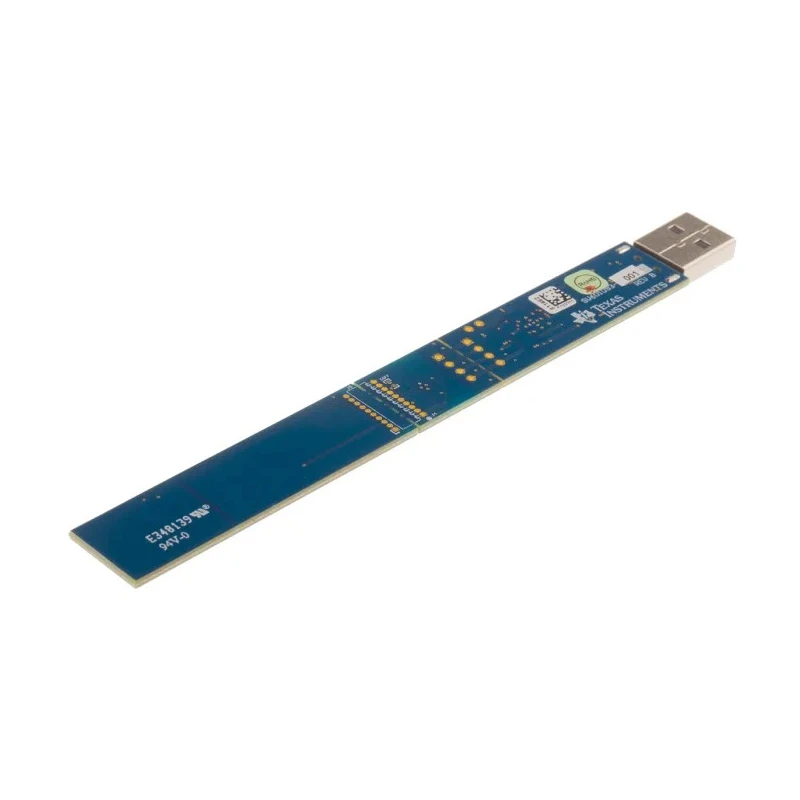

Texas Instruments FDC1004EVM 4 Channel USB Capacitive Touch Evaluation Module is an advanced development kit designed for evaluation of the FDC1004 capacitive to digital converter. This evaluation kit features a modular, breakable PCB constructed in three sections. The first section integrates a USB to I²C converter powered by the MSP430F5528 microcontroller, enabling seamless communication and control via USB.

The second section comprises the FDC1004 4-channel capacitive to digital converter, facilitating precise capacitive sensing capabilities. The third part includes a touchless sensor section, enhancing detection capabilities without physical contact. This configuration allows developers to easily test and prototype capacitive touch interfaces for various applications.

Compliant with RoHS standards, this evaluation module supports design and development in embedded systems, sensor interfaces, and human-machine interface (HMI) development. It is especially suited for electronic component testing, educational development tools such as Raspberry Pi and Arduino projects, and industrial sensor applications.

The kit offers a comprehensive platform for engineers and designers seeking to integrate capacitive touch sensing into their products efficiently. Its USB connectivity and modular design simplify the prototyping and evaluation process.

The evaluation kit features a breakable PCB design divided into three sections. Includes a USB to I²C converter utilizing the MSP430F5528 microcontroller. Contains the FDC1004 4-channel capacitive to digital converter. The third section is based on a touchless sensor for advanced sensing applications.

Supports interface and evaluation of capacitive touch sensors for development purposes. RoHS compliant ensuring environmental safety. Ideal for embedded system and sensor interface development.

This evaluation module is an essential tool for electrical engineers, developers, and educators involved in capacitive sensing technology. Explore more Evaluation Kits and development tools at EnvMart to accelerate your project development.
