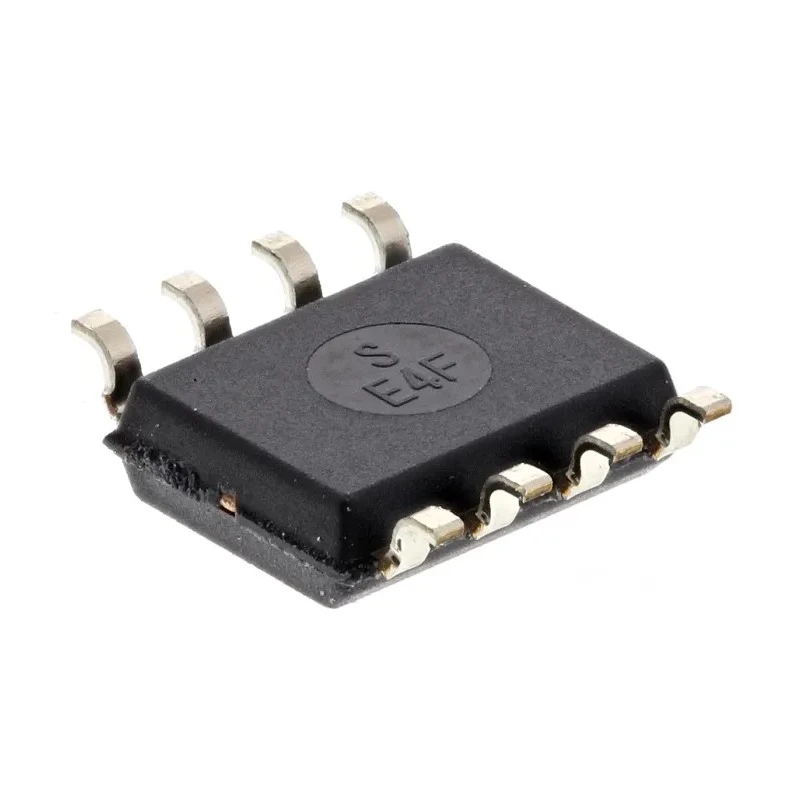

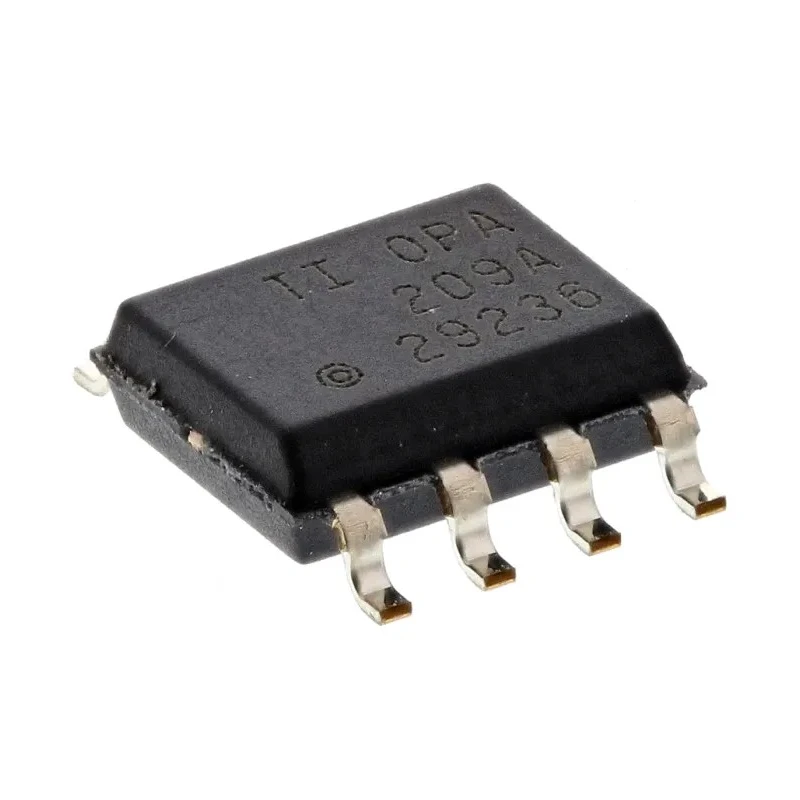

Texas Instruments Operational Amplifier, Surface Mount, SOIC 8-Pin, 18 MHz Gain Bandwidth, 4.5V-18V OPA209AID

Texas Instruments OPA209AID is an 18 MHz gain bandwidth operational amplifier designed for surface mount applications in electronic circuits. It comes in an 8-pin SOIC package with compact dimensions (5 mm length, 4 mm width, 1.5 mm height) making it ideal for high-density PCB designs.

This single-channel amplifier supports supply voltages from 4.5V up to a maximum of 18V and operates reliably in harsh environments with operating temperatures ranging from -40 °C to 125 °C. The device features a fast slew rate of 6.4 V/μs and low input offset voltage of ±150 μV, ensuring precise and efficient signal amplification.

With an input bias current of ±15 nA, the OPA209AID minimizes signal distortion and noise, which is crucial in sensitive electronic instrumentation. It does not comply with automotive standards but suits a wide range of applications in industrial, laboratory, and commercial electronics.

The surface mount SOIC package facilitates automated assembly and efficient space utilization on PCBs. Gain Bandwidth Product: 18 MHz. Supply voltage range: 4.5V to 18V. Slew rate: 6.4 V/μs. Input offset voltage: ±150 μV.

Input bias current: ±15 nA. Operating temperature: -40 °C to 125 °C. Package type: 8-pin SOIC, surface mount.

This Operational Amplifier is widely used in industrial instruments, signal conditioning, measurement systems, and embedded devices requiring high precision and reliable performance.
