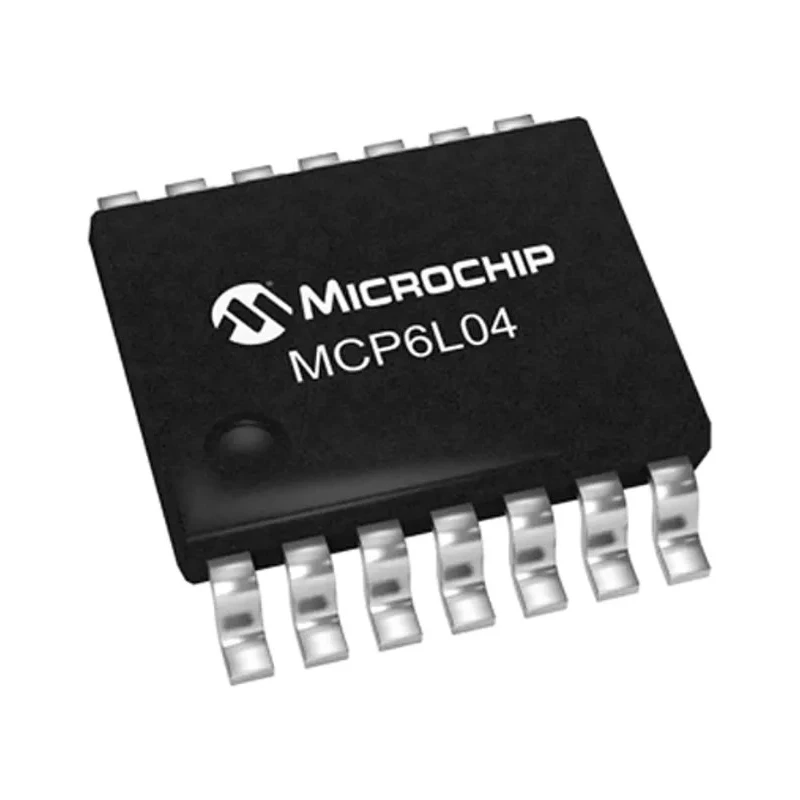

Microchip Operational Amplifier, 1 MHz Gain Bandwidth Product, 14-Pin 6V TSSOP MCP6L04T-E/ST

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier, 1 MHz Gain Bandwidth Product, 14-Pin 6V TSSOP MCP6L04T-E/ST

Name: Microchip Operational Amplifier, 1 MHz Gain Bandwidth Product, 14-Pin 6V TSSOP MCP6L04T-E/ST
Brand: Microchip
SKU: 425762
Price: 0.67 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	Thailand
Brand	Microchip
Height	1.05mm
Length	5.1mm
Model	MCP6L04T-E/ST
Width	4.5mm
Mount Type	Surface
Supply Voltage range	1.8V to 6V
Series	MCP6L04
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Quiescent Current	85 μA (typical)
Standards/Approvals	RoHS
Pin Count	14
Maximum Supply Voltage	6V
Minimum Supply Voltage	1.8V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	2 pA
Vos - Input Offset Voltage	5 mV
Slew Rate	0.6V/μs
Input Offset Current	1 pA
Extended temperature range	-40°C to +125°C

Key Features

The device features rail-to-rail input and output for improved linearity.
It has a quiescent current of 85 μA typical, suitable for low power designs.
Supports an extended operating temperature range from -40°C to +125°C.
Includes four channels with a maximum output current of 30mA.
The package measures 5.1mm length, 4.5mm width, and 1.05mm height.
Input bias current is very low at 2 pA, ensuring high precision applications.
Slew rate of 0.6 V/μs enables moderate response time for general purpose amplification.
The input offset voltage is 5 mV with an input offset current of 1 pA for reliable accuracy.

Product Description

Microchip MCP6L04T-E/ST is a versatile Operational Amplifier designed for general purpose applications requiring a gain bandwidth product of 1 MHz and low voltage operation from 1.8V to 6V. Housed in a compact 14-pin TSSOP surface mount package, this quad-channel amplifier is optimized for low quiescent current consumption (85 μA typical) and rail-to-rail input/output functionality, making it suitable for battery-powered and portable electronic devices.

The MCP6L04 series supports a wide temperature range of -40°C to +125°C, allowing deployment in industrial, automotive (non-automotive certified package), and commercial environments. The device's low input bias current (2 pA) and low input offset voltage (5 mV) make it well-suited for precision analog signal conditioning and sensor interface circuits.

Its output current capability of 30mA and slew rate of 0.6 V/μs provide a balanced performance suitable for typical amplification tasks. The package footprint with dimensions 5.1mm x 4.5mm x 1.05mm ensures ease of integration on standard PCBs.

The MCP6L04T-E/ST op amp is RoHS compliant and manufactured in Thailand, ensuring environmentally friendly production standards. This product is ideal for electronics, instrumentation, and embedded systems applications requiring reliable, low power amplification.

This device features rail-to-rail input and output for improved linearity. It has a quiescent current of 85 μA typical, suitable for low power designs. The amplifier supports an extended operating temperature range from -40°C to +125°C.

It includes four channels with a maximum output current of 30mA. The device package measures 5.1mm in length, 4.5mm in width, and 1.05mm in height. Input bias current is very low at 2 pA, ensuring high precision applications.

Slew rate of 0.6 V/μs enables moderate response time for general purpose amplification. The input offset voltage is 5 mV with an input offset current of 1 pA for reliable accuracy. The product is RoHS compliant and manufactured in Thailand.

Microchip products can be browsed on EnvMart for seamless procurement and integration into electronics and electrical projects and manufacturing processes.
