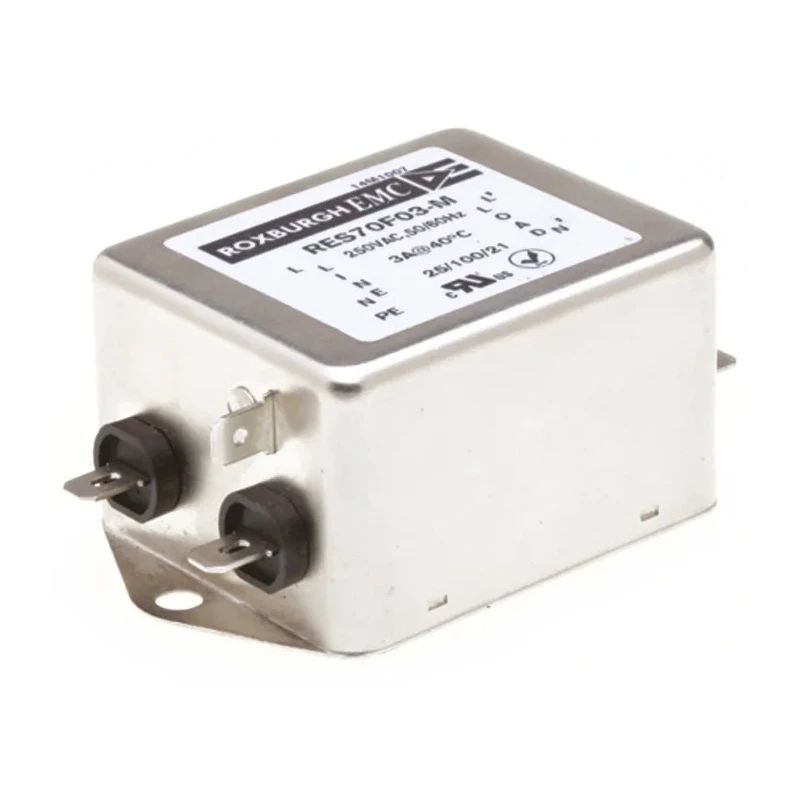

Roxburgh EMC Single Phase Chassis Mount RFI Filter 3A 250V AC 400Hz Fast-On Termination RES70

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 3A 250V AC 400Hz Fast-On Termination RES70

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 3A 250V AC 400Hz Fast-On Termination RES70
Brand: Roxburgh EMC
SKU: 374541
Price: 64.06 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	38mm
Length	85mm
Model	RES70
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES70
Maximum Operating Temperature	100°C
Resistance	470kΩ
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	2μA
Maximum Voltage	250V ac
Inductance	9.8mH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

Multi-stage design provides high differential and common mode attenuation.
Suitable for electrical and electronic equipment with high noise levels.
Compact chassis mount form factor for easy installation.
Operating temperature range from -25°C to 100°C for robust performance.
Leakage current is minimal at 2 μA ensuring low power loss.
Inductance value of 9.8 mH offers effective filtering.
Complies with CSA 22.2 No. 8 and UL 1283 standards.
Fast-On terminals allow quick and secure wiring connections.

Product Description

Roxburgh EMC RES70 RES70F03-M is a high-performance single phase RFI (Radio Frequency Interference) filter designed for chassis mounting applications. It operates at a maximum current of 3 A with a maximum voltage rating of 250 V AC and is particularly efficient at frequencies up to 400 Hz. Fast-On terminations provide convenient and secure electrical connections, facilitating quick installation and maintenance.

This filter features a multi-stage design that offers both high differential and common mode attenuation, effectively reducing electromagnetic noise in various industrial and commercial equipment. The compact size with dimensions of 85 mm length, 51 mm depth, and 38 mm height makes it suitable for installations with space constraints.

Operating reliably between temperatures of -25°C and 100°C, the RES70 series filter maintains performance in demanding environments. The low leakage current of 2 μA minimizes energy loss, contributing to energy efficiency. The inductance of 9.8 mH enhances its filtering capabilities, while its high resistance of 470 kΩ helps in noise attenuation.

The product meets rigorous safety and performance certifications including CSA 22.2 No. 8 and UL 1283, making it ideal for use in electrical and electronic devices, building automation systems, machinery, consumer goods, and office equipment where EMC compliance is critical.

Multi-stage construction with high differential and common mode noise attenuation. Fast-On termination for easy wiring and installation. Compact chassis mount design suitable for space constrained applications. Wide operational temperature range from -25°C to 100°C for versatile use.

Compliance with international safety and EMC standards ensures reliability. Minimal leakage current reduces energy losses during operation. Effective inductance and resistance values for superior filtering performance.

This RFI Filter is manufactured in India and is part of the RES70 series by Roxburgh EMC, designed to deliver professional-grade electromagnetic noise suppression. Its applications span across industries including industrial machinery, electronic data processing equipment, consumer electronics, and HVAC systems.
