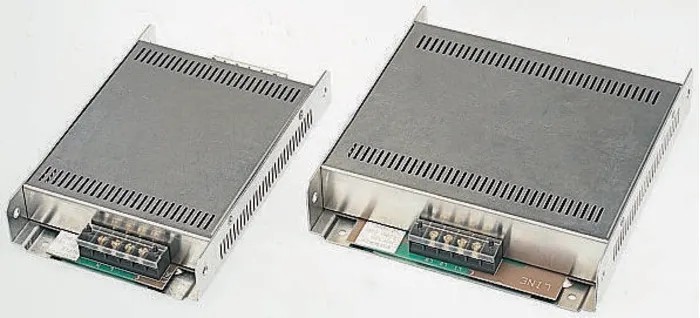

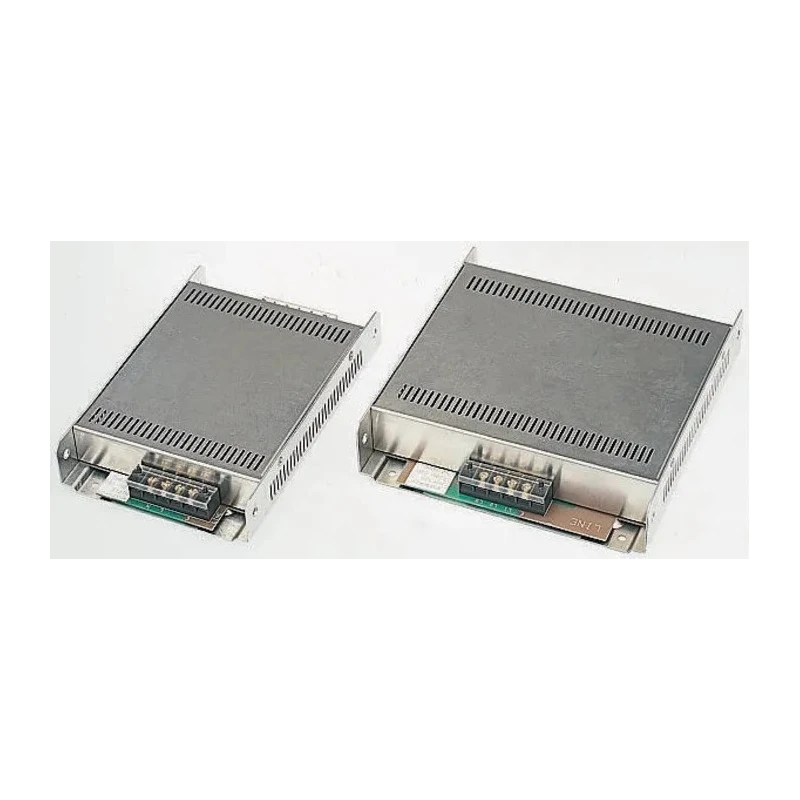

Roxburgh EMC Single Phase Flange EMI Filter 10A 240V AC 60Hz Screw Termination MIF10

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Flange EMI Filter 10A 240V AC 60Hz Screw Termination MIF10

Name: Roxburgh EMC Single Phase Flange EMI Filter 10A 240V AC 60Hz Screw Termination MIF10
Brand: Roxburgh EMC
SKU: 424578
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Roxburgh EMC Condition New

Specifications

Country of Origin	United Kingdom
Brand	Roxburgh EMC
Height	43.5mm
Length	214mm
Model	MIF10
Depth	145mm
Mount Type	Flange
Operating Frequency	60Hz
Series	MIF
Maximum Operating Temperature	85°C
Resistance	13.5mΩ
Capacitance	3.3μF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	45mA
Maximum Voltage	240V ac
Inductance	10.3mH
Standards/Approvals	UL1283
Termination Style	Screw
Power Loss	1.35W

Key Features

Designed for motor inverter drives and industrial applications.
Multi-stage filter ensures effective EMI suppression.
Compact flange mounting minimizes panel space usage.
Finger proof terminals for safe operation.
Capacitance of 3.3μF and inductance of 10.3mH for reliable performance.
Wide operating temperature range from -25°C to 85°C.
Low leakage current of 45mA to reduce power loss.
Complies with UL1283 standards for safety and quality.

Product Description

Roxburgh EMC MIF10 is a single phase flange EMI filter designed for industrial motor inverter drives, delivering up to 10A maximum current at 240V AC and 60Hz frequency. This filter is constructed to meet the rigorous EMC requirements defined by EN55022B, providing multistage noise suppression to maintain compliance in sensitive electronics environments.

The filter employs screw termination for secure electrical connections and flange mounting options that save panel space while ensuring robust installation. Roxburgh EMC MIF series filters are known for their industrial reliability and longevity.

Capacitance of 3.3μF combined with an inductance of 10.3mH provides effective noise attenuation, while the low leakage current of 45mA minimizes power losses and thermal stress during operation.

Operating over a wide temperature range from -25°C up to 85°C, this filter suits diverse industrial environments. Its compact physical dimensions (214mm length, 145mm depth, 43.5mm height) facilitate integration in equipment with tight space constraints.

The product features finger-proof terminals enhancing safety during installation and maintenance. It complies with UL1283 standards, demonstrating its certified safety and electromagnetic compatibility performance.

Designed for motor inverter drives in industrial manufacturing and HVAC systems. Ensures compliance with stringent EMC limits for electronic equipment. Flexible flange mounting reduces required panel footprint. Durable construction suitable for harsh operating environments.

Low resistance of 13.5mΩ reduces energy dissipation and heat generation. Power loss is rated at a minimal 1.35W, facilitating efficient operation. Industrial applications include power line filtering and electromagnetic interference mitigation.

United Kingdom origin ensures quality manufacturing standards.

Choose Roxburgh EMC MIF10 EMI filters for reliable, industry-standard noise suppression solutions. Browse EnvMart's extensive range of EMI filters for diverse electronic and electrical system needs.
