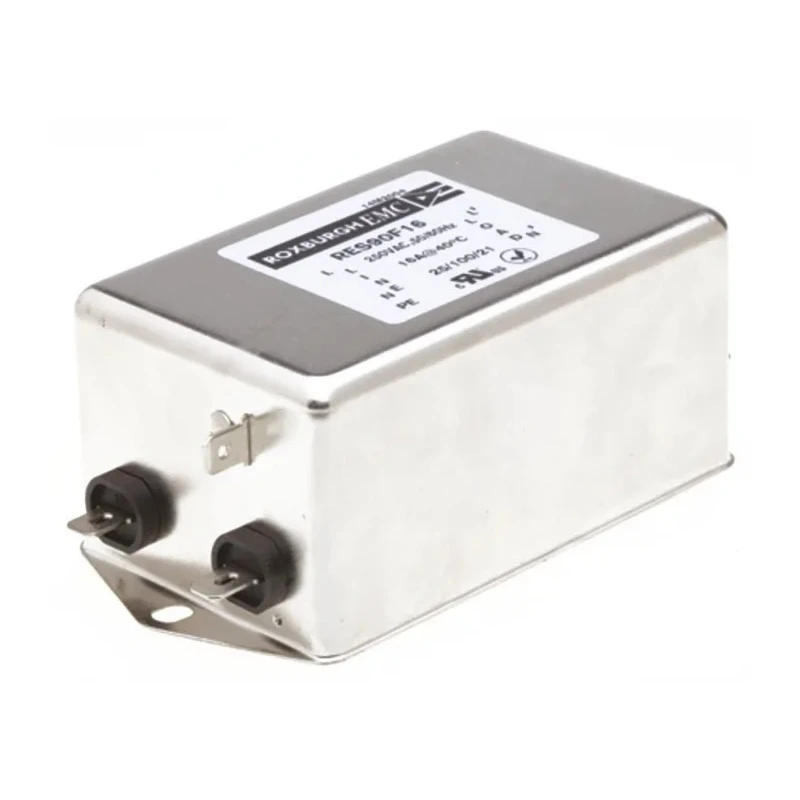

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 60Hz Fast-On Termination RES90

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 60Hz Fast-On Termination RES90

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 60Hz Fast-On Termination RES90
Brand: Roxburgh EMC
SKU: 374539
Price: 86.17 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	45mm
Length	115mm
Model	RES90
Depth	57mm
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	RES90
Maximum Operating Temperature	100°C
Resistance	220kΩ
Capacitance	22nF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	1.02mA
Maximum Voltage	250V ac
Inductance	8mH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

Designed for high differential and common mode noise attenuation.
Compact chassis mount with fast-on termination style for quick installation.
Suitable for electrical and electronic equipment requiring effective EMI filtering.
Operating temperature range from -25°C to 100°C for versatile environments.
Leakage current rated at 1.02mA ensures safety and regulatory compliance.
Capacitance of 22nF and inductance of 8mH for effective noise suppression.
Meets standards CSA 22.2 No. 8 and UL 1283 for quality assurance.

Product Description

Roxburgh EMC RES90F16 is a high-performance single phase RFI filter designed for chassis mounting with Fast-On termination. This device supports a maximum current of 16 amps and voltage of 250V AC at an operating frequency of 60Hz. It is optimized for applications subjected to significant electromagnetic noise, providing excellent attenuation of both differential and common mode interference, ensuring reliable operation of sensitive electronic equipment.

The RES90 series filters are compact in design with dimensions of 115mm (length) x 57mm (depth) x 45mm (height), making them ideal for space-constrained installations. Equipped with a capacitance of 22nF and inductance of 8mH, this filter effectively reduces noise in a variety of industrial and commercial equipment environments including consumer electronics, machinery, building automation, and data communication equipment.

Operating temperature ranges from -25°C to 100°C, allowing use in demanding environmental conditions. It features a low leakage current (1.02mA) which is particularly valuable in medical and precision applications. Termination is Fast-On style for ease of installation on chassis mount setups.

Quality and safety standards include CSA 22.2 No. 8 and UL 1283 approvals, ensuring compliance with international regulatory requirements. This multi-stage EMC filter is suitable for various industrial, laboratory, and commercial electrical and electronic systems aiming to minimize electromagnetic interference and maintain equipment integrity.

High differential and common mode attenuation for noise suppression. Fast-On termination for secure and efficient wiring. Compact chassis mount design. Wide operating temperature range suitable for harsh environments. Low leakage current for enhanced safety.

Capacitance 22nF and inductance 8mH for effective RFI filtering. Compliance with CSA and UL standards. Applicable for industrial, commercial, laboratory, and data processing equipment. Explore more EMC and RFI Filters to ensure optimal noise management in your installations at EnvMart.
