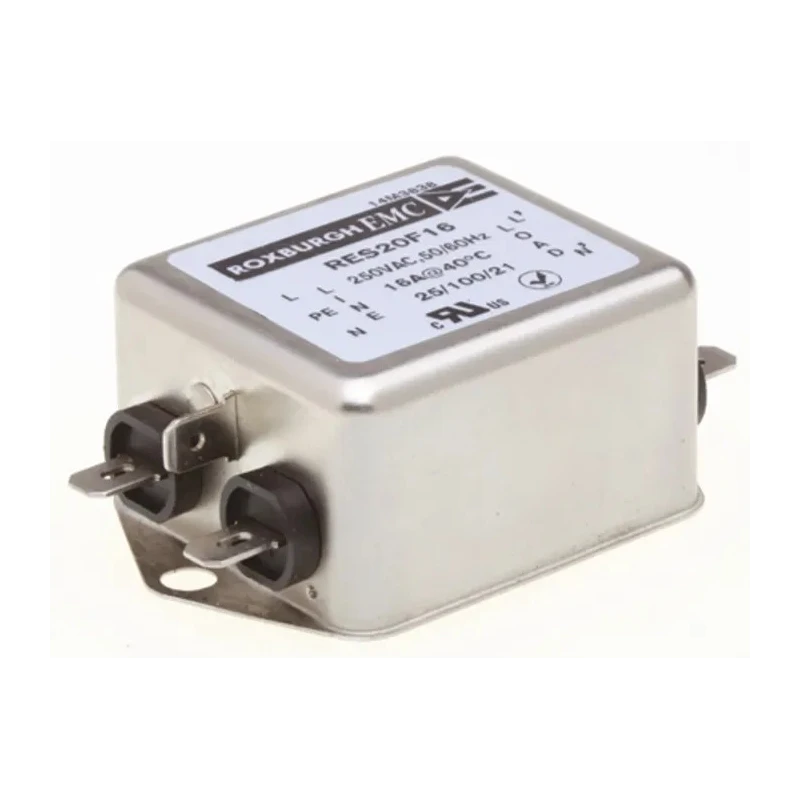

Roxburgh EMC Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On Single Phase RES20

Roxburgh EMC RES20 RES20F16 chassis mount RFI Filter is a high-performance single phase electronic component designed for filtering radio frequency interference in industrial, commercial, and household electrical equipment. Rated for 16A maximum current at 250V AC and operating frequency of up to 400Hz, this filter offers reliable suppression of conducted RFI, enhancing the electromagnetic compatibility of devices.

The filter features a compact chassis mount form factor with fast-on termination style, facilitating quick and secure installation in various applications including general purpose electrical filtering, building automation, electronic data processing, office automation, and machinery equipment. The robust design ensures operation in temperature ranges from -25°C to 100°C.

With a capacitance of 300nF and inductance of 650μH, the filter effectively attenuates high-frequency noise while maintaining a minimal leakage current of 740μA. Resistance is low at 1mΩ improving efficiency and reducing power loss. The filter complies with rigorous CSA 22.2 No. 8 and UL 1283 approvals for safety and quality assurance.

Dimensional specifications measure 71mm in length, 45mm in depth, and 29mm in height, making this an ideal component for integration into compact electronic and electrical assemblies.

Provides superior attenuation of conducted RFI for single phase power lines. Compact chassis mount design allows for convenient mounting in various equipment. Fast-on termination style supports quick connection and maintenance.

Rated for 16A current and 250V AC voltage at 400Hz frequency operation. Ensures device and system safety with a low leakage current of 740μA. Wide temperature range from -25°C to 100°C for versatile application environments.

Complies with CSA 22.2 No. 8 and UL 1283 standards for quality assurance. Ideal for industrial, laboratory, commercial, and residential EMI filtering needs. Dimensions optimized for integration into compact chassis and enclosures.

Manufactured in India ensuring local quality standards compliance. Explore more high-quality EMI filters and power line filters in the Electronics Components category at EnvMart.
