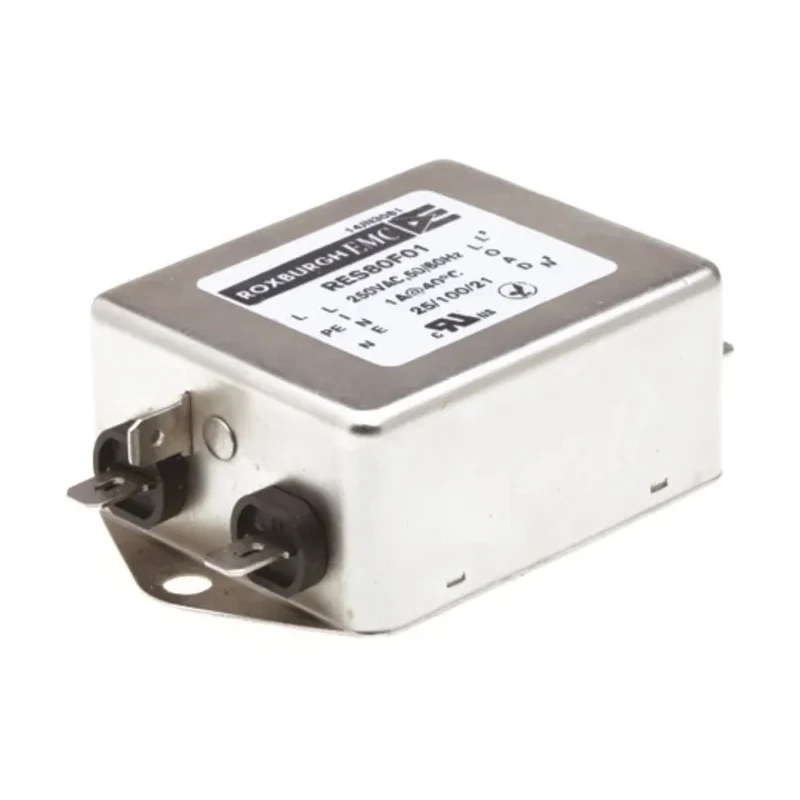

Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 400Hz Fast-On Termination RES80

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 400Hz Fast-On Termination RES80

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 400Hz Fast-On Termination RES80
Brand: Roxburgh EMC
SKU: 374540
Price: 77.04 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	30mm
Length	85mm
Model	RES80
Depth	52mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES80
Maximum Operating Temperature	100°C
Resistance	1mΩ
Capacitance	660nF
Minimum Operating Temperature	-25°C
Maximum Current	1A
Number of Phases	1
Leakage Current	730μA
Maximum Voltage	250V ac
Inductance	22.4mH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

The filter supports a maximum current of 1 Amp.
Operates up to 250 volts AC and 400 Hz frequency.
Features a compact chassis mount design for quick installation.
Uses fast-on terminations ensuring easy connection.
Includes multi-stage filtering for high differential and common mode noise attenuation.
Suitable for electrical and electronic equipment with high noise environments.
Capacitance of 660nF and inductance of 22.4mH enable effective EMI suppression.
Leakage current is low at 730 microamps, with a resistance of 1 milliohm.

Product Description

Roxburgh EMC RES80 series single phase RFI Filter (model RES80F01) is designed for chassis mount applications requiring effective EMI and RFI suppression. It is rated for 1 Amp current, 250V AC, and operates efficiently at 400 Hz frequency.

This filter features multi-stage filtering providing high differential and common mode attenuation, ideal for use where drives and other industrial electrical equipment produce significant noise.

With a capacitance of 660nF and inductance of 22.4mH, the filter suppresses EMI signals effectively while maintaining a low leakage current of 730 microamps and resistance of 1 milliohm.

The robust chassis mount design allows fast and secure installation using fast-on termination style connectors, making it suitable for various industrial and commercial electronics.

Operating temperature ranges from -25°C up to 100°C, offering reliable performance in diverse environmental conditions. Physical dimensions of 85mm length, 52mm depth, and 30mm height ensure compactness without compromising functionality.

The filter supports a maximum current of 1 Amp. Reliable 250V AC maximum voltage rating. Multi-stage high differential and common mode attenuation for EMI/RFI noise suppression. Compact chassis mount format with fast-on terminations for easy installation.

Wide operating temperature range of -25 to 100°C. Low leakage current of 730μA and low resistance of 1mΩ. Capacitance of 660nF and inductance of 22.4mH facilitate effective filtering. Designed for use in electrical, electronic, and communication equipment with high noise levels.

Common applications include industrial machinery, office automation, building automation, and household electronic equipment where EMI noise filtering is essential. This product complies with CSA 22.2 No. 8 and UL 1283 standards and is made in India.
