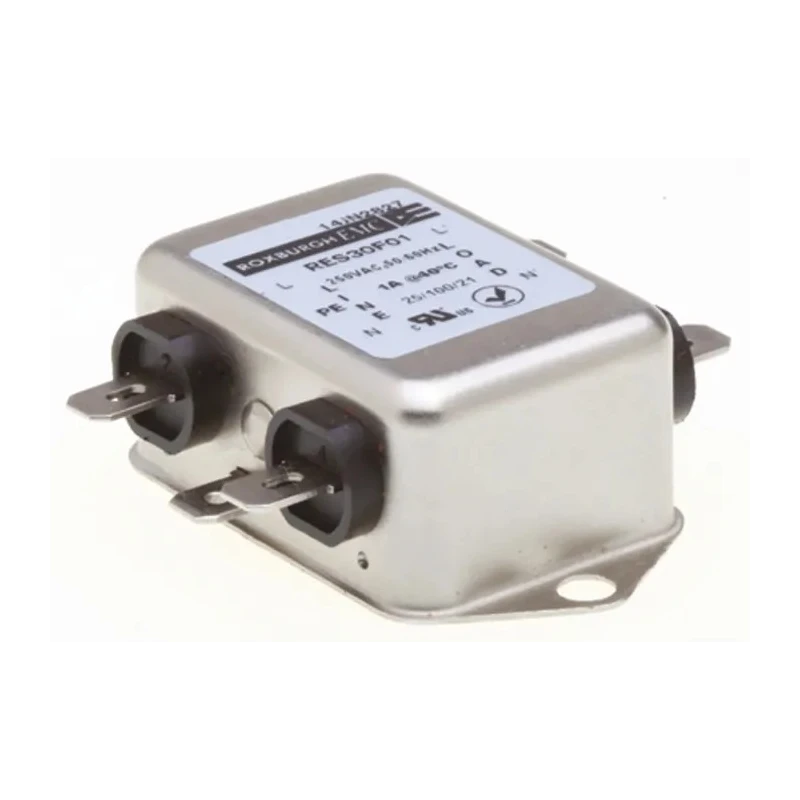

Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 60Hz Fast-On Termination RES30

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 60Hz Fast-On Termination RES30

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 1A 250V AC 60Hz Fast-On Termination RES30
Brand: Roxburgh EMC
SKU: 374538
Price: 38 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	22mm
Length	62mm
Model	RES30
Depth	34.3mm
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	RES30
Maximum Operating Temperature	85°C
Resistance	1mΩ
Capacitance	440nF
Minimum Operating Temperature	-25°C
Maximum Current	1A
Number of Phases	1
Leakage Current	340μA
Maximum Voltage	250V ac
Inductance	20mH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

Designed for single phase 1 Amp current handling at 250V AC voltage.
Chassis mount type with fast-on termination simplifying mounting and electrical connection.
Operating frequency of 60Hz suitable for standard power line filtering applications.
Low leakage current of 340μA ideal for sensitive electronic equipment.
Operates reliably from -25°C up to 85°C ambient temperatures.
High inductance of 20mH and capacitance of 440nF ensuring effective noise attenuation.
Complies with CSA 22.2 No. 8 and UL 1283 standards for safety and performance.
Suitable for filtering in electrical, electronic, consumer, and medical equipment.

Product Description

Roxburgh EMC RES30 single phase chassis mount RFI filter model RES30F01 supports a maximum current of 1 Amp and a voltage rating of 250V AC at 60Hz frequency. Designed with fast-on termination style and chassis mount type, it ensures quick and secure installation in diverse electronic and electrical systems.

This filter offers a capacitance of 440nF and inductance of 20mH, which contribute to excellent high-frequency noise attenuation and high differential mode attenuation necessary for sensitive equipment protection.

With an operating temperature range from -25°C to 85°C, it is suitable for use in industrial, commercial, and medical applications requiring low leakage current performance (340μA). The compact physical size of 62mm length by 34.3mm depth and 22mm height allows easy integration into limited space environments.

It meets recognized standards CSA 22.2 No.8 and UL 1283, ensuring compliance with safety and electromagnetic compatibility requirements. Typical use cases include noise filtering in electrical and electronic consumer goods, building automation, machinery, data processing equipment, and office automation.

The Roxburgh EMC RES30 series is known for its high performance and compact design, ideal for general purpose filtering demands in one phase systems. Designed for single phase 1 Amp current handling at 250V AC voltage. Chassis mount type with fast-on termination simplifying mounting and electrical connection.

Operating frequency of 60Hz suitable for standard power line filtering applications. Compact dimensions: 62mm length, 34.3mm depth, and 22mm height for space-saving installation. Low leakage current of 340μA ideal for sensitive electronic equipment.

Operates reliably from -25°C up to 85°C ambient temperatures. High inductance of 20mH and capacitance of 440nF ensuring effective noise attenuation. Complies with CSA 22.2 No. 8 and UL 1283 standards for safety and performance.

Suitable for filtering in electrical, electronic, consumer, and medical equipment. Manufactured in India ensuring quality assurance and reliability. Explore the Roxburgh EMC product range at EnvMart for reliable EMI and RFI Filtering components to enhance your industrial and commercial electronic system performance.
