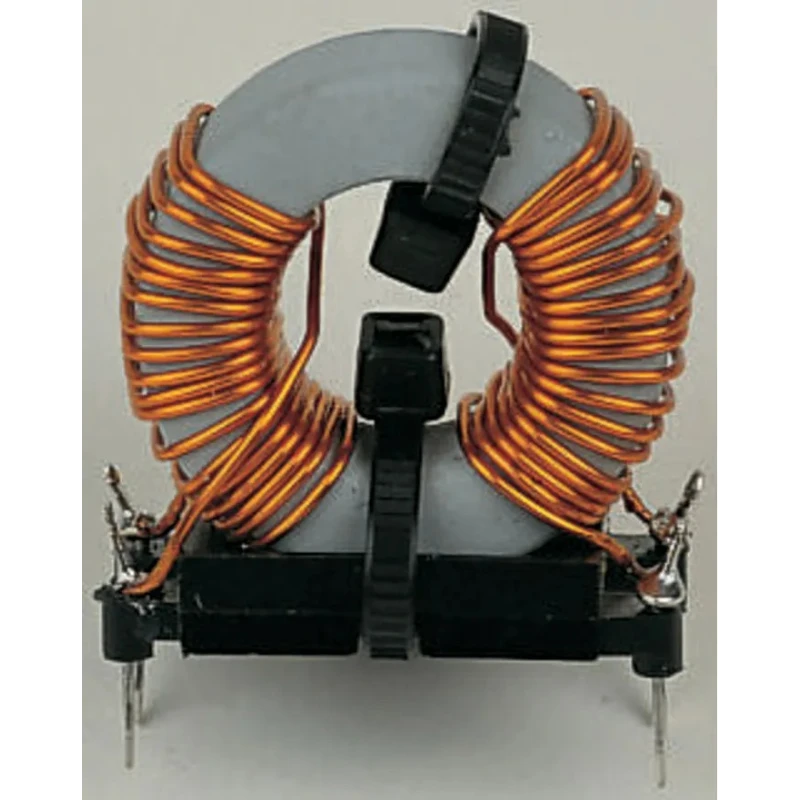

Roxburgh EMC 3.2 mH Ferrite Common Mode Choke, 3 A Idc, 71 mΩ Rdc, 250V AC, Radial Lead CMV30
Specifications
| Country of Origin | India |
|---|---|
| Brand | Roxburgh EMC |
| Height | 31mm |
| Length | 37.5mm |
| Model | CMV30 |
| Depth | 17.4mm |
| Mount Type | Radial |
| Series | CMV |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -25°C |
| Test Frequency | 440Hz |
| Core Material | Ferrite |
| Maximum Voltage | 250V ac |
| Inductance | 3.2mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3A |
| Pin Count | 4 |
| Maximum DC Resistance | 71mΩ |
| Termination Style | Radial Lead |

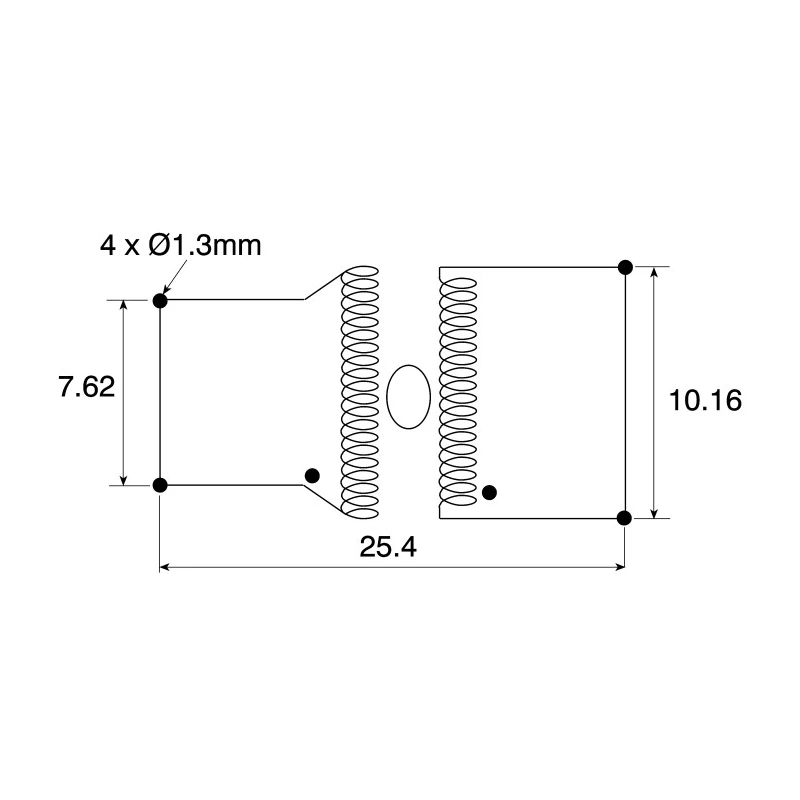

| Lead Pitch | 27.8mm |
| Lead Diameter | 0.38mm |
Key Features
- Features a low DC resistance of 71 milliohms ensuring minimal power loss.
- Compact radial lead mounting style with 4 pins for easy integration.
- Operates reliably within a temperature range of -25°C to 100°C.
- Constructed with ferrite core material for effective electromagnetic interference suppression.
- Tested at a frequency of 440 Hz for stable performance.
- Lead diameter measures 0.38 mm, and the lead pitch is 27.8 mm.
- Compliant with RoHS standards for environmental safety.
Product Description
Roxburgh EMC CMV30 is a 3.2 mH Ferrite Common Mode Choke specifically engineered to suppress electromagnetic interference in electronic circuits. Designed to handle a maximum DC current of 3 A and withstand up to 250V AC, this component offers reliable performance in industrial and commercial electronic applications.
The choke features a ferrite core known for its high magnetic permeability and stability, facilitating effective noise filtering. Its radial lead termination style ensures straightforward PCB mounting and soldering while maintaining mechanical stability.
With a DC resistance of only 71 milliohms, power losses are minimized, improving circuit efficiency. The operating temperature range from -25°C to 100°C supports usage in diverse environmental conditions, making it suitable for industrial electronics, power supplies, and EMI filter modules.
The component's physical dimensions (37.5 mm length, 31 mm height, 17.4 mm depth) and lead pitch of 27.8 mm allow compatibility with a variety of assembly layouts. Additionally, the 0.38 mm lead diameter assures robust electrical connections.
This common mode choke adheres to RoHS environmental safety standards, ensuring it meets regulatory compliance for reduced hazardous substances in electronic products. Features a low DC resistance of 71 milliohms ensuring minimal power loss.
Compact radial lead mounting style with 4 pins for easy integration. Operates reliably within a temperature range of -25°C to 100°C. Constructed with ferrite core material for effective electromagnetic interference suppression.
Compliant with RoHS standards for environmental safety.
This Roxburgh EMC CMV30 common mode choke is ideal for electronics manufacturing, EMI filtering, power supply designs, and repair or upgrade of electronic devices. Browse our Electronics & Electricals category for more high-quality inductors and EMI suppression components.
Explore more products in our Common Mode Chokes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 3.2 mH.
This common mode choke can handle a maximum DC current of 3 A.
It operates reliably within a temperature range of -25°C to 100°C.
The DC resistance of this choke is 71 milliohms, ensuring minimal power loss.
The maximum voltage rating for this model is 250V AC.
The dimensions of this common mode choke are 37.5 mm in length, 31 mm in height, and 17.4 mm in depth.
This model features a radial lead termination style with 4 pins for easy integration into PCB layouts.
The lead diameter is 0.38 mm, and the lead pitch is 27.8 mm.
It is constructed with a ferrite core material, which is effective for electromagnetic interference suppression.
Yes, it is compliant with RoHS standards for environmental safety, ensuring reduced hazardous substances.
This common mode choke was tested at a frequency of 440 Hz for stable performance.
This model is suitable for industrial electronics, power supplies, and EMI filter modules.
