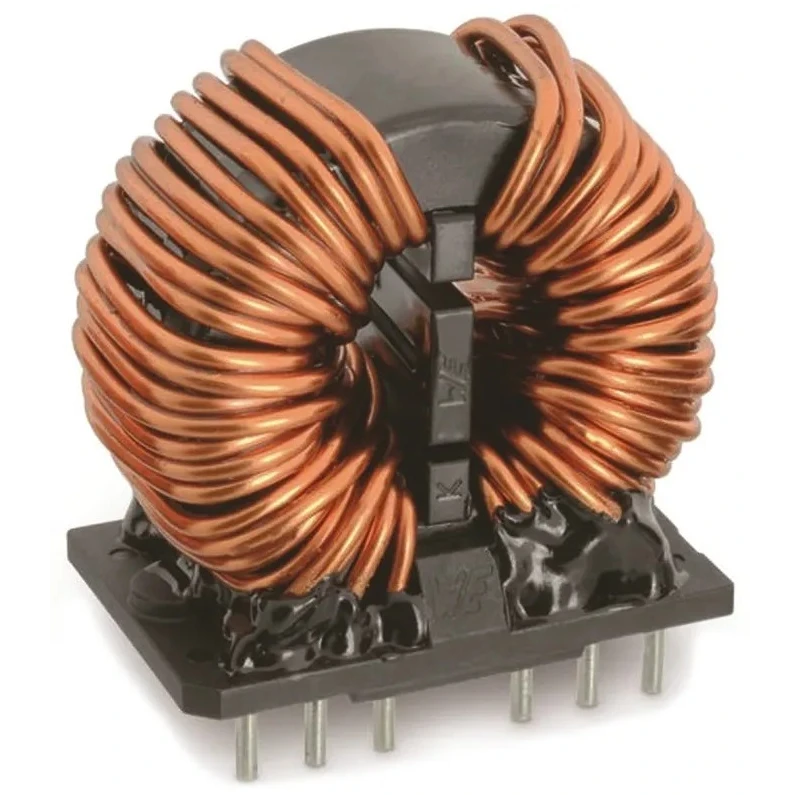

Wurth Elektronik 35 mH Nano Crystal Common Mode Choke 5A Idc Max SRF 300 MHz 90 mΩ Rdc 250V ac WE-CMBNC 7448060535

Wurth Elektronik 7448060535 is a 35 mH Nano Crystal Common Mode Choke engineered for high-frequency EMI noise suppression in electronic circuits. Featuring a nano crystal core material, this choke offers very high permeability and stable inductance values even at elevated temperatures.

The inductors are designed with through hole mounting style and solder terminations, making them suitable for secure PCB attachment. This model supports a maximum DC current of 5 A and a DC resistance of 90 mΩ, enabling efficient operation with low losses.

Its compact dimensions (42 mm diameter, 46 mm height, and 42 mm length) make it suitable for installations where space is limited. The choke operates reliably across a wide temperature range from -40°C to 125°C, ensuring durability in harsh industrial and commercial environments.

The device's maximum self-resonant frequency is 300 MHz, providing broadband suppression capabilities from 1 kHz to 300 MHz, ideal for power electronics, power line input/output filtering, and radio frequency interference suppression in motors and other machinery.

Compliance with standards such as RoHS, REACH, VDE, and ENEC 10 guarantees material safety and environmental compatibility. The product is packaged in trays and cartons to protect it during transportation and storage.

Constructed with high permeability nano crystal core material enabling high and stable inductance. Through hole mounting and solder termination style for secure PCB installation. Wide temperature operating range from -40°C to 125°C for industrial robustness.

Maximum DC current of 5 A with DC resistance of 90 mΩ for efficient current handling. Broad frequency range suppression from 1 kHz to 300 MHz for EMI reduction. Compact dimensions suitable for space-constrained applications.

Complies with RoHS, REACH, VDE, and ENEC 10 standards ensuring quality and safety. Ideal for power electronics, EMI filters, radio interference suppression in motors, and industrial uses.

This Wurth Elektronik common mode choke is a reliable component for EMI filtering applications in industrial, commercial, laboratory, and manufacturing environments. Its nano crystal core technology ensures excellent performance in suppressing common mode noise and enhancing system stability.
