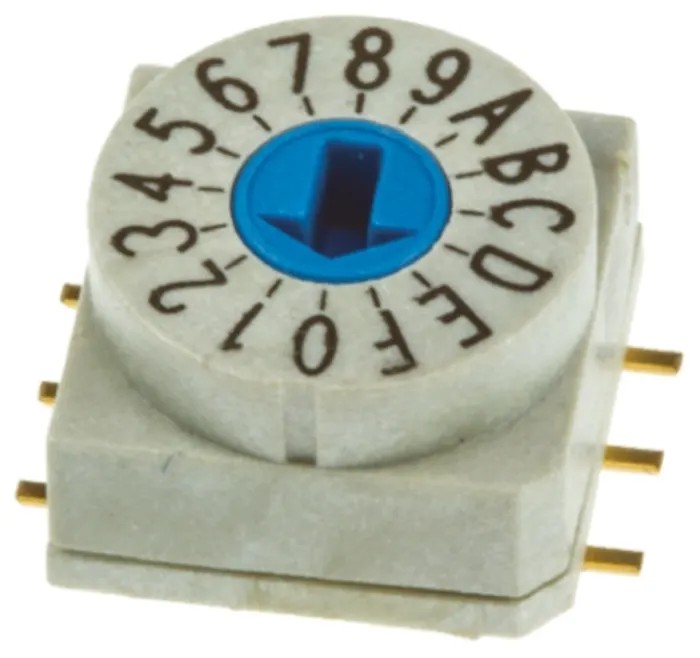

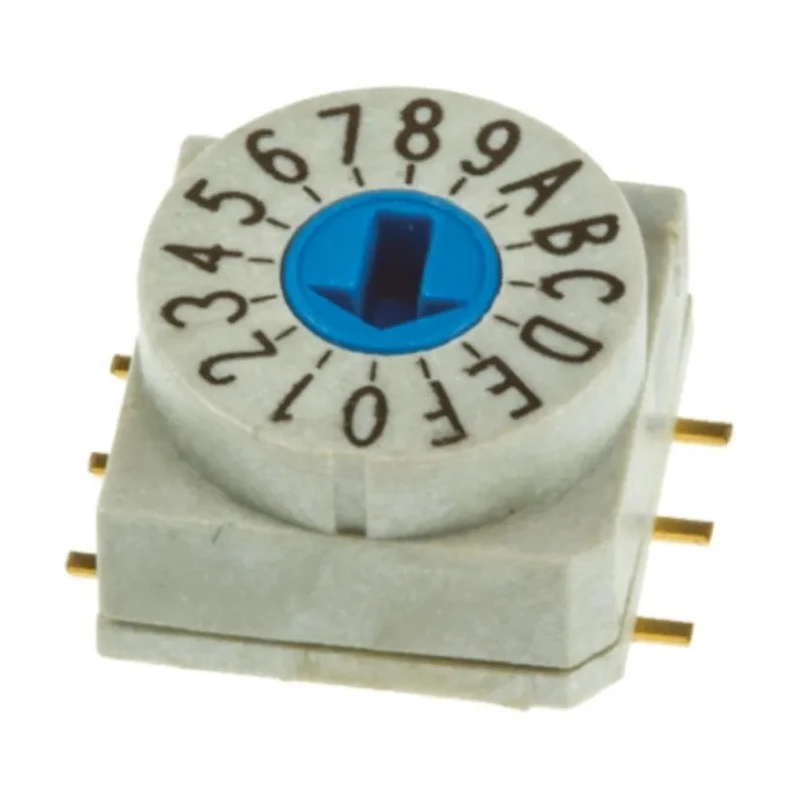

Wurth Elektronik Rotary Coded DIP Switch Surface Mount with Gull Wing Terminals WS-ROSV 428521320817

Wurth Elektronik 428521320817 Rotary Coded DIP Switch is a surface mount component designed with precision and durability in mind, suitable for various electronics and automation applications. The rotary switch features an arrow-shaped actuator that allows effortless and accurate selection of switch positions. Its gold plated contacts enhance electrical conductivity and resist corrosion over long-term use.

This DIP switch supports hot air reflow soldering per JEDEC J-STD 020 standards, ensuring reliable mounting and solder joint integrity on printed circuit boards (PCBs). The gull wing terminal style aligns well with surface mount technology (SMT) processes.

The device operates optimally within a temperature range of -40°C to +85°C, making it suitable for industrial environments with fluctuating temperatures. The standard pin spacing of 2.54 mm between pins and 5.08 mm between rows facilitates integration with common PCB layouts.

Equipped with rotary switch arrow shaped actuator. Gold plated contacts for enhanced performance. Surface mount with gull wing terminals for SMT compatibility. Wide operating temperature range from -40°C to +85°C. Reflow soldering compliant with JEDEC J-STD 020 hot air standard.

Standard footprint with 2.54mm pin spacing and 5.08mm row spacing. For additional support and design resources, Wurth Elektronik provides 3D models, schematics, and footprints compatible with leading PCB design software.
