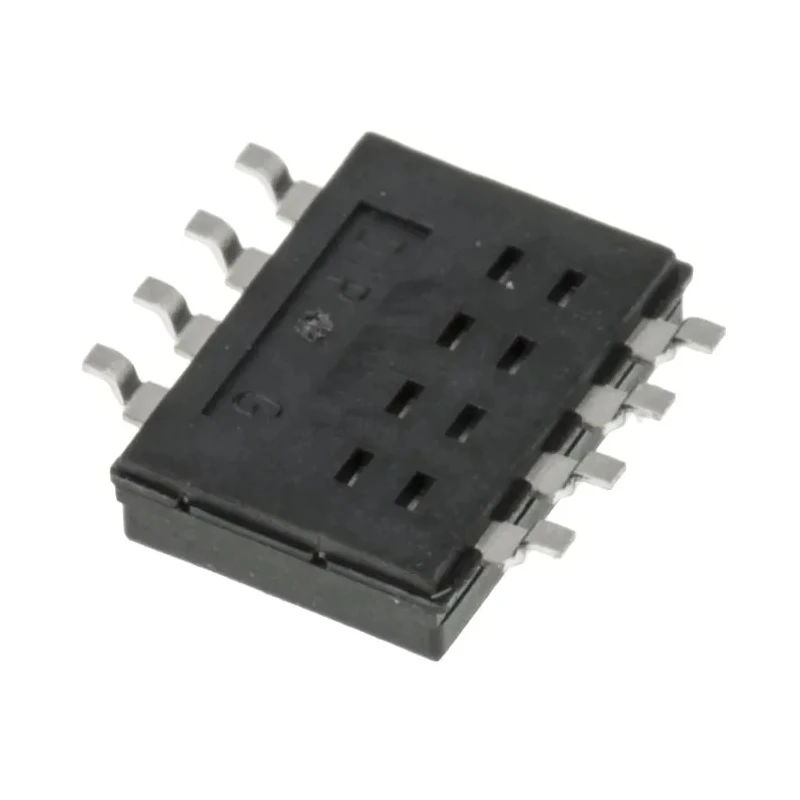

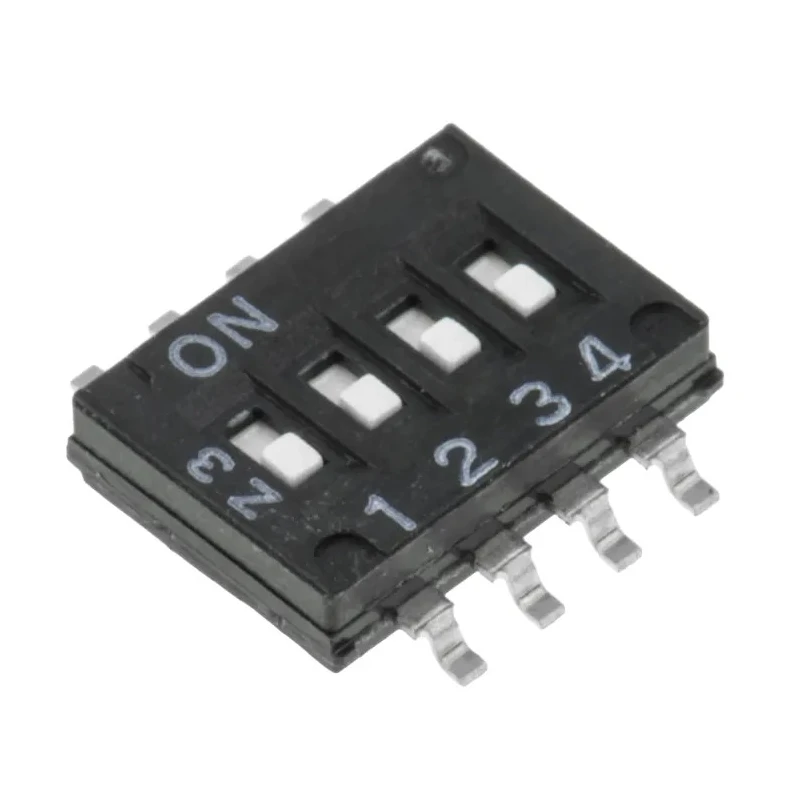

Omron Slide Rotary Coded DIP Switch Surface Mount A6H4101
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6H4101 |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000 operations |
| Omron Slide Rotary Coded DIP Switch Surface MountBrand | Omron |
Key Features
- This switch features a slide actuator type for precise rotary coded switching.
- It is designed for surface mount, allowing easy integration on PCBs.
- Contact resistance is low at 200mΩ, ensuring reliable electrical connections.
- Insulation resistance is a minimum of 100MΩ at 250Vdc for safety.
- The switch provides a mechanical life of 1000 operations for durability.
- Manufactured in China with RoHS compliance for environmental safety.
- The ultra low profile height of only 1.55mm reduces PCB space requirements by 63%.
Product Description
Omron A6H4101 Slide Rotary Coded DIP Switch Surface Mount is an ultra low profile, half pitch rotary coded switch designed for surface mounting on printed circuit boards. Its innovative half pitch design reduces mounting space by 63%, making it ideal for applications where PCB space is at a premium.
The slide actuator type enables precise rotary coded switching functionality. This product exhibits a contact resistance of 200mΩ and an insulation resistance of 100MΩ minimum at 250Vdc, ensuring reliable electrical performance and safety. With a mechanical operational life of 1000 cycles, the switch offers dependable longevity in industrial, electronics, automation, and control systems.
This model is manufactured in China adhering to RoHS compliance directives, supporting environmentally responsible application designs. The low profile height of 1.55mm makes it suitable for compact and high-density electronic assemblies.
The product is prominently used in industrial, automation, and electrical engineering applications where precision and space efficiency are critical. This switch features a slide actuator type for precise rotary coded switching.
Designed for surface mount to enable easy PCB integration. Offers a low contact resistance of 200mΩ ensuring signal integrity. High insulation resistance of 100MΩ at 250Vdc improves safety. Mechanical life rated at 1000 operation cycles provides durability.
Ultra low profile with a height of 1.55mm saves PCB space. RoHS compliant and manufactured in China. Explore our comprehensive category of Rotary Coded DIP Switches for further electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance of this model is a minimum of 100MΩ at 250Vdc, ensuring safety in electrical applications.
The slide actuator type allows for precise rotary coded switching, enhancing the accuracy of the switch's operation.
The contact resistance is low at 200mΩ, which helps ensure reliable electrical connections.
This model has a mechanical life rated at 1000 operations, providing durability for various applications.
The switch has an ultra low profile height of only 1.55mm, which significantly reduces PCB space requirements by 63%.
It is manufactured in China, adhering to RoHS compliance for environmental safety.
The A6H4101 is designed for surface mounting, allowing easy integration on printed circuit boards (PCBs).
This switch is prominently used in industrial, automation, and electrical engineering applications where precision and space efficiency are critical.
The low profile design reduces the mounting space required on PCBs, making it suitable for compact and high-density electronic assemblies.
Its primary purpose is to provide precise rotary coded switching functionality in electronic circuits.
This model is RoHS compliant, supporting environmentally responsible application designs.
The half pitch design reduces the mounting space by 63%, making it ideal for applications where PCB space is limited.
