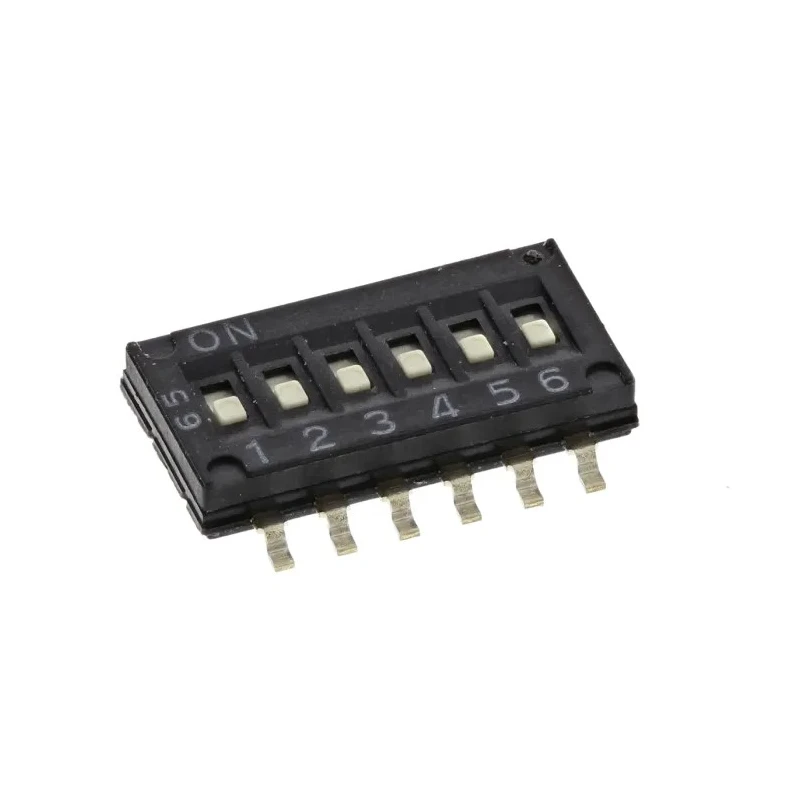

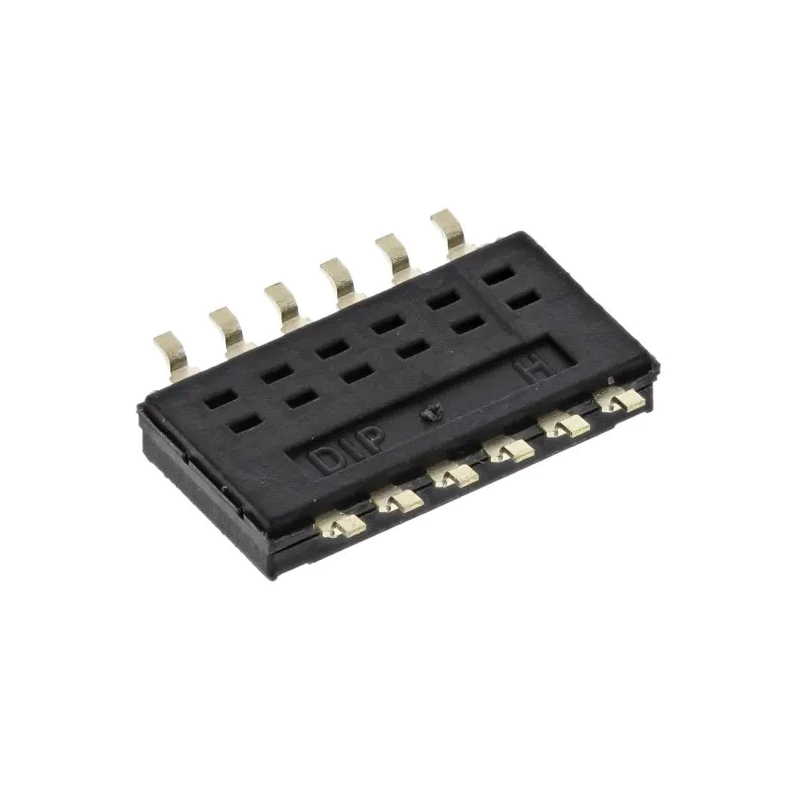

Omron Rotary Coded Surface Mount Slide DIP Switch A6H6101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | A6H6101 |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000 operations |
Key Features
- Features ultra low profile half pitch design reducing mounting space by 63%.
- Surface mount package suitable for compact PCB layouts.
- Contact resistance is low at 200 milliohms for reliable conductivity.
- Insulation resistance rated minimum 100 mega ohms at 250 Vdc for durability.
- Mechanical life up to 1000 operations providing long-term usage.
- Available with or without tape seal for manufacturing flexibility.
- RoHS compliant ensuring environmental safety standards.
- Ideal for use in electrical, automation, and electronic switch applications.
Product Description
Omron A6H6101 Rotary Coded DIP Switch is a surface mount slide type switch designed for industrial and electronics applications requiring small form factor and reliable switching performance.
This product incorporates an ultra low profile half pitch configuration which significantly reduces mounting space by 63%, particularly beneficial for compact printed circuit board designs.
The switch features a low contact resistance of 200 milliohms and a high insulation resistance of 100 mega ohms minimum at 250 Vdc, ensuring electrical performance and safety. With a robust mechanical life rating of 1000 operations, the A6H6101 is suitable for repetitive switching tasks in automation and control systems.
Omron offers this switch with or without tape seal options to accommodate different manufacturing processes. The switch's surface mount design enables automated assembly and improves production efficiency in the manufacturing of electrical devices.
Ultra low profile half pitch design reduces required PCB space by 63%. Surface mount construction allows for automated PCB assembly. 200 milliohm contact resistance ensures reliable electrical connection. 100 mega ohm insulation resistance minimum at 250 Vdc enhances safety.
Rated for 1000 mechanical switch operations for durability. Available with or without tape seal to suit manufacturing needs. RoHS compliant meeting environmental regulations. Applicable in electrical, automation, and electronic switch applications.
This Rotary Coded DIP Switch is typically employed in industrial automation, electronics manufacturing, and electrical control panels where compact and reliable switching solutions are required.
Explore the full range of rotary encoded DIP switches and related components at EnvMart to find complementary products for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance is rated at a minimum of 100 mega ohms at 250 Vdc.
It is rated for up to 1000 mechanical operations, providing durability for repetitive tasks.
This model features a surface mount design, which is suitable for compact PCB layouts.
The contact resistance is low at 200 milliohms, ensuring reliable conductivity.
Yes, the A6H6101 is RoHS compliant, meeting environmental safety standards.
It features a slide actuator type, allowing for easy operation.
The ultra low profile half pitch design reduces mounting space by 63%, which is beneficial for compact PCB designs.
Yes, it is suitable for use in electrical, automation, and electronic switch applications.
Omron offers this switch with or without tape seal options to accommodate different manufacturing processes.
The A6H6101 switch is manufactured in India.
This switch is typically employed in industrial automation, electronics manufacturing, and electrical control panels.
The surface mount design enables automated assembly, which improves production efficiency in the manufacturing of electrical devices.
