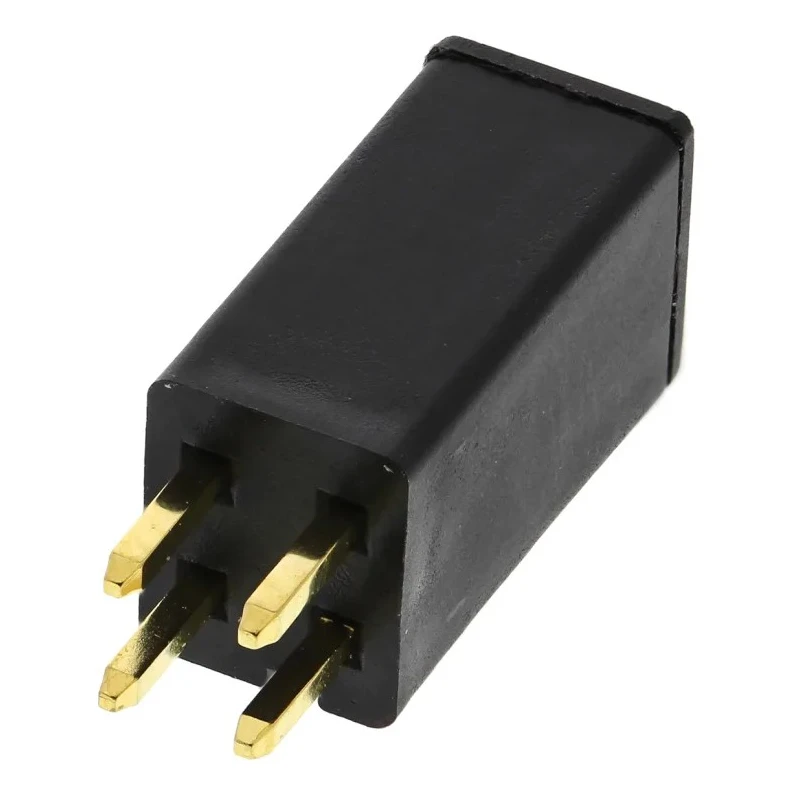

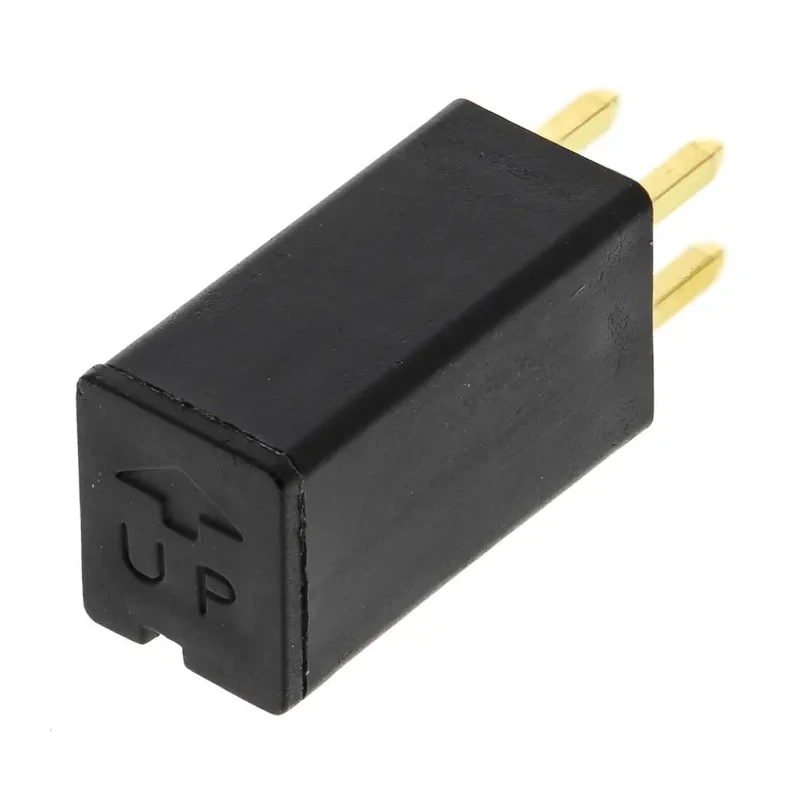

Assemtech 15 ° Horizontal Tilt Switch 25 mA 24 V AC RBS040100

Assemtech RBS040100 is a 15 ° Horizontal Tilt Switch designed for precise tilt and tip-over detection with a differential angle of 15° and maximum current rating of 25 mA at 24 V AC voltage. This tilt/movement switch is engineered for industrial and automation environments, particularly suited for alarm systems and non-hazardous applications requiring dependable tilting detection.

The switch is mounted horizontally and features a gold plated ball and gold plated terminals to guarantee improved life span and stability in electrical contact, minimizing the impact of wear and environmental factors. The construction uses polyamide UL94V-0 housing that offers enhanced durability and flame resistance.

Operating temperature ranges between -25°C and 70°C allow wide deployment under varying climate conditions. The compact size with length 6mm, width 5mm, and depth 14mm offers easy installation in confined spaces typically present in industrial, HVAC, manufacturing, and laboratory automation systems.

With a contact resistance of just 10Ω, it maintains reliable signal integrity. The switch complies with RoHS standards ensuring environmental safety and compliance in manufacturing processes.

Manufactured in Taiwan, Province of China, the RBS040100 model meets international quality standards and is designed to trigger integrated circuits based on tilt movement detection. It has vertical and 90° pin versions but is optimized for horizontal installations here. This tilt switch is ideal for usage in industrial, laboratory, commercial, and automation applications where precise monitoring of orientation or movement is critical.

The switch is designed for horizontal mounting orientation enabling accurate tip-over or tilt detection. It supports a maximum AC and DC voltage rating of 24 V, suitable for low voltage control applications. Low contact resistance of 10Ω ensures reliable switching performance.

Operating temperature range from -25°C to 70°C allows use in various environmental conditions. Compact dimensions of 6mm length, 5mm width, and 14mm depth facilitate integration into tight spaces. Gold plated ball and terminals offer improved life and stability for switching accuracy.

RoHS compliant construction meets environmental and safety standards. Ideal for alarm systems and non-hazardous industrial applications requiring tilt detection. Manufactured in Taiwan, Province of China, ensuring quality assembly.
