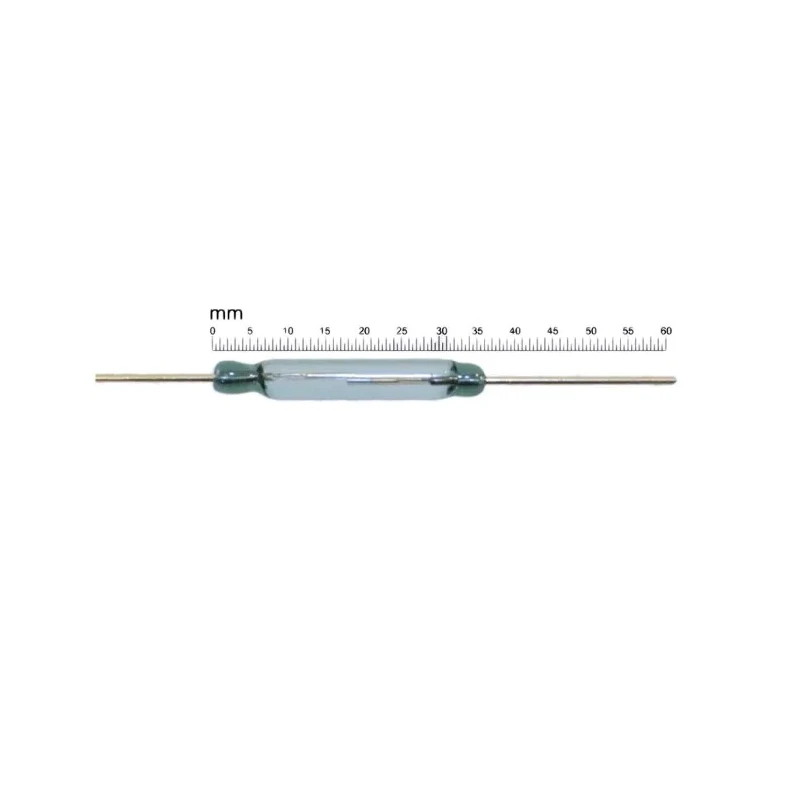

Assemtech CO PCB Reed Switch 1 A 400 V GC1917 (40-60AT)

Free Delivery in India | Lowest Global Shipping Charges

Assemtech CO PCB Reed Switch 1 A 400 V GC1917 (40-60AT)

Name: Assemtech CO PCB Reed Switch 1 A 400 V GC1917 (40-60AT)
Brand: Assemtech
SKU: 387455
Price: 1059.68 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	36mm
Model	GC1917 (40-60AT)
Width	5.6mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	CO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Power	60W
Standards/Approvals	ISO
Maximum Switching Voltage	400V
Maximum Release Time	0.15ms
Operating Time Including Bounce	0.5ms
AT Value Range	40 to 60 AT

Key Features

The switch features CO contact configuration with rhodium-plated contacts for enhanced conductivity.
It offers a maximum switching power of 60 watts and low contact resistance of 100 milliohms.
The device has fast response times including maximum release time of 0.15 milliseconds and operating time including bounce of 0.5 milliseconds.
It operates reliably over a temperature range from -40°C to 125°C for use in industrial and electrical applications.
The AT value sensitivity range is from 40 to 60 AT, making it suitable for magnetic actuation in various circuits.
Designed for PCB mounting, it has wire terminals with dimensions of 36 mm length and 5.6 mm width.
ISO standards compliance and Belgian country of origin ensure quality and performance reliability.

Product Description

Assemtech GC1917 (40-60AT) PCB Reed Switch is a precision hermetically sealed switch featuring form A and C (SPNO and SPCO) contact types. It is designed for use in printed circuit boards where reliable magnetic switching is required with a maximum current of 1 ampere and voltage rating up to 400 volts.

This reed switch has rhodium-plated contacts to ensure excellent conductivity and long operational life, capable of mechanical life exceeding 108 operations. The contact resistance is minimal at 100 milliohms, making it suitable for sensitive electronic and electrical control circuits.

It provides swift switching actions with a maximum release time of 0.15 milliseconds and operating time including bounce within 0.5 milliseconds. The wide AT value range of 40 to 60 AT affords flexibility in actuation strength, making it compatible with various magnetic actuation schemes.

Constructed for PCB mounting with wire terminals, the switch measures 36 mm in length and 5.6 mm in width, compatible with general electronic assembly requirements. It operates efficiently across a temperature span from -40°C to 125°C, suitable for demanding industrial, automation, and control system environments.

The product adheres to ISO standards and originates from Belgium, ensuring stringent manufacturing and quality assurance protocols are met. CO contact configuration for reliable switching. Rhodium contacts for enhanced conductivity and durability.

High switching power capacity of 60 watts. Fast response and release times for precise control. Wide temperature operating range from -40°C to 125°C. Compact dimensions optimized for PCB mounting. Extensive mechanical life suitable for repetitive switching applications.

This reed switch is ideal for industrial, automation, and electronic applications requiring reliable magnetic switching on PCB assemblies. Explore more products in the Reed Switch category for comprehensive solutions on EnvMart.
