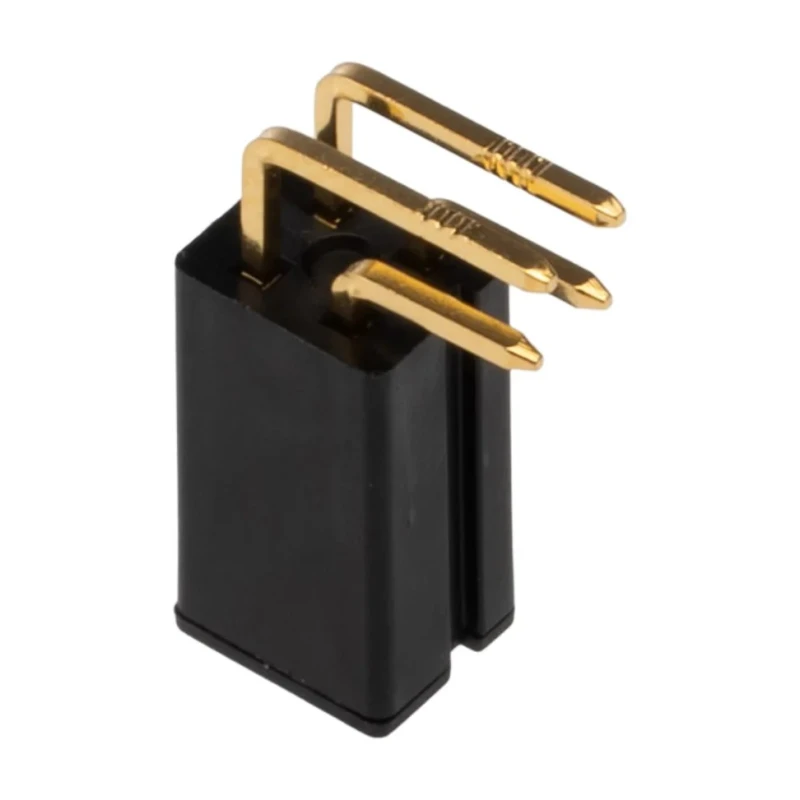

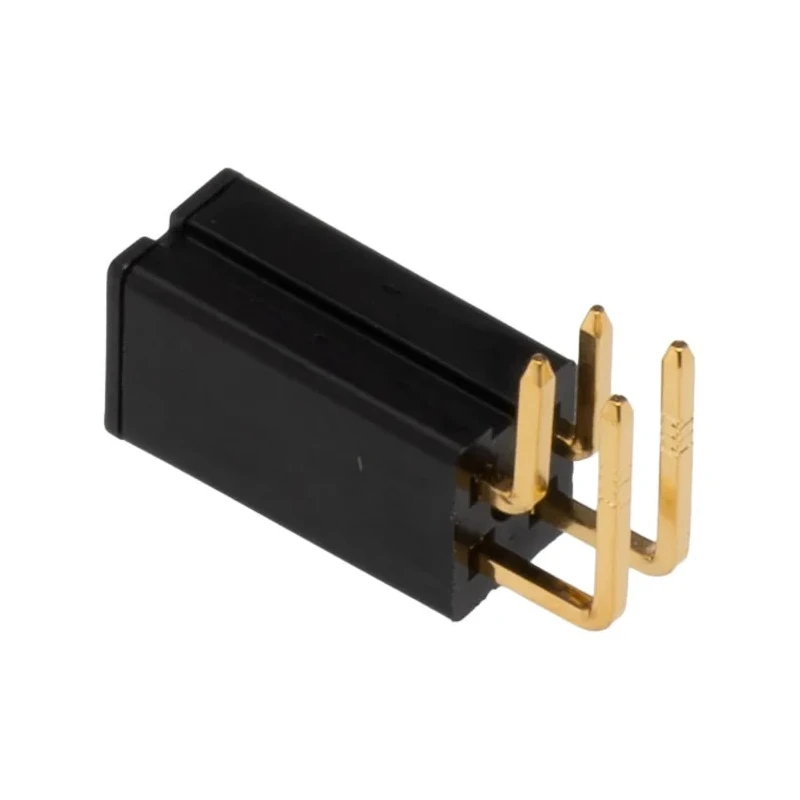

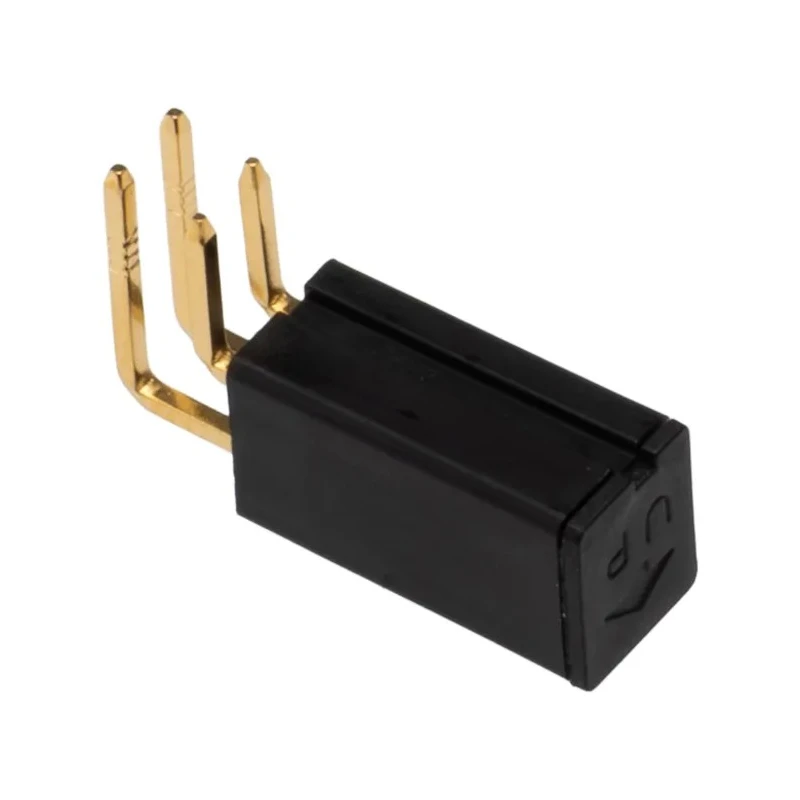

Assemtech 15° Horizontal Tilt Switch, 25mA Current, 24V AC Voltage RBS040200

Assemtech RBS040200 is a precision 15° horizontal tilt switch engineered to detect tilt or tip-over movements with high reliability. It supports a maximum current of 25mA and operates efficiently at 24V AC and DC voltages, making it ideal for sensitive alarm and control circuits in industrial automation.

Mounted in a horizontal orientation, this compact device measures 6mm in length, 11mm in depth, and 5mm in width. The polyamide UL94V-0 housing ensures flame retardancy, while gold plated contacts and terminals provide excellent electrical stability and longevity.

Operating temperature ranges from -25°C to 70°C, allowing use in diverse environments. The device’s 10Ω contact resistance contributes to consistent performance without signal loss.

Typical applications include integration into alarm systems, safety mechanism triggers, and non-hazardous position detection in commercial and industrial electrical setup. Its small form factor and robust construction suit various automation projects needing accurate tilt actuation.

This tilt switch operates in a horizontal orientation for accurate movement detection. Maximum current rating is 25mA, ensuring safe operation in control circuits. Compatible with both AC and DC voltages up to 24V. The contact resistance is minimized at 10 ohms for stable signal transmission.

Operates reliably within a temperature range of -25°C to 70°C. Compact dimensions measure 6mm length, 11mm depth, and 5mm width for easy integration. Constructed in a polyamide UL94V-0 housing with gold plated contacts for longevity.

Suited for alarm and non-hazardous application uses within industrial and automation systems. Rated RoHS compliant and manufactured in Taiwan, Province Of China, this Tilt Switch meets quality and environmental standards.

Explore this and other high-quality switch components at EnvMart for your industrial and automation project needs.
