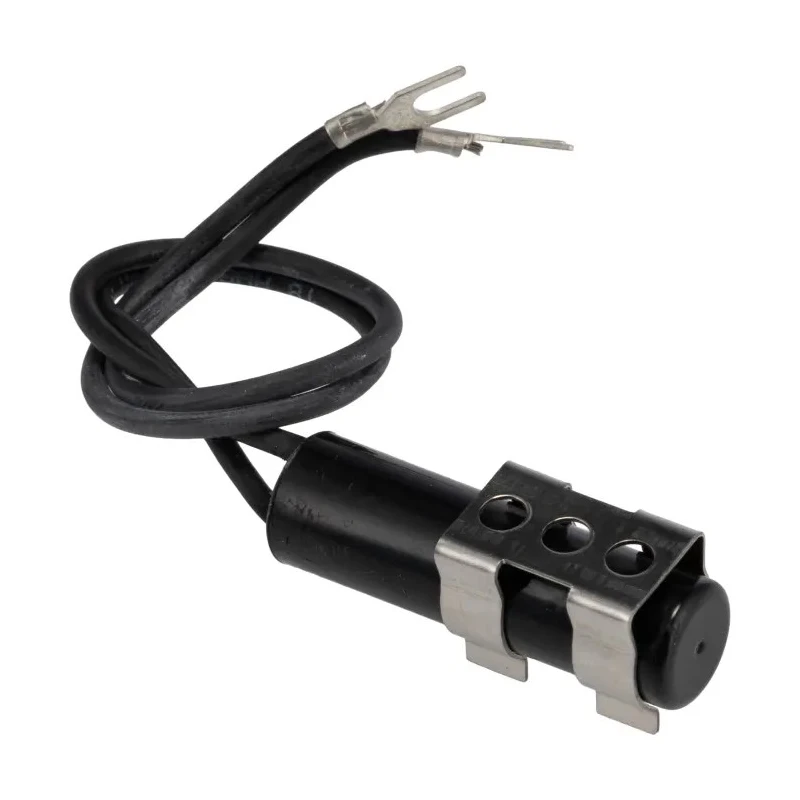

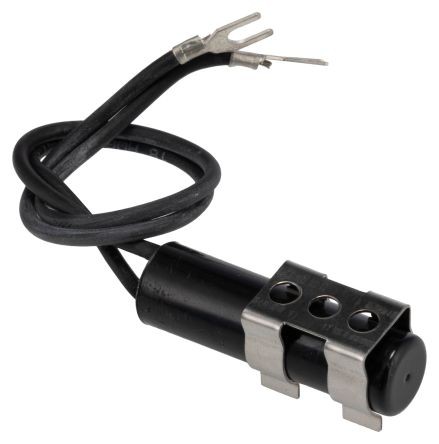

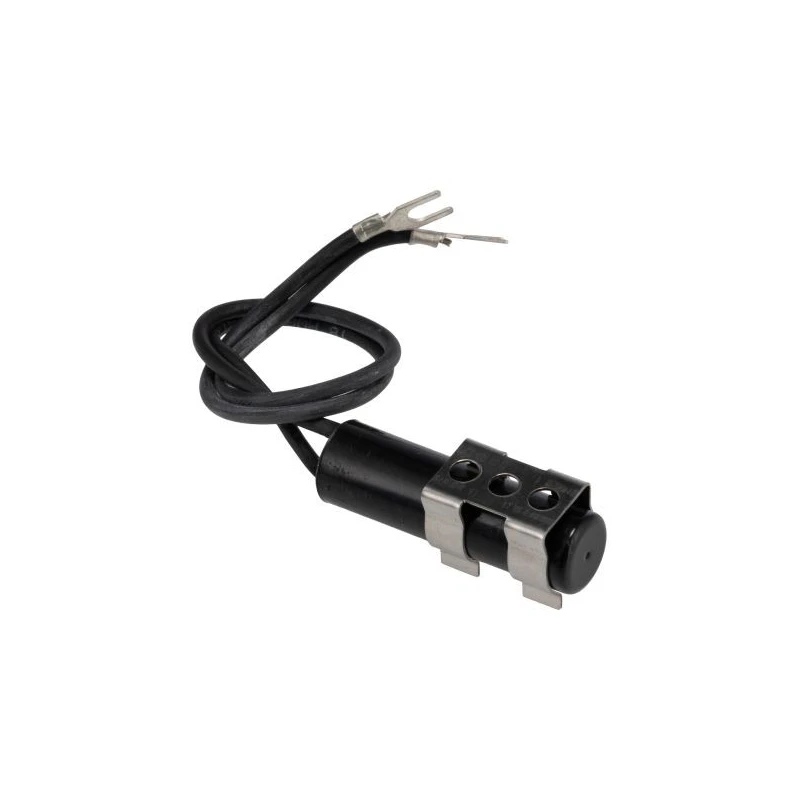

Assemtech 15 ° Horizontal Tilt Switch 2.5 A 280 V AC PD5005-7TC
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 12mm |
| Brand | Assemtech |
| Length | 47.6mm |
| Model | PD5005-7TC |
| Depth | 10mm |
| Series | PD5005 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 2.5A |
| Maximum dc Voltage | 200V dc |
| Standards/Approvals | RoHS |
| Maximum AC Voltage | 280V ac |
| Differential Angle | 15 ° |
| Assemtech Mercury Tilt SwitchBrand | Assemtech |
Key Features
- Features a differential tilt angle of 15 degrees for precise operation.
- Designed for horizontal mounting orientation ensuring accurate performance.
- Supports a maximum current of 2.5 amperes suitable for various electrical applications.
- Operates at a maximum AC voltage of 280 V and DC voltage of 200 V.
- Works reliably in temperatures ranging from -25°C to 75°C.
- Constructed with an ABS case and neoprene insulated cables for durability.
- Compact size with a length of 47.6 mm, diameter of 12 mm, and depth of 10 mm.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Assemtech PD5005-7TC 15 ° Horizontal Tilt Switch is a robust and precise hybrid mercury-free tilt switch designed for electrical and automation control applications. Rated for 2.5 A current and 280 V AC voltage, it offers reliable switching with a differential angle of 15 degrees suitable for horizontal mounting.

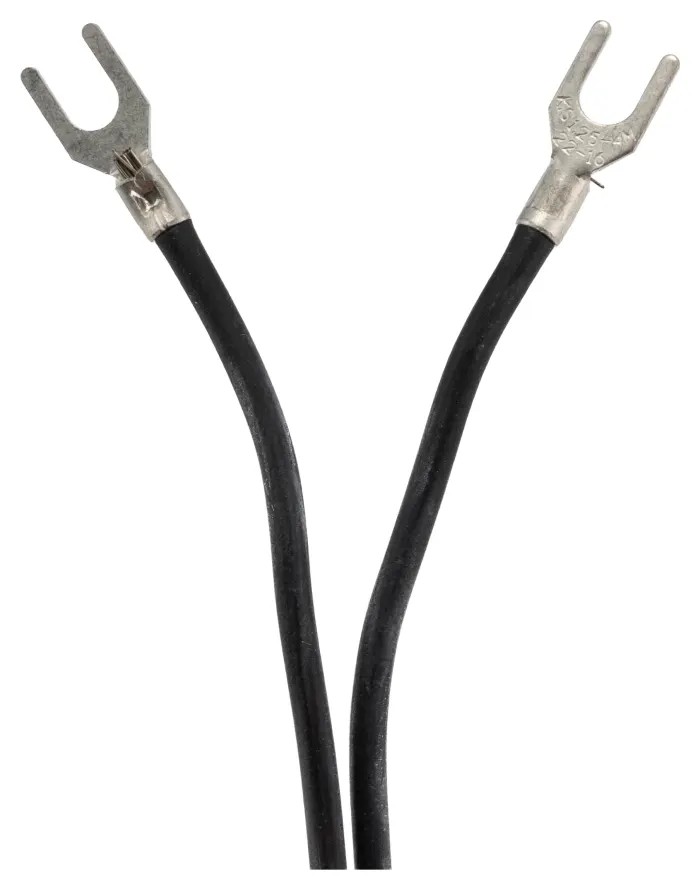

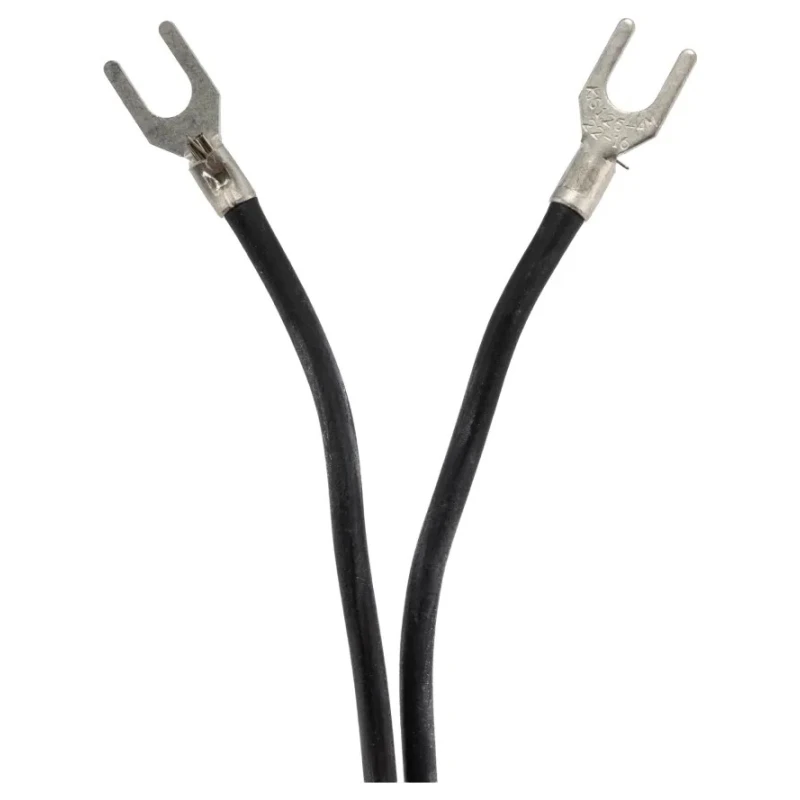

The switch features an ABS plastic case for protection and durability, along with a pair of 0.75 mm² neoprene insulated cables that ensure long-lasting cable integrity and flexibility. Its compact dimensions of 47.6 mm length, 12 mm diameter, and 10 mm depth allow easy integration into various industrial environments.
Operating temperature ranges from -25°C to 75°C, addressing diverse ambient conditions in industrial, HVAC, manufacturing, and automation use cases. The switch's hybrid design eliminates mercury, improving environmental safety while maintaining excellent performance with a high peak off-state voltage of 600 V.
Compliance with RoHS standards guarantees that the product meets international safety and environmental directives. Manufactured in the United States, this tilt switch signifies trusted quality and adherence to stringent controls.
Features a 15 ° tilt differential angle for sensitive position detection. Hybrid mercury-free construction ensuring environmental compliance. Maximum current rating of 2.5 A suitable for medium loads. Supports AC voltage up to 280 V and DC voltage up to 200 V.
Durable ABS case with neoprene insulated cables for cable protection. Compact dimensions (47.6 mm length, 12 mm diameter, 10 mm depth) for versatile mounting. Wide operating temperature range from -25°C to 75°C for harsh environments.
RoHS compliant ensuring eco-friendly manufacturing standards. Made in the United States reflecting robust manufacturing quality.
This tilt switch is ideal for various industrial automation, electrical control, HVAC systems, and manufacturing applications where precise angular detection and environmental safety are required. Its compact form factor and reliable ratings make it suitable for integration into limit and position switch assemblies.
Explore the extensive range of switches including Tilt Switches at EnvMart to find products matching your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this tilt switch is 2.5 A, making it suitable for medium load applications.
This model can handle a maximum AC voltage of 280 V.
The switch features a differential tilt angle of 15 degrees, allowing for precise operation in horizontal mounting.
The dimensions of this tilt switch are 47.6 mm in length, 12 mm in diameter, and 10 mm in depth.
It operates effectively in temperatures ranging from -25°C to 75°C.
The switch is constructed with an ABS plastic case and neoprene insulated cables for durability and protection.
Yes, it complies with RoHS standards, ensuring it meets international safety and environmental directives.
The minimum operating temperature for this model is -25°C.
This tilt switch is suitable for various industrial automation, electrical control, HVAC systems, and manufacturing applications.
The maximum DC voltage supported by this switch is 200 V.
The switch is designed for horizontal mounting orientation, ensuring accurate performance.
This tilt switch is manufactured in the United States, reflecting robust manufacturing quality.
