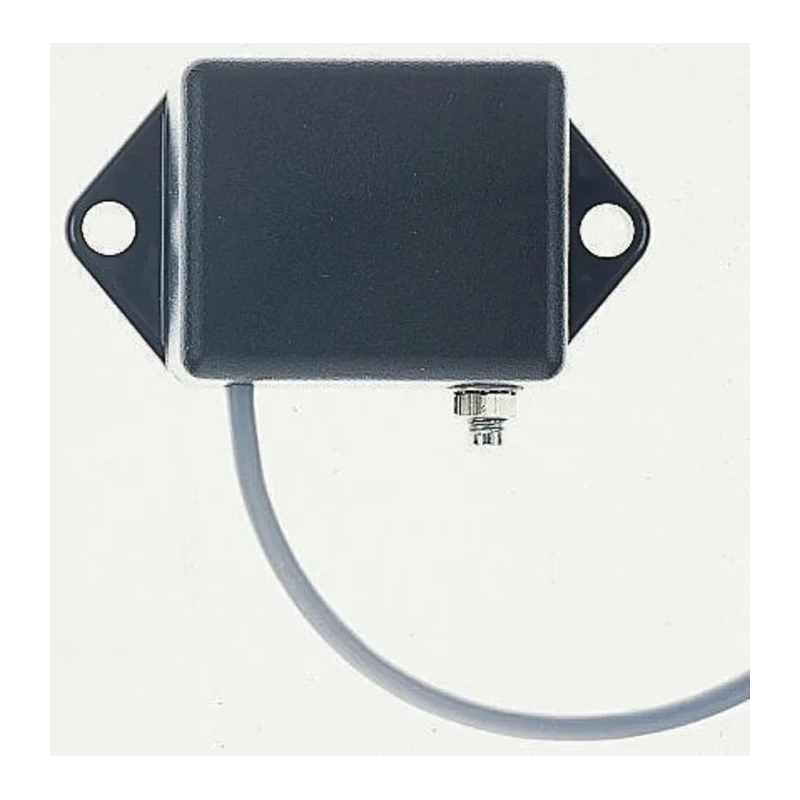

Assemtech 15° Horizontal Tilt Switch 40 mA 60 V AC CW 60A/30

Assemtech CW 60A/30 Tilt Switch is a precision horizontal tilt switch featuring a 15° differential angle for sensitive and reliable position detection in industrial and automation applications. Operating at a maximum current of 40 mA and capable of handling AC voltages up to 60 V and DC voltages up to 5 V, this device is suitable for low-power electrical circuits requiring accurate tilt sensing.

Equipped with adjustable sensitivity through an internal potentiometer, the switch allows fine tuning of activation parameters to suit specific operational needs. The robust IP65 rated ABS housing provides protection against dust and water ingress, making it ideal for harsh environments. Its anti-vibration circuitry ensures stability even in applications subjected to mechanical vibrations or movement.

The prewired cable length of 100 mm with 3-core PVC wiring facilitates straightforward installation and connection. Compact in size, the tilt switch measures 50.8 mm in length, with a width and diameter of 32 mm and a depth of 20.3 mm, allowing integration into constrained spaces.

Operating temperature ranges from -20°C to 70°C make this tilt switch suitable for a variety of industrial, laboratory, and automation system environments, including HVAC controls, manufacturing equipment position monitoring, and safety limit detection.

Features a 15° differential angle for accurate tilt sensing. Designed for horizontal mounting orientation to suit various applications. Supports a maximum current of 40 mA for low-power circuits. Operates safely up to 60 V AC and 5 V DC voltage levels.

Functions reliably within a temperature range of -20°C to 70°C. Constructed with an IP65 rated ABS housing for environmental protection. Includes anti-vibration circuitry enhancing durability in dynamic environments. Prewired with 100 mm 3-core PVC cable for easy installation.

Compact dimensions: 50.8 mm length, 32 mm width and diameter, 20.3 mm depth.

This Tilt Switch from Assemtech is suitable for various industrial automation, electrical control, HVAC, and instrumentation applications where precise tilt or position monitoring is critical. It provides robust performance under challenging environmental conditions with reliable sensitivity adjustment.
