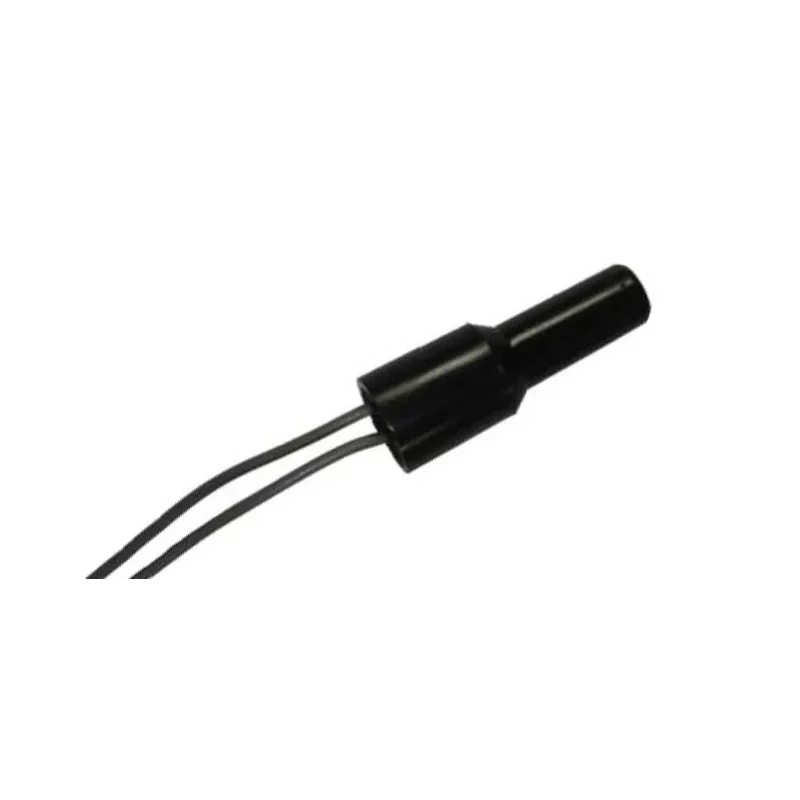

Assemtech 15 ° Horizontal Tilt Switch 2.5 A 280 V ac PD5000
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 12mm |
| Brand | Assemtech |
| Length | 60mm |
| Model | PD5000 |
| Series | PD5000 |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 2.5A |
| Standards/Approvals | RoHS |
| Maximum AC Voltage | 280V ac |
| Switching Capacity | 2.5 A, 4A Max. 1 minute on time (duty cycle of 80%) |
| Differential Angle | 15 ° |
Key Features
- Hybrid electronic-electromechanical mercury-free design.
- Epoxy sealed ABS housing provides durable protection.
- Supports 2.5 A continuous and 4 A for 1-minute switching capacity.
- Operates within a temperature range of -25°C to 70°C.
- Horizontal mounting orientation with 15° differential angle.
- RoHS compliant for environmental standards adherence.
Product Description
Assemtech PD5000 is a 15 ° horizontal tilt switch engineered for precise limit and position sensing applications in industrial and electrical control systems. This hybrid electronic-electromechanical unit features a mercury-free construction to provide environmentally friendly and reliable operation. It supports a maximum switching voltage of 280 V AC and a continuous current of 2.5 A, with capability to handle momentary 4 A loads for up to one minute with a duty cycle of 80%.
The switch housing is epoxy sealed with rugged ABS material ensuring resistance to environmental factors and mechanical wear. Designed for horizontal mounting, it activates at a differential angle of 15 degrees for sensitive and repeatable detection of tilt or position changes.
This Tilt Switch operates within a wide temperature range from -25°C to 70°C, making it suitable for various industrial environments including automation processes and safety systems. Its compact form factor with a length of 60 mm and diameter of 12 mm provides easy installation in limited spaces.
The PD5000 series complies with RoHS standards, underscoring its compliance with environmental regulations. Its hybrid design leverages both electronic and electromechanical principles, making it ideal for HVAC, manufacturing equipment, laboratory control devices, and other electrical systems requiring precise tilt detection.
Hybrid electronic-electromechanical mercury-free design. Sealed ABS housing with epoxy for durability. Capable of switching 2.5 A continuous and 4 A short bursts. Wide operating temperature from -25°C to 70°C. Horizontal mounting with precise 15° differential angle.
Compact size suitable for space-constrained applications. RoHS compliant ensuring environmental safety. Explore more electrical switches and tilt sensors at EnvMart for robust industrial automation solutions with trusted Assemtech quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PD5000 tilt switch supports a maximum continuous current of 2.5 A and can handle momentary loads of up to 4 A for 1 minute with a duty cycle of 80%.
This model operates within a temperature range of -25°C to 70°C, making it suitable for various industrial environments.
The switch activates at a differential angle of 15 degrees, allowing for sensitive and repeatable detection of tilt or position changes.
The housing of the PD5000 is made from epoxy-sealed ABS material, providing protection against environmental factors and mechanical wear.
This unit is designed for horizontal mounting orientation, which is essential for its proper operation.
The dimensions of this switch are 60 mm in length and 12 mm in diameter, making it compact for installation in limited spaces.
The maximum AC voltage that this model can handle is 280 V AC.
Yes, the PD5000 is RoHS compliant, ensuring adherence to environmental safety standards.
This tilt switch is suitable for applications in HVAC, manufacturing equipment, laboratory control devices, and other electrical systems requiring precise tilt detection.
The PD5000 features a hybrid electronic-electromechanical design that is mercury-free, providing environmentally friendly operation.
The minimum operating temperature for the PD5000 is -25°C, allowing it to function in colder environments.
The PD5000 can handle short bursts of up to 4 A for a maximum of 1 minute, with an 80% duty cycle.
