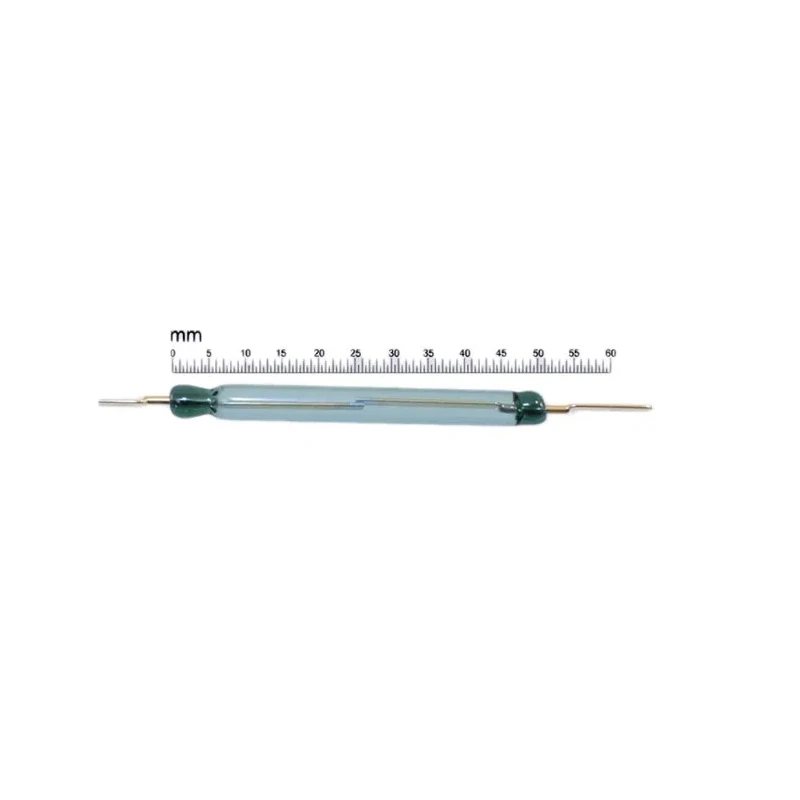

Assemtech SPNO PCB Reed Switch 3A 1500V Rhodium Contact GC1513 (80-95AT)

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPNO PCB Reed Switch 3A 1500V Rhodium Contact GC1513 (80-95AT)

Name: Assemtech SPNO PCB Reed Switch 3A 1500V Rhodium Contact GC1513 (80-95AT)
Brand: Assemtech
SKU: 387449
Price: 638.42 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	India
Brand	Assemtech
Length	52mm
Model	GC1513 (80-95AT)
Width	5.4mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	3A
Maximum Operating Temperature	125°C
Contact Configuration	SPNO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Power	120W
Standards/Approvals	ISO
Maximum Switching Voltage	1500V
Maximum Release Time	0.2ms
Operating Time Including Bounce	0.5ms
AT Value Range	60 to 70 AT

Key Features

Features single pole, single throw normally open contact configuration for reliable actuation.
Contact material is rhodium for excellent conductivity and wear resistance.
Designed for PCB mount with wire terminal type and compact dimensions of 52mm length and 5.4mm width.
Operates in a wide temperature range from -40°C to 125°C, ensuring durability in harsh environments.
Hermetically sealed in a gas-filled glass envelope to protect against contaminants and mechanical damage.
Fast operating time including bounce at 0.5ms and maximum release time of 0.2ms for precise switching.
Capable of switching up to 120W power with low contact resistance of 100 milliohms.
Applicable in industrial, electrical, and automation systems requiring sensitive reed switch functionality.

Product Description

The Assemtech GC1513 (80-95AT) is a high-quality SPNO (Single Pole Normally Open) PCB reed switch designed to handle a maximum switching current of 3 amps and a maximum switching voltage of 1500 volts. Its contacts are rhodium plated, providing durability and excellent electrical conductivity for reliable switching operations.

This reed switch features a compact form factor with a length of 52mm and a width of 5.4mm, making it suitable for mounting directly onto printed circuit boards with wire terminals. It is hermetically sealed inside a gas-filled glass envelope to protect the internal contacts from contamination and ensure long mechanical life of up to 1,000,000 operations.

Operating temperature ranges from -40°C to 125°C, making it appropriate for use in various environments including industrial automation, electrical apparatus, and control systems. The fast response time with a maximum release time of 0.2 milliseconds and an operating time including bounce of 0.5 milliseconds ensures precise and dependable switching performance.

This reed switch is compliant with ISO standards and belongs to the GC series, offering a range of sensitivity options from 60 to 70 AT values. It is particularly suitable for applications that require magnetically actuated switches, which can be triggered by permanent magnets or electromagnetic coils.

Single pole normally open contact configuration for dependable switching. Rhodium contact plating for durability and low resistance. Hermetically sealed in a gas-filled glass envelope for protection. Compact PCB mount design with wire terminals.

Wide operating temperature range from -40°C to 125°C. Fast mechanical response times for accuracy. High maximum switching power of 120 watts. Suitable for industrial and electrical automation use cases. Explore a wide selection of Reed Switches and related components in the EnvMart Electronics & Electricals category, engineered to meet professional industrial standards.
