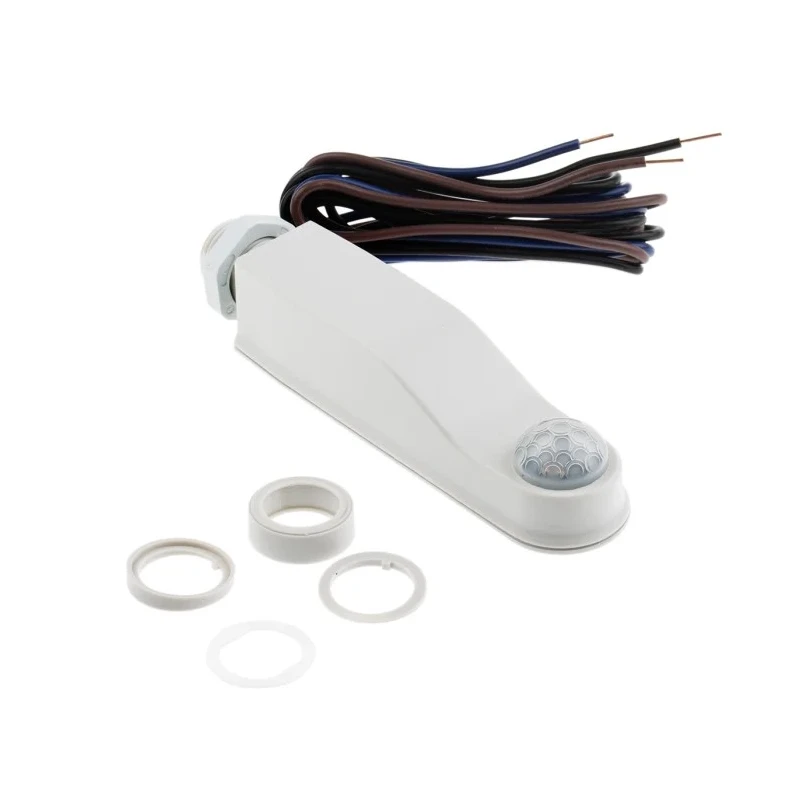

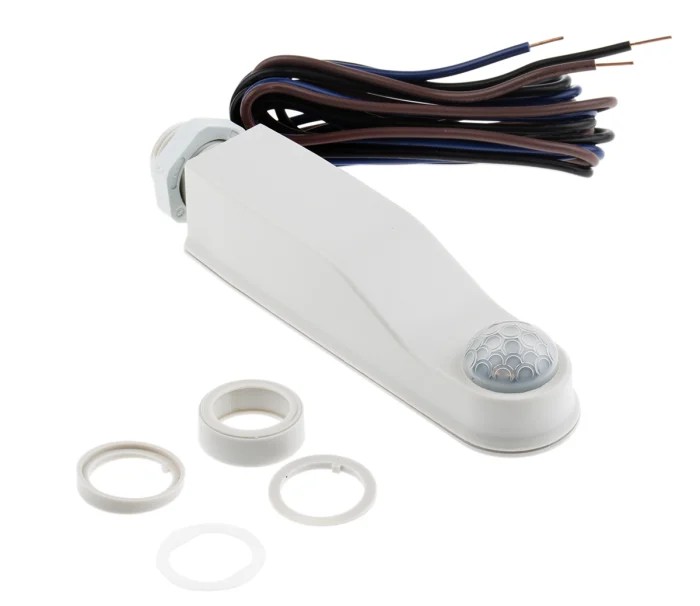

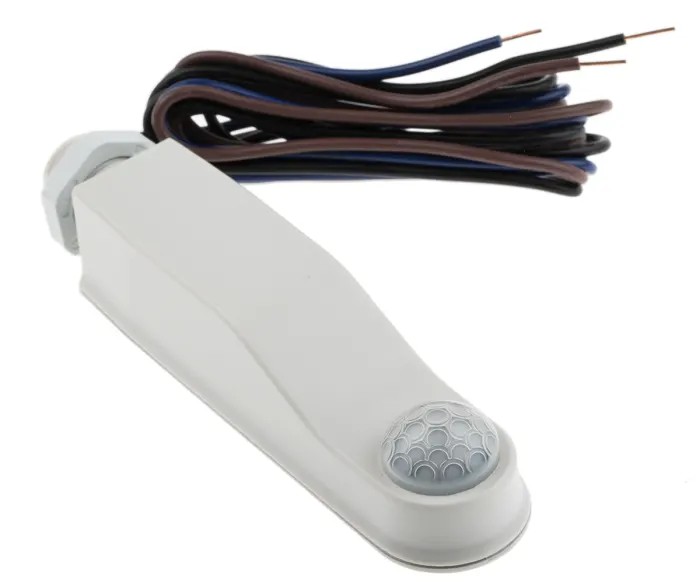

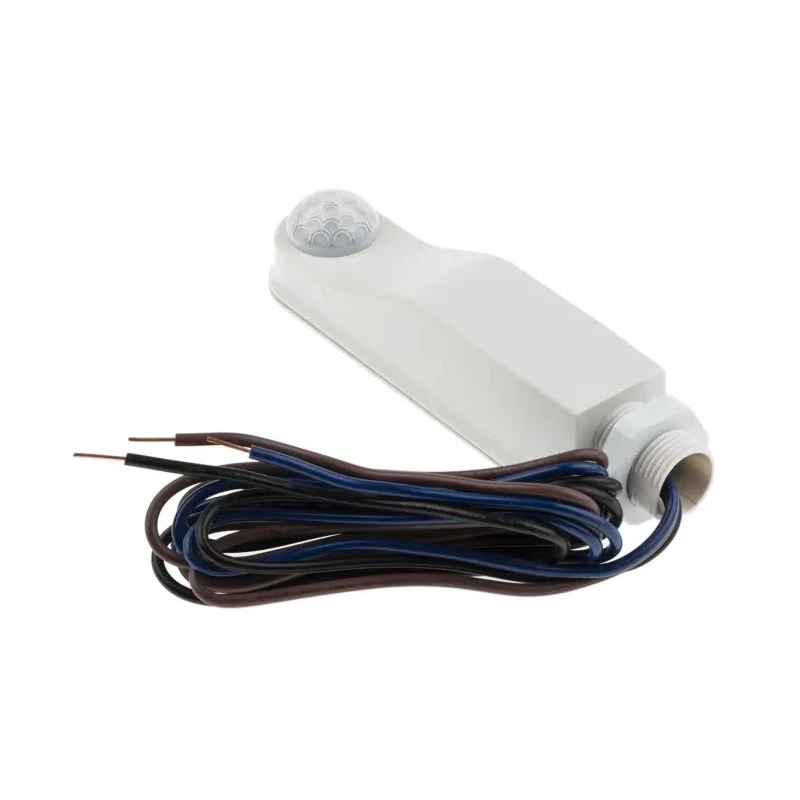

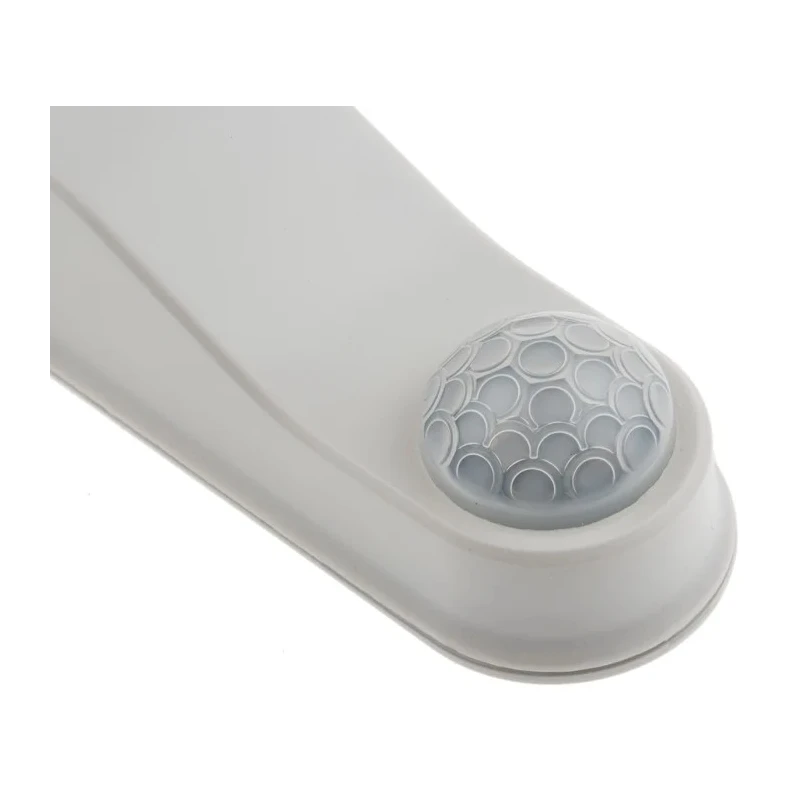

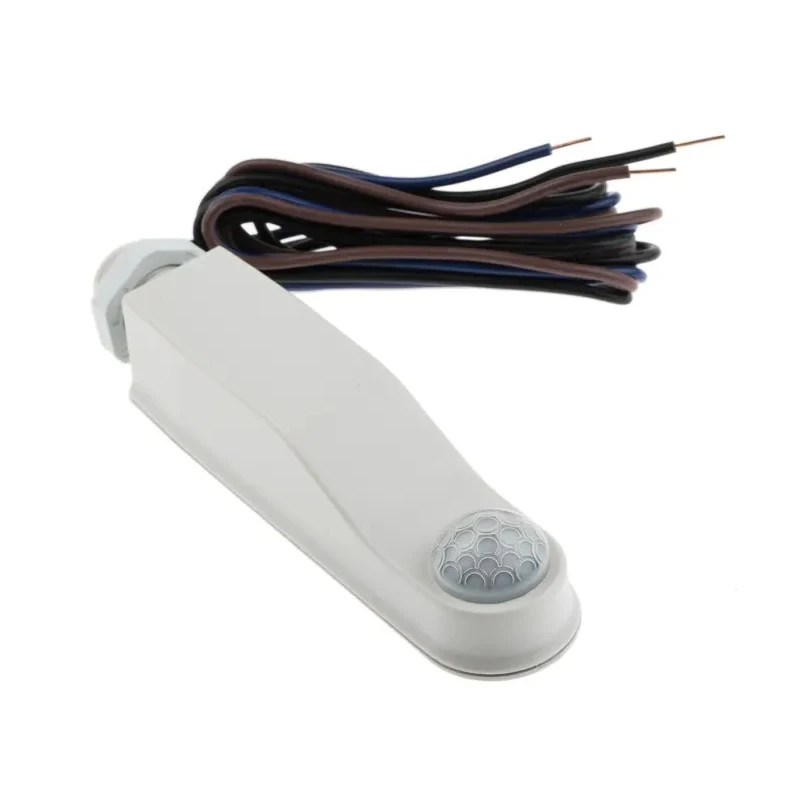

RS PRO Passive Infrared PIR Sensor 230V AC Ceiling Mount IP65 Polycarbonate Flame Retardant ABS 796-2028

RS PRO 796-2028 Passive Infrared PIR Sensor is a high-performance sensor designed for automatic control of lighting systems in industrial, commercial, and residential environments. With a supply voltage of 230V AC and an IP65 rating, it offers reliable operation even in dusty and low-pressure water jet conditions.

Utilizing passive infrared detection technology, this sensor instantly switches lights on upon detecting motion within its 16-meter range. It supports a variety of lighting types including incandescent, fluorescent, compact fluorescent, and LED lighting, making it versatile for various applications such as corridors, meeting rooms, and cabin spaces.

The sensor integrates a dimming controller that measures ambient light levels and adjusts lighting accordingly, enhancing energy efficiency. Users can manually operate the unit with the supplied remote controller and set a time delay between 10 seconds and 99 minutes to automatically turn off the lights after no motion is detected.

Constructed from polycarbonate and flame retardant ABS, this sensor withstands industrial use conditions. Its compact ceiling-mounted design measures 144 mm in length, 33 mm in width, and 28 mm in height, enabling easy installation in confined spaces.

The sensor is CE certified and complies with EMC 2004/108/EC and LVD 2006/95/EC standards, assuring quality and safety. It consumes a low power of 817 mW to support energy-saving setups.

The sensor detects motion using passive infrared technology. CE Certified with EMC and LVD compliance standards. Adjustable time delay from 10 seconds to 99 minutes for turning off lights. Compatible with incandescent, fluorescent, compact fluorescent, and LED lights.

Equipped with a dimming controller that operates lights based on ambient brightness. Ceiling mount type with compact dimensions: 144 mm length, 33 mm width, and 28 mm height. Constructed with polycarbonate and flame retardant ABS materials for durability.

Power consumption is approximately 817 mW, suitable for energy-saving applications. IP65 ingress protection allowing use in indoor and outdoor dust and water exposure conditions.

This RS PRO PIR sensor is ideal for applications in building automation, safety and security systems, manufacturing plants, and public facilities, where reliable and efficient lighting control is essential. It makes an excellent choice for both indoor and sheltered outdoor environments due to its durable construction and ingress protection rating.
