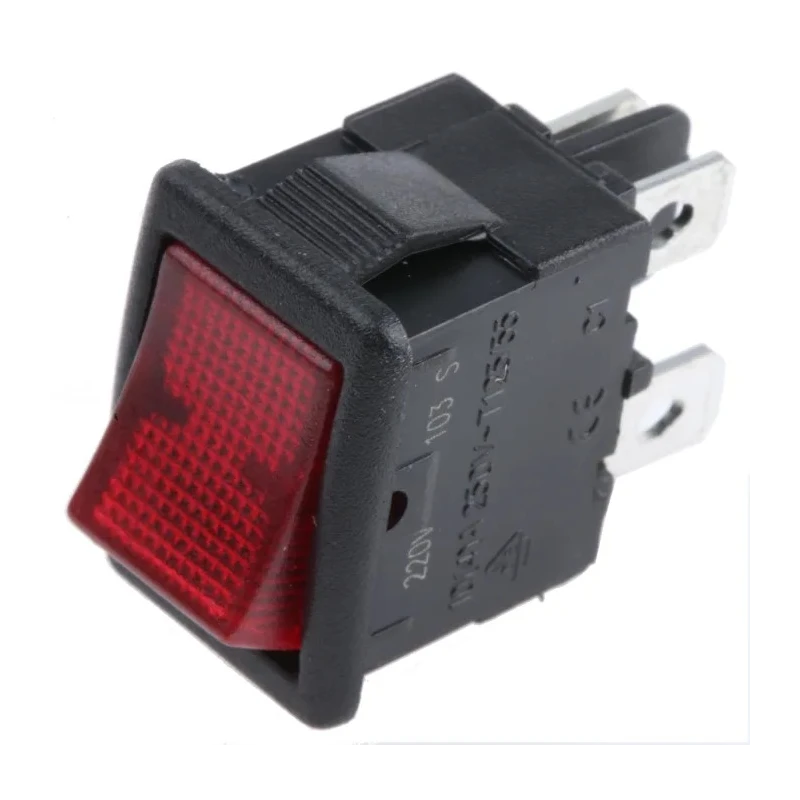

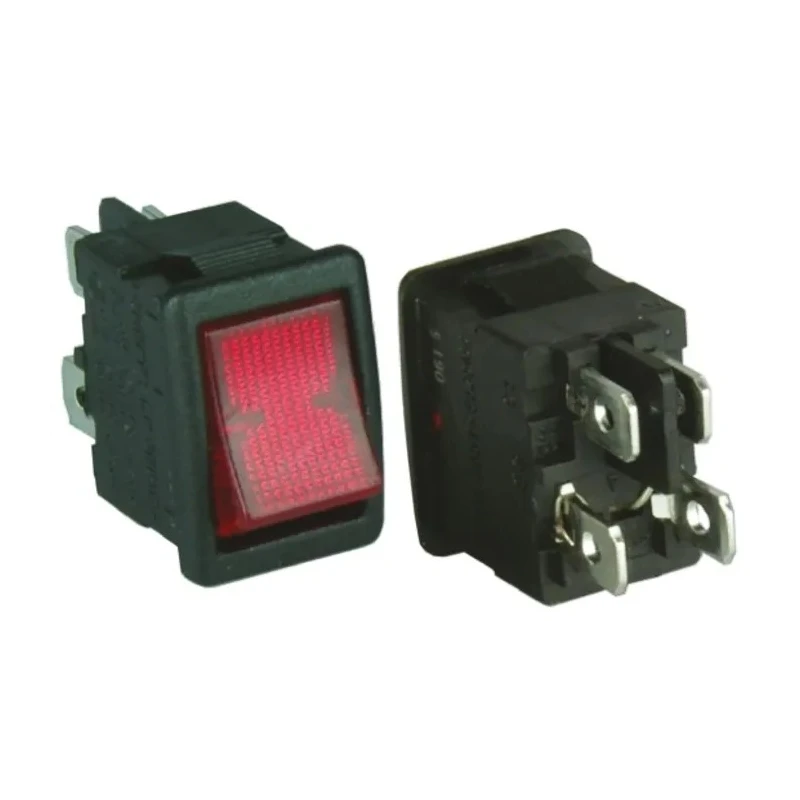

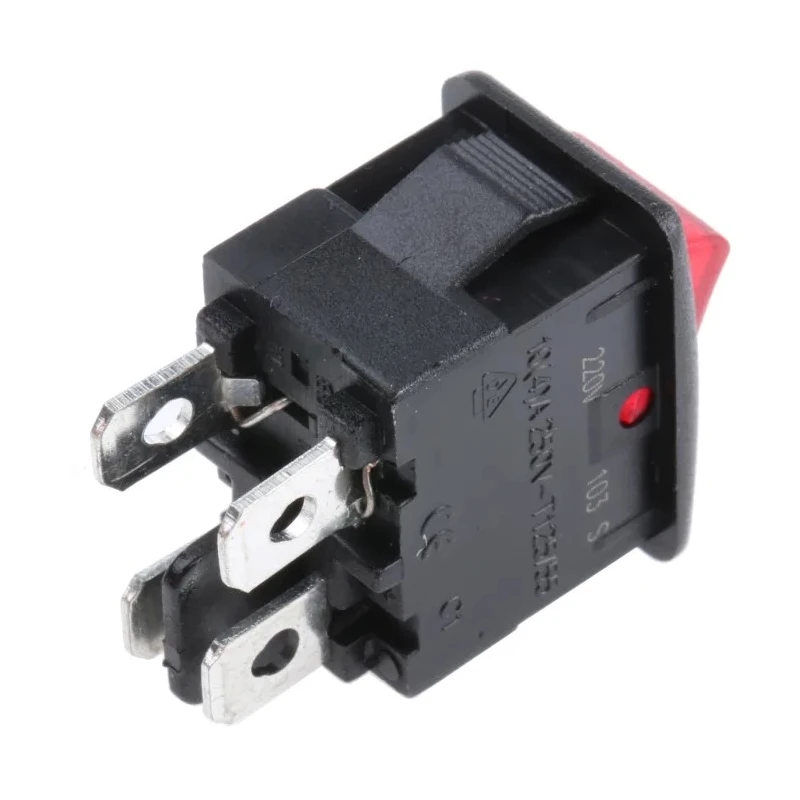

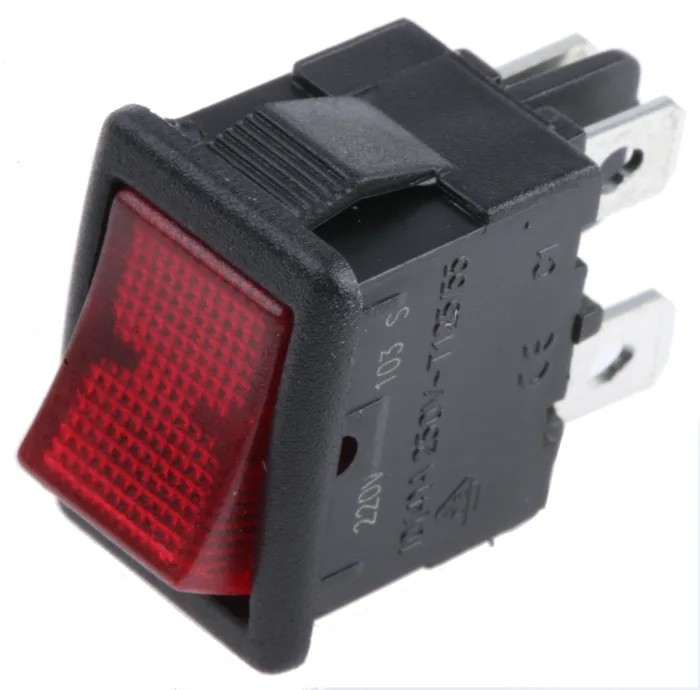

ZF Illuminated Double Pole Single Throw DPST On-Off On-Off Nylon Panel Mount Rocker Switch LRA32H2BBREN

Free Delivery in India | Lowest Global Shipping Charges

ZF Illuminated Double Pole Single Throw DPST On-Off On-Off Nylon Panel Mount Rocker Switch LRA32H2BBREN



Category Rocker Switch Brand ZF Condition New

Specifications

Country of Origin	China
Brand	ZF
Model	LRA32H2BBREN
Mount Type	Panel
Housing Material	Nylon
Series	LR
Maximum Operating Temperature	65°C
Contact Configuration	DPST
Switch Configuration	On-Off
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.3 x 12.9 mm
Terminal type	Quick Connect
Standards/Approvals	VDE, UL
Switch Operation	On-Off
Actuator Colour	Red
Actuator Style	Rectangular
Switch Contact Current	10A
Mechanical Life	100000Operations
ZF Illuminated DPST, On-Off Rocker Switch Panel MountBrand	ZF

Key Features

The switch has a double pole single throw (DPST) contact configuration suitable for controlling two circuits simultaneously.
It offers On-Off switching operation with red illuminated actuator for clear operational status indication.
The panel cutout size is 19.3 x 12.9 mm, compatible with industry standard mounting.
Designed for high current applications with 10 A switch contact current rating.
It features a quick connect terminal type and rectangular actuator style for easy installation.
The switch is rated for operation between -20°C and 65°C ambient temperatures.
It meets VDE and UL standards for safety and reliability.
Mechanical life expectancy is rated at 100,000 operations ensuring long service life.

Product Description

ZF LRA32H2BBREN Illuminated DPST On-Off Rocker Switch is designed for electrical and automation applications requiring reliable high current switching in a compact form factor. Constructed with a strong nylon housing and featuring a panel mount style, this switch integrates seamlessly into control panels with a 19.3 x 12.9 mm cutout.

The double pole single throw (DPST) contact configuration allows for simultaneous control of two separate circuits, making it versatile for complex switching requirements. The On-Off operation provides straightforward control, enhanced by the red illuminated actuator that clearly indicates switch status even in low-light conditions.

With a switch contact rating of 10 A, this rocker switch is suitable for medium power electrical control tasks. The quick connect terminals and rectangular actuator style facilitate rapid installation and panel integration. Rated for an operating temperature range from -20°C to 65°C, it performs reliably under various environmental conditions.

Compliance with VDE and UL safety standards assures quality and reliability for industrial use. The switch is engineered to withstand a mechanical life of up to 100,000 operations, making it a durable choice for frequent use applications.

This LR series switch fits industry-standard panel cutouts and includes self-locking tabs to secure it firmly in place, ensuring safe operation. Its illuminated feature provides visual feedback for operational monitoring in electrical panels and automation systems.

The switch supports dual-circuit switching suitable for industrial and commercial electrical panels. High mechanical durability supports long term operational reliability. Compact design allows installation in tight panel spaces adhering to standard cutout dimensions.

Illuminated actuator enhances operator feedback and safety. Compatibility with quick connect terminals speeds up assembly processes in manufacturing. Ideal for applications in electrical automation, control cabinets, HVAC systems, and industrial machinery requiring robust and clear switching control.

Explore more Rocker Switches and electrical components within the Electronics & Electricals category at EnvMart for your industrial and commercial project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a double pole single throw (DPST) contact configuration, allowing for simultaneous control of two circuits.

The maximum operating temperature for this switch is 65°C.

The required panel cutout size for this switch is 19.3 x 12.9 mm, which is compatible with industry standard mounting.

The switch contact current rating is 10 A, making it suitable for medium power electrical control tasks.

It features quick connect terminals, facilitating rapid installation and panel integration.

This model meets VDE and UL standards, ensuring safety and reliability for industrial use.

The mechanical life expectancy is rated at 100,000 operations, indicating a long service life.

The actuator is red in color and has a rectangular style, designed for clear operational status indication.

The operating temperature range for this switch is from -20°C to 65°C.

It is suitable for applications in electrical automation, control cabinets, HVAC systems, and industrial machinery requiring robust switching control.

The housing of this switch is constructed from nylon, providing a strong and durable enclosure.

This rocker switch offers On-Off operation, providing straightforward control for electrical circuits.
