TE Connectivity Gemini A Series SPDT On-On On-(On) Rocker Switch PCB 1-1571986-1

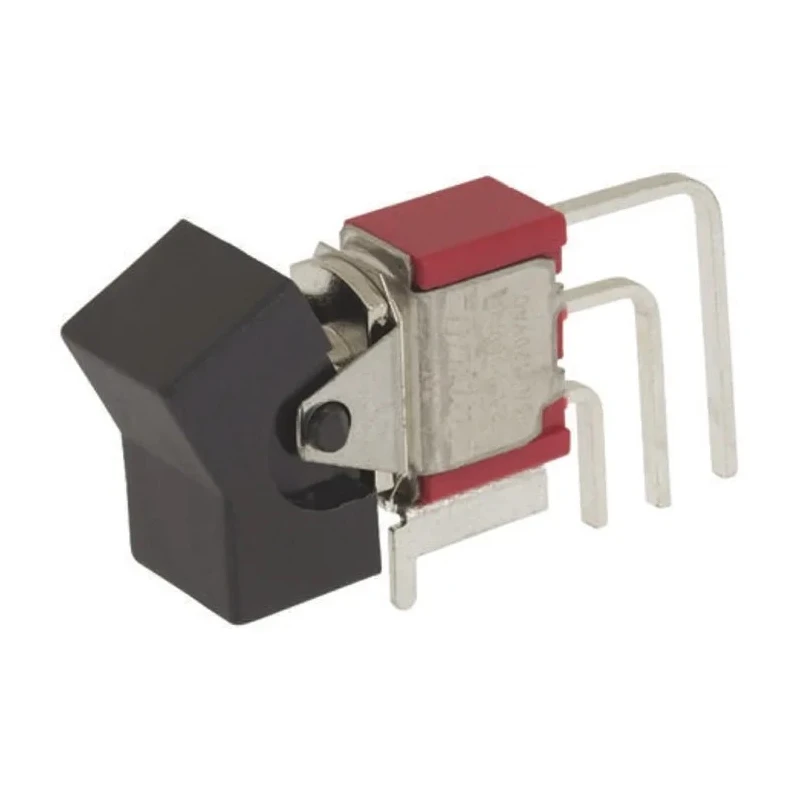

Name: TE Connectivity Gemini A Series SPDT On-On On-(On) Rocker Switch PCB 1-1571986-1
Brand: TE Connectivity
SKU: 425549
Price: 560.23 INR
Availability: InStock



Category Rocker Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Mount Type	PCB
Housing Material	Thermoplastic
Series	Gemini A
Maximum Operating Temperature	+85°C
Contact Configuration	SPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	17.96 x 10.62 mm
Terminal type	Plug-In
Switch Operation	On-On
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	5A
Mechanical Life	400000Operations
Contact AC Voltage	125V ac

Key Features

This rocker switch features a SPDT contact configuration suitable for versatile circuit control.
The switch operation supports On-On On-(On) functionality for multiple switching positions.
Constructed with a thermoplastic housing and a rectangular black actuator for robust use.
Designed for PCB mounting with plug-in terminal types for easy installation.
Rated for 5A contact current at 28V DC and 125V AC, suitable for various electrical applications.
Operates reliably within a temperature range of -30°C to +85°C.
Mechanical life rated at 400,000 operations ensuring long-lasting performance.
The panel cutout size measures 17.96 x 10.62 mm, fitting standard PCB designs.

Product Description

TE Connectivity 1-1571986-1 is a Gemini A Series SPDT On-On On-(On) Rocker Switch designed for PCB mounting, rated at 5A contact current for both DC and AC voltages. The switch offers durable thermoplastic housing with a rectangular black actuator style ensuring reliable operation in electronic circuits.

This switch is optimized for industrial, electrical, and automation applications with its robust construction and precise switch operation. It features a plug-in terminal type that simplifies installation onto PCBs and supports a panel cutout dimension of 17.96 by 10.62 mm.

Rated for operation in extreme conditions with minimum and maximum operating temperatures from -30°C to +85°C, this rocker switch provides long life with a mechanical rating of 400,000 cycles. The non-illuminated design supports clean and functional switching without added complexity.

Its SPDT configuration allows flexible connection schemes, ideal for control panels, industrial machines, manufacturing equipment, and automotive electronics. The switch is made in China and complies with the Gemini A series quality standards.

This Rocker Switch features a SPDT contact configuration suitable for versatile circuit control. The switch operation supports On-On On-(On) functionality for multiple switching positions. Constructed with a thermoplastic housing and a rectangular black actuator for robust use.

Designed for PCB mounting with plug-in terminal types for easy installation. Rated for 5A contact current at 28V DC and 125V AC, suitable for various electrical applications. Operates reliably within a temperature range of -30°C to +85°C.

Mechanical life rated at 400,000 operations ensuring long-lasting performance. The panel cutout size measures 17.96 x 10.62 mm, fitting standard PCB designs. Non-illuminated, this switch offers a simple yet effective black rectangular actuator design.

This product is ideal for use in electronics manufacturing, industrial automation, and control systems requiring reliable and precise switching. For more products from TE Connectivity and other electrical components, explore EnvMart's wide selection of switches and components.
