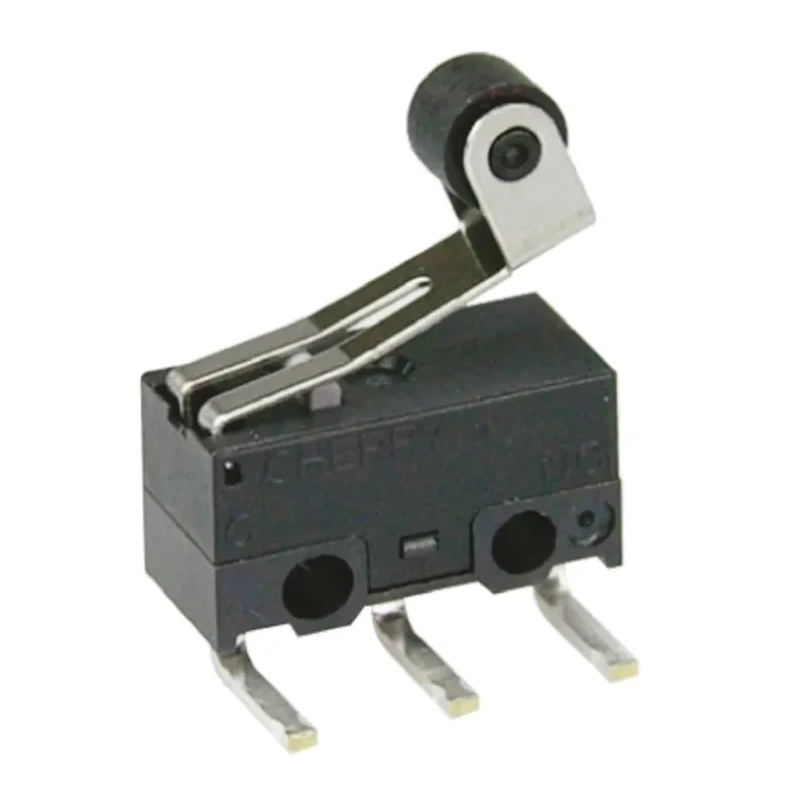

ZF Roller Lever Micro Switch Left Angle PCB Terminal 50mA 125V AC 30V DC SPDT IP40 DG23-B3RA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Operating Temperature Range | -25 to +85°C |
| Length | 12.8mm |
| Model | DG23-B3RA |
| IP Rating | IP40 |
| Housing Material | Polyphenylene Sulphide |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Left Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 50mA |
| Operating Force | 0.59N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
Key Features
- The switch is a DG subminiature type with SPDT contact configuration.
- Roller lever actuator ensures precise switching operation.
- Housing made from UL94V-0 rated polyphenylene sulphide for durability.
- Operating temperature ranges from -25°C to 85°C suitable for various environments.
- Mechanical life rated up to 1,000,000 operations ensuring longevity.
- IP40 protection safeguards against solid objects larger than 1 mm but no water protection.
- Operating force of 0.59N ensures reliable actuation with minimal effort.
- Certified RoHS compliant and UL recognized component with CSA certification.
Product Description
ZF DG23-B3RA Roller Lever Micro Switch is a miniature PCB microswitch designed for reliable switching in electronic and electrical automation applications. Featuring a left angle PCB terminal and a roller lever actuator, it operates efficiently with a contact current rating of 50mA at 125 V AC and 30 V DC.
The switch is constructed with a durable polyphenylene sulphide housing rated UL94V-0, providing flame retardancy and mechanical strength. It supports a wide operating temperature range from -25°C to 85°C, making it suitable for varied industrial environments.
Its SPDT (Single Pole Double Throw) silver-plated wiping contacts ensure consistent electrical performance, while the IP40 ingress protection rating offers prevention against solid particles greater than 1 mm, though it does not protect against water intrusion.
The mechanical life expectancy of one million operations combined with an operating force of 0.59N guarantees long service life with minimal actuation effort. The microswitch meets RoHS standards and is recognized by UL and certified by CSA, assuring compliance with industry quality and safety norms.
This compact switch with a length of 12.8 mm is ideal for use in precision equipment, including electrical control systems, automation machinery, and other industrial electronics. It allows easy installation and enhances production efficiency within PCB assemblies.
The switch features a roller lever actuator for accurate and responsive operation. Durable housing is made of flame-retardant polyphenylene sulphide. Operating force is low to enable efficient switching control. The product is compliant with RoHS and certified by UL and CSA for electrical safety.
Robust mechanical life ensures longevity in industrial applications. Explore more Micro Switches and automation components at EnvMart to support your industrial and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this micro switch is 85°C, making it suitable for various industrial environments.
It has a mechanical life rated for up to 1,000,000 operations, ensuring longevity in its applications.
The switch can handle a contact current of 50mA at 125V AC and 30V DC, making it suitable for different electrical systems.
The operating force for this micro switch is 0.59N, allowing for reliable actuation with minimal effort.
This switch utilizes a roller lever actuator, which ensures precise switching operation.
The housing is constructed from polyphenylene sulphide, which is rated UL94V-0 for flame retardancy and durability.
It has an IP40 rating, which protects against solid objects larger than 1 mm but does not provide water protection.
The length of this model is 12.8 mm, making it compact for various applications.
Yes, it is RoHS compliant and recognized by UL and certified by CSA, ensuring it meets industry quality and safety norms.
The operating temperature range is from -25°C to +85°C, allowing it to function effectively in diverse environments.
It features a left angle PCB terminal, facilitating easy installation in PCB assemblies.
