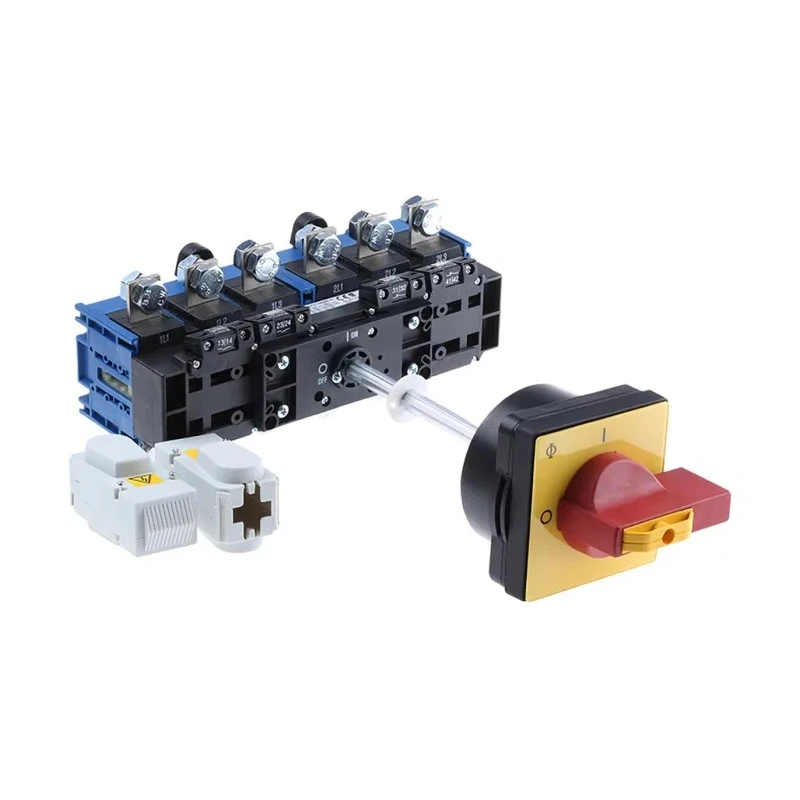

Kraus & Naimer 6-Pole Surface Isolator Switch IP65 125A 45 kW

Kraus & Naimer KG126.T206/GBA010.VE 6-Pole Surface Isolator Switch IP65 rated is engineered for demanding electrical and industrial automation environments. It handles a switching current of 125A and switching power of 45 kW, making it suitable for 3-phase electrical systems operating at nominal voltages up to 690V.

This surface-mount isolator switch features a durable construction with a red handle designed for high visibility and safety, integrating a padlock provision to secure the OFF position. It provides interlocking in the ON position to prevent panel door openings when energized, enhancing operational safety.

The device supports auxiliary contacts, enabling extended control and signaling capabilities for complex circuit requirements. Its robust IP65 enclosure ensures protection against dust and water ingress, suitable for harsh industrial conditions.

Mounting is versatile using DIN rails or screws, accommodating different panel designs. Constructed according to standards BS EN 60947-3, IEC 60947-3, and VDE 0660, it meets stringent quality and safety benchmarks. The switch is certified by UL and CSA, confirming compliance with North American safety standards.

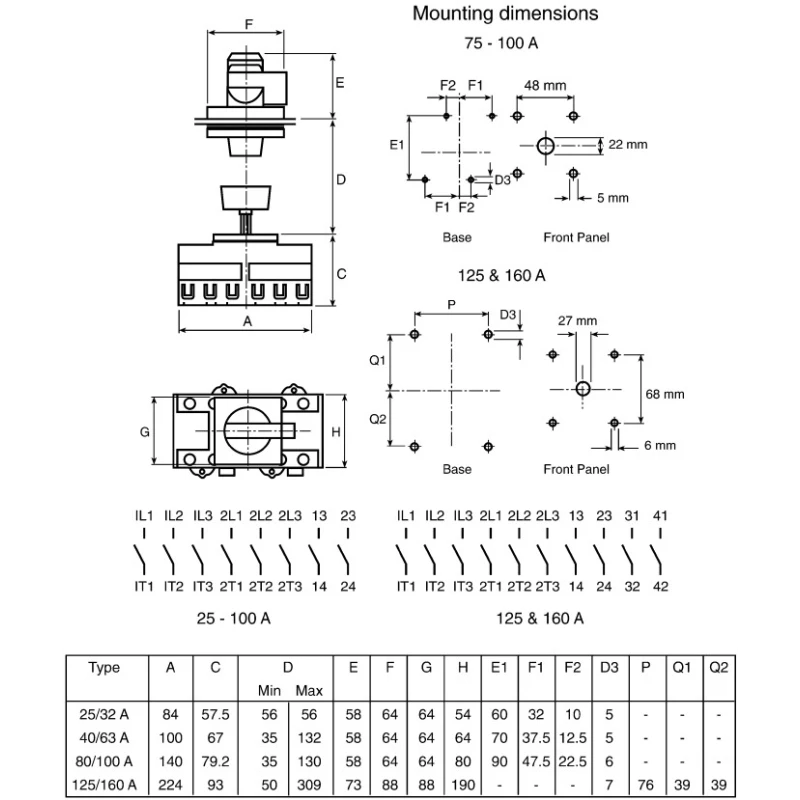

Dimensions measure 224mm (L) x 216mm (D) x 190mm (W), fitting typical panel sizes with an ergonomic design for ease of use. Operating temperature covers 55°C ensuring reliable performance within typical industrial temperature ranges.

The switch supports 6 poles and is surface-mounted for easy installation. Rated for an electrical phase of 3 and nominal voltage of 690V. Equipped with a high visibility red handle with padlock options in the OFF position.

Switching power up to 45 kW and switching AC voltage of 240V AC. Auxiliary contacts are available enhancing control options. Temperature operation range includes minimum and maximum of 55°C. Complies with international standards including BS EN 60947-3 and IEC 60947-3.

Dimensions are 224mm length, 216mm depth, and 190mm width, suitable for panel mounting. Mounting options include DIN rail or screw fixing to back of panel. Approvals include UL and CSA certifications ensuring industrial compliance.

This isolator switch is ideal for use in industrial, manufacturing, electrical distribution, and automation control systems. Its rugged design and compliance with international standards make it dependable for critical switching applications, ensuring safety and reliability.
