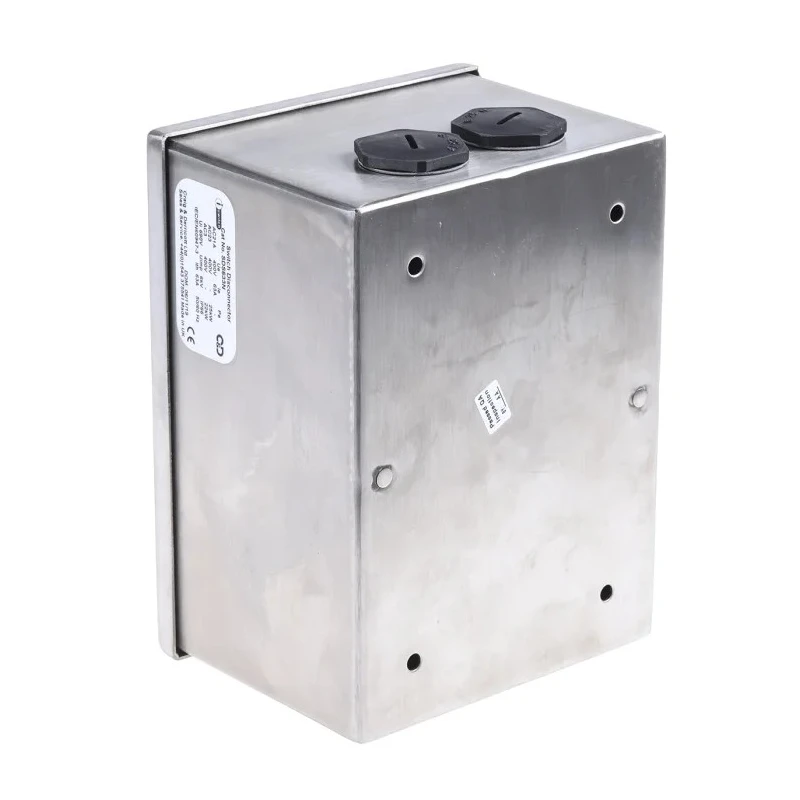

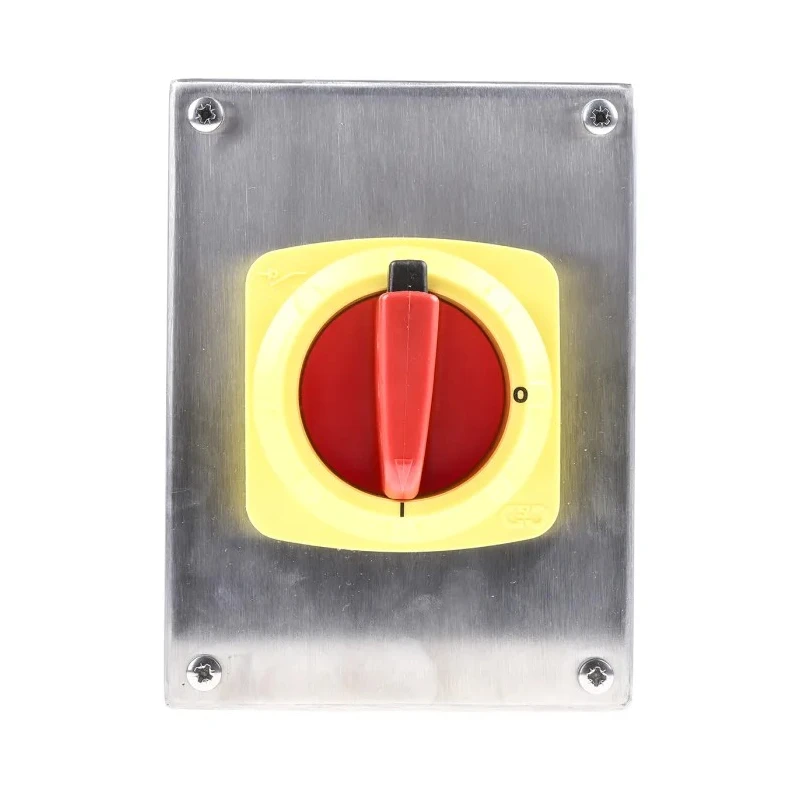

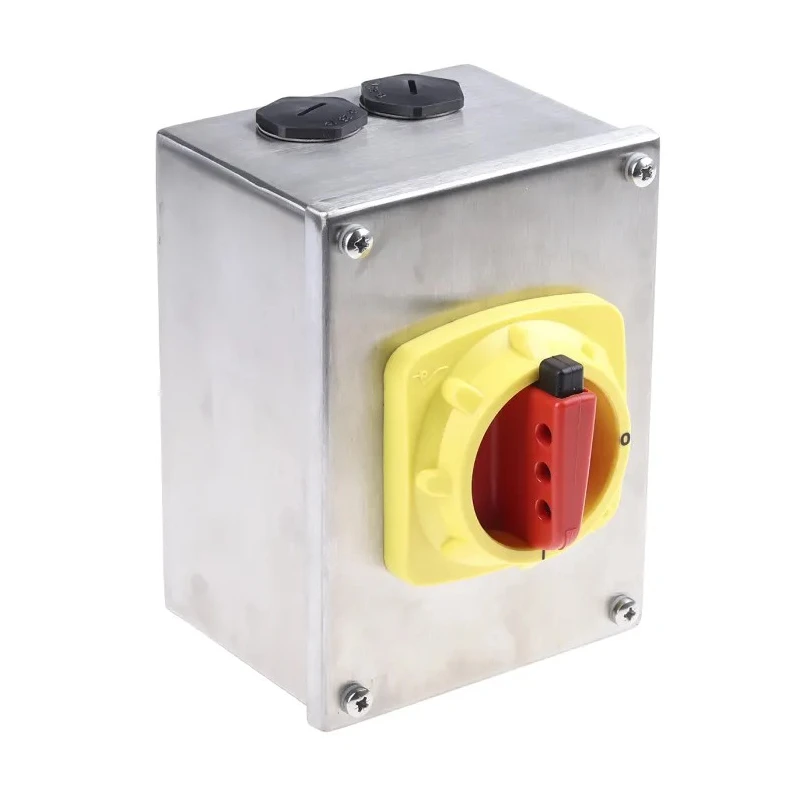

Craig & Derricott 3-Pole Base Isolator Switch IP65, 63A, 30 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Craig & Derricott |
| Length | 175mm |
| Model | IP65 |
| Depth | 100mm |
| IP Rating | IP65 |
| Width | 130mm |
| Mount Type | Base |
| Series | SDS |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -5°C |
| Switching Current | 63A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red |
| Number of Poles | 3 |
| Standards/Approvals | EN/IEC |
| Switching AC Voltage | 690V ac |
| Switching Power | 30kW |
Key Features
- The switch is rated for 63A switching current and 30 kW switching power.
- Constructed with a stainless steel enclosure suitable for indoor and outdoor use.
- Features a mechanical interlock preventing enclosure removal when padlocked in the off position.
- Designed for 3-phase electrical systems with a 690V AC voltage rating.
- Includes red handle color and screw terminal type for secure connections.
- Supports auxiliary contacts and padlock compatibility for enhanced safety.
- Operates reliably between -5°C and 40°C ambient temperatures.
- Compliant with BS EN 60947-3 and IEC standards.
Product Description
Craig & Derricott SDS633N/RS is a 3-pole base isolator switch designed for industrial and commercial electrical applications requiring high safety and durability. This isolator switch features a robust stainless steel enclosure providing IP65 ingress protection, making it ideal for harsh indoor and outdoor environments exposed to dust and water.
Rated for a switching current of 63 amps and switching power of 30 kW, it supports three-phase electrical systems at up to 690 volts AC. The switch includes a red handle for clear operation indication and screw-type terminals ensuring a secure electrical connection.
One of the notable safety features is its mechanical interlock that prevents the removal of the enclosure cover when the switch is in the off position and padlocked, enhancing operator safety in hazardous environments. Auxiliary contacts are available for signaling, and the switch is compatible with padlocks to allow secure locking when necessary.

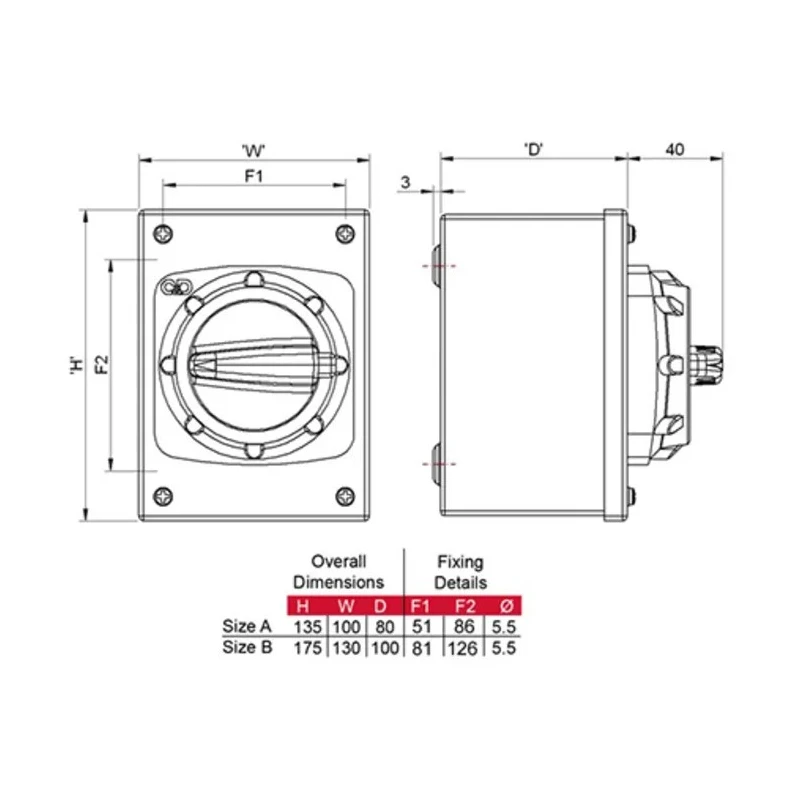

The device operates efficiently within temperature ranges from -5°C to 40°C, ensuring reliability over varied industrial ambient conditions. Its dimensions of 175mm length, 130mm width, and 100mm depth make it compact for integration in control panels.
Compliant with international standards BS EN 60947-3 and IEC, this isolator switch is manufactured in the United Kingdom, guaranteeing quality and performance expected in demanding electrical installations.
63 amp rated switching current suitable for heavy electrical loads. Stainless steel enclosure offers superior protection and durability. Mechanical interlock and padlock compatibility promote operational safety. Auxiliary contacts available to support control and indication circuits.
Wide operating temperature range from -5ºC to 40ºC. Compliant with BS EN 60947-3 and IEC standards for electrical switchgear. Compact dimensions facilitate easy panel integration. Designed for 3-phase electrical circuits with 690V AC rating.
This Craig & Derricott Isolator Switch is suitable for applications in industrial automation, electrical panels, manufacturing facilities, HVAC systems, and other environments requiring secure and reliable electrical isolation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for a maximum switching current of 63A.
It is designed for three-phase electrical systems with a voltage rating of up to 690V AC.
The switch has a switching power capacity of 30 kW.
The dimensions of the switch are 175mm in length, 130mm in width, and 100mm in depth.
It features a stainless steel enclosure that provides IP65 ingress protection, suitable for both indoor and outdoor use.
It includes a mechanical interlock that prevents the removal of the enclosure cover when padlocked in the off position, enhancing safety.
It operates reliably within a temperature range of -5°C to 40°C.
The switch uses screw-type terminals for secure electrical connections.
Yes, it is compliant with BS EN 60947-3 and IEC standards for electrical switchgear.
The handle of the switch is red, providing clear operation indication.
Yes, it supports auxiliary contacts for signaling purposes.
It is suitable for applications in industrial automation, electrical panels, manufacturing facilities, and HVAC systems.
