Craig & Derricott EMSH Series Pull Release Emergency Stop Push Button, Surface Mount, SPDT, IP65 EMSH/P/MR/CO

Craig & Derricott EMSH/P/MR/CO Emergency Stop Push Button is a durable surface mount safety switch designed for quick pull release actuation in industrial and commercial applications.

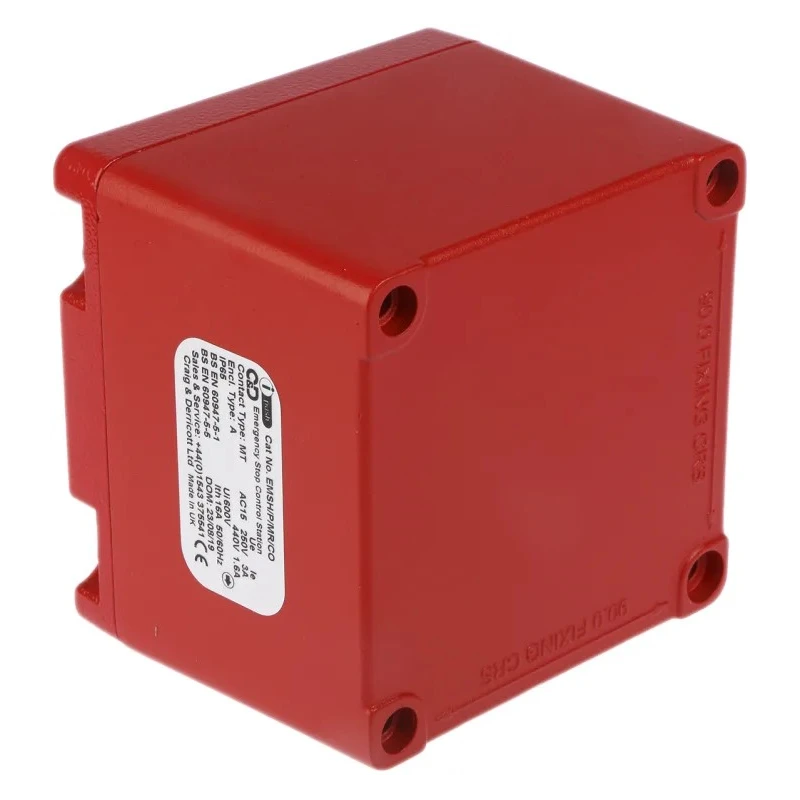

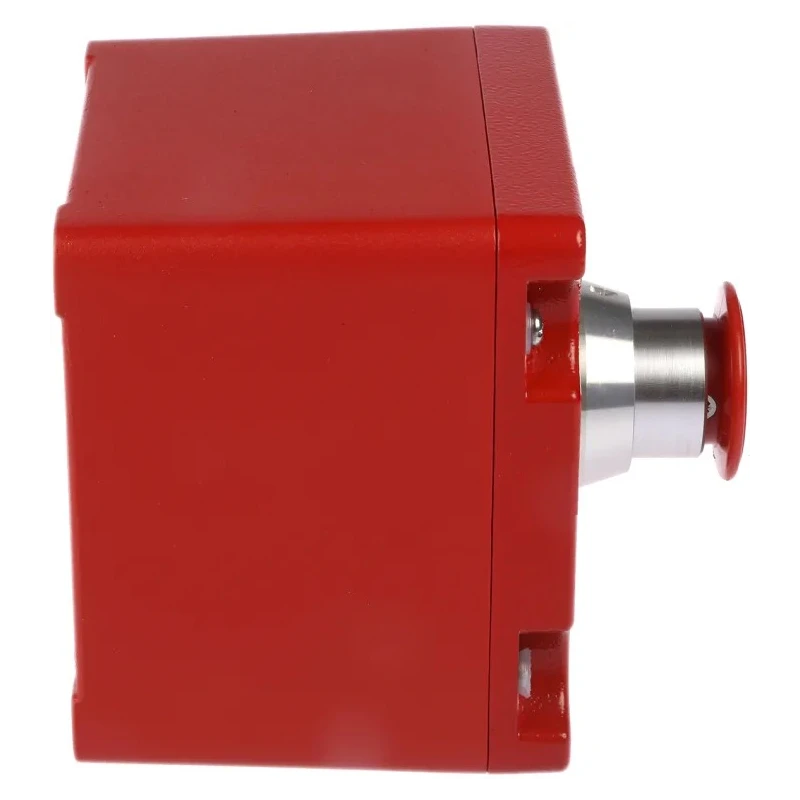

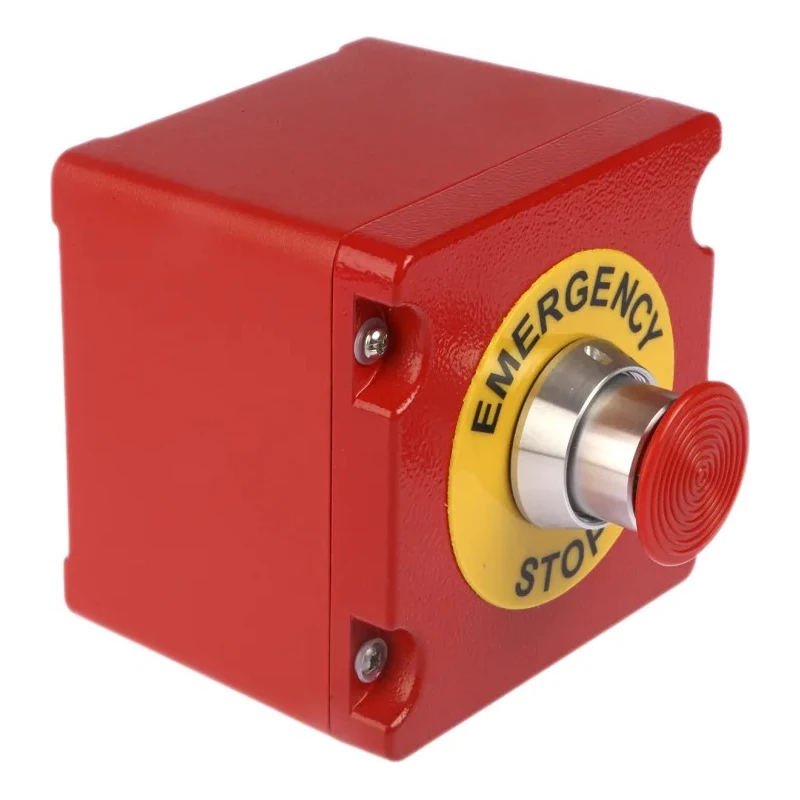

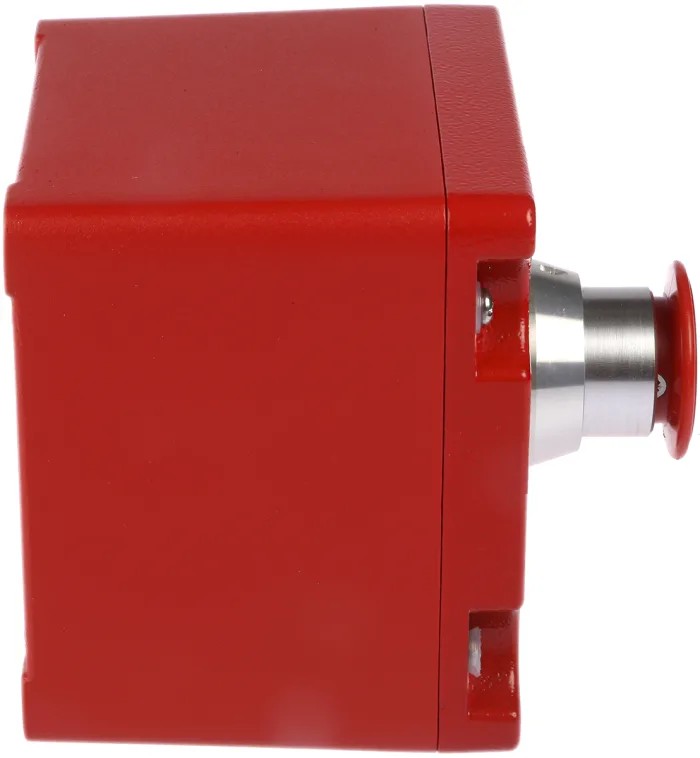

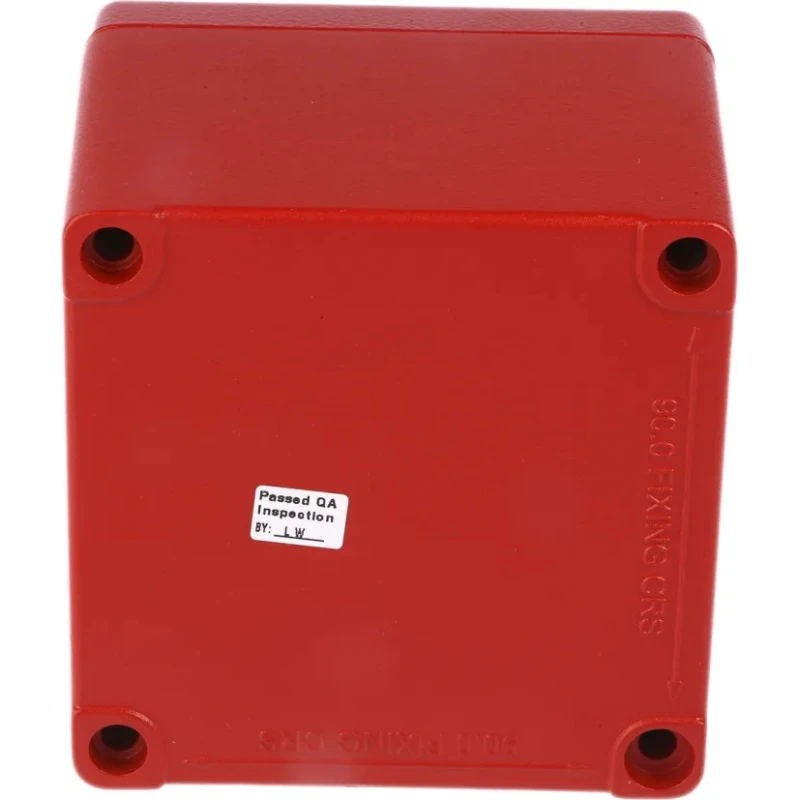

The emergency stop push button features a red mushroom style head with a 38mm diameter, manufactured from robust plastic material mounted on a die cast aluminium housing for enhanced strength and protection.

This push button switch uses a SPDT contact configuration rated for 16A at 250V, with a contact voltage rating of 440V AC/DC providing reliable operation under demanding electrical loads.

Designed to meet stringent safety and performance standards, the EMSH series complies with BS EN 60947-5-1, BS EN ISO 13850, IEC 60947-5-5, IEC 60204, and IEC 60947-5-1, providing assurance of quality and compliance with international regulations.

The device is rated IP65 for ingress protection, offering dust tight and water resistant encapsulation suitable for industrial environments, ensuring safety and reliability under harsh conditions.

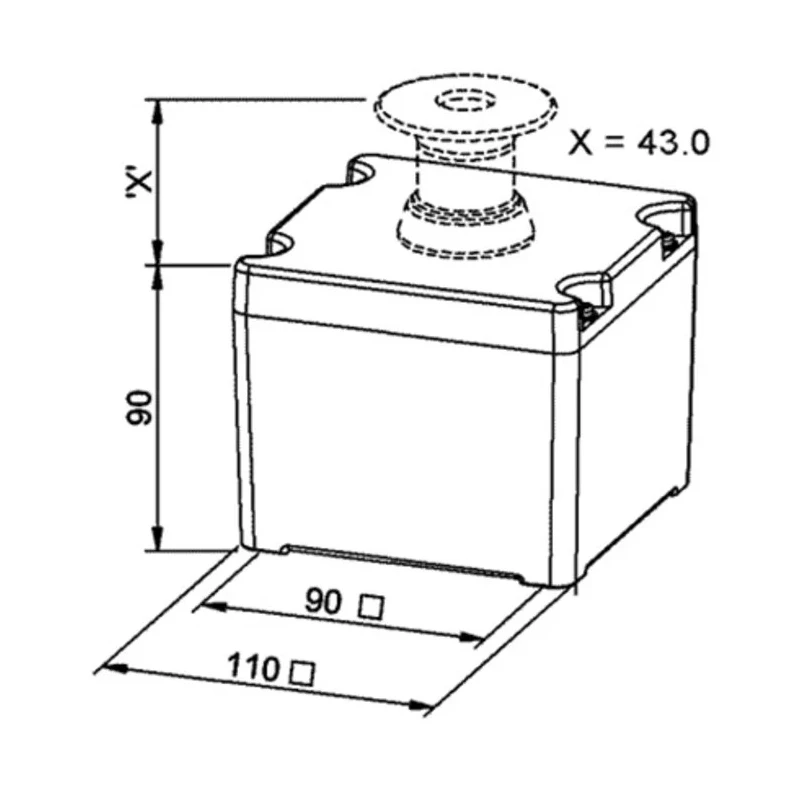

With cable entry configured for M20 size and dimension of 110mm length, 110mm width, and 133mm depth, this Emergency Stop Push Button is compatible with a wide range of setups and control panels.

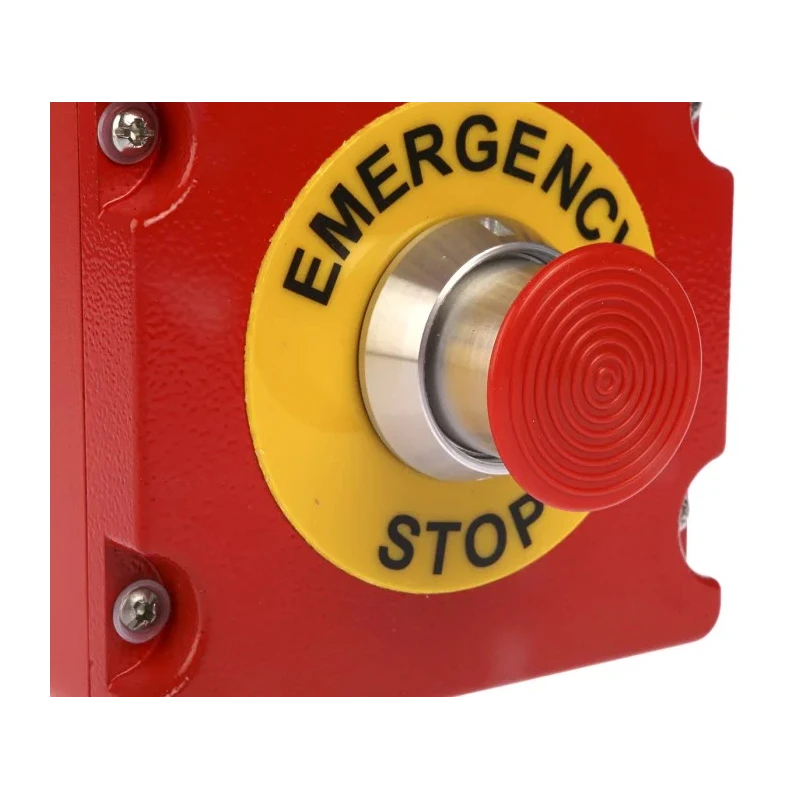

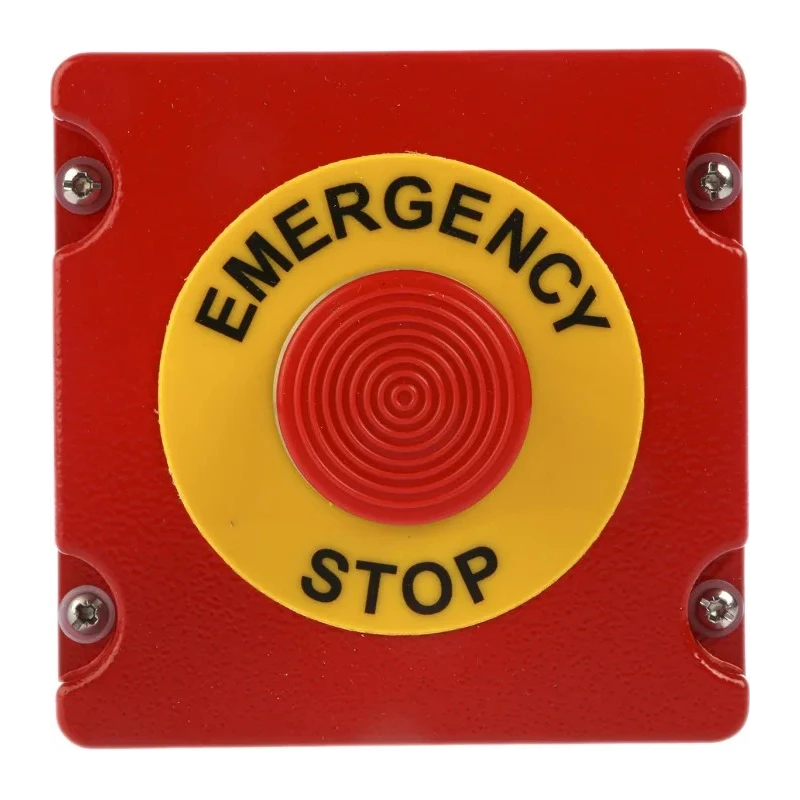

This product is non-illuminated and designed for pull release actuation, enabling immediate restore functionality after an emergency stop event. The red mushroom head provides a clear and visible emergency stop signaling element.

Manufactured in the United Kingdom, the EMSH/P/MR/CO is ideal for industrial automation, manufacturing lines, electrical control gear, and safety signaling applications across various sectors including laboratories, construction, and HVAC.

The push button features a red mushroom style head with a 38mm diameter. It has a die cast aluminium housing providing robust protection. The actuation method is pull release, ensuring reliable emergency stop function. Contact ratings support up to 440V AC/DC and 16A current.

This emergency stop switch is non-illuminated and rated to industry standards including BS EN 60947-5-1 and IEC 60947-5-5. The switch dimensions measure 110mm in length, 110mm in width, and 133mm in depth. Cable entry is via an M20 fitting suitable for most installations.

Designed for industrial use with IP65 ingress protection against dust and water. Produced in the United Kingdom to high quality standards. Explore more high-quality push button switches and safety devices in the Electronics & Electricals category on EnvMart.
