RS PRO Twist Release Emergency Stop Push Button Panel Mount 22 mm Cutout 1 NC IP65 242-0836

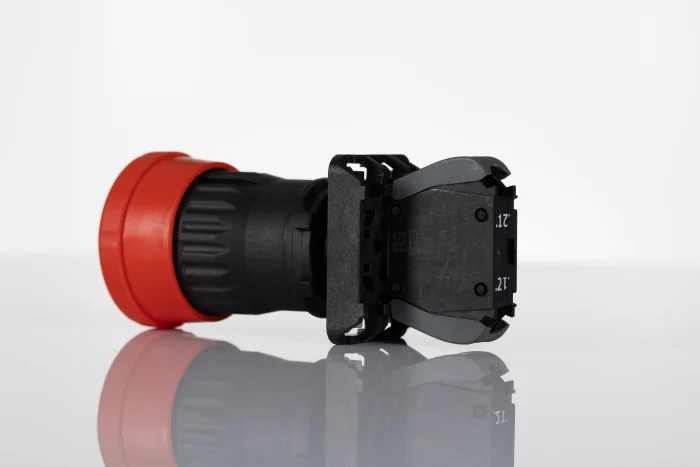

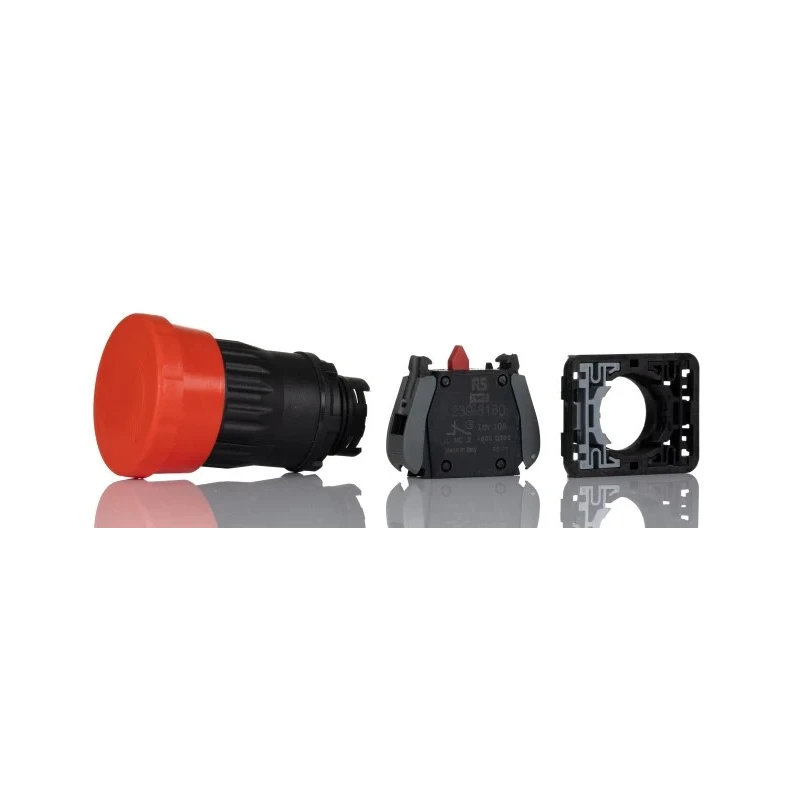

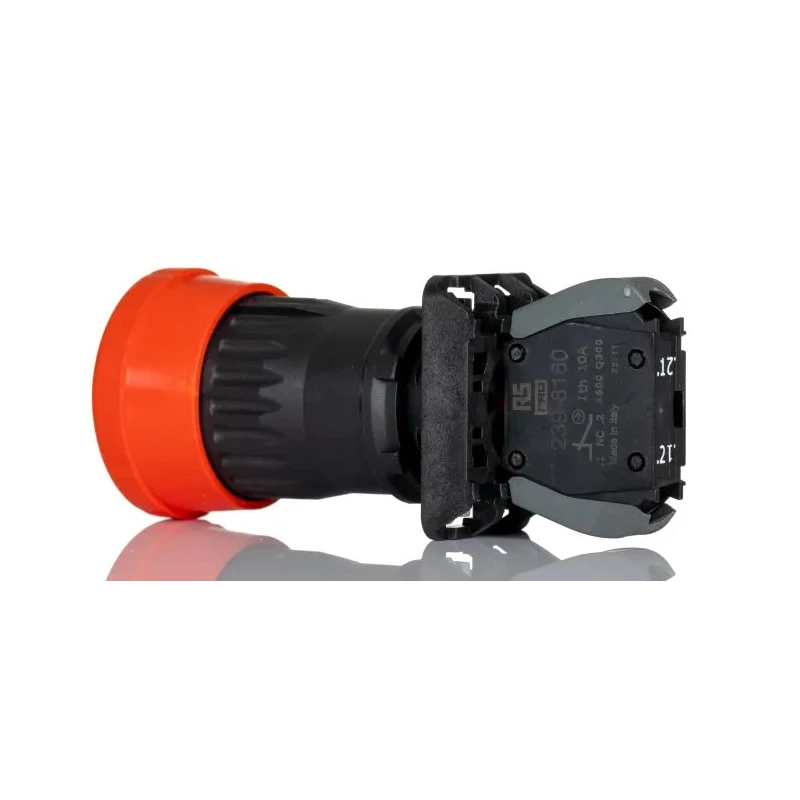

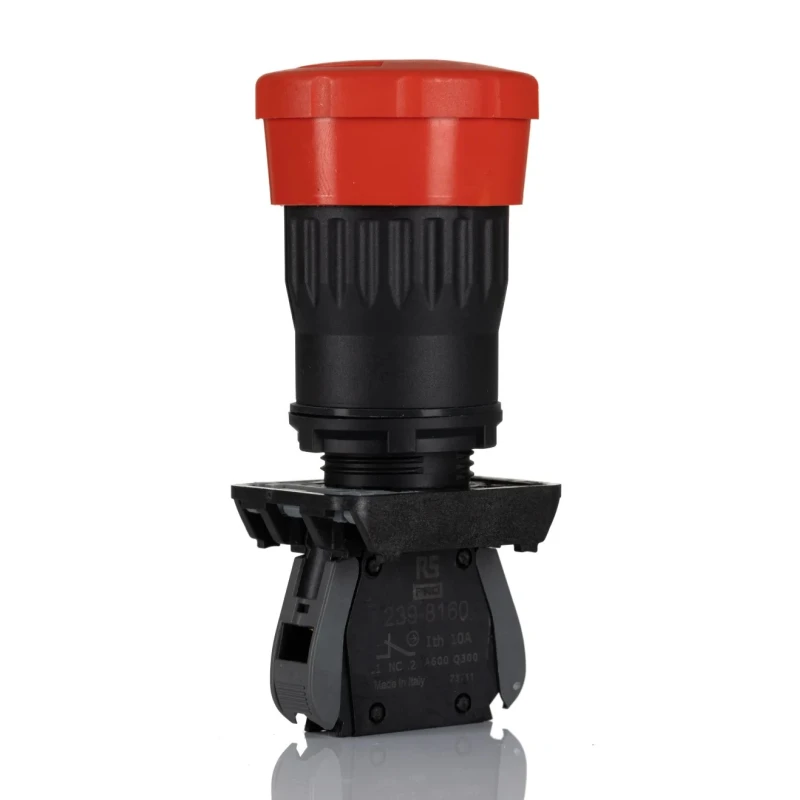

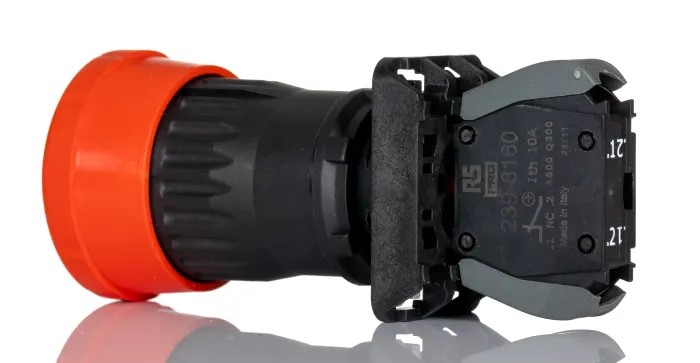

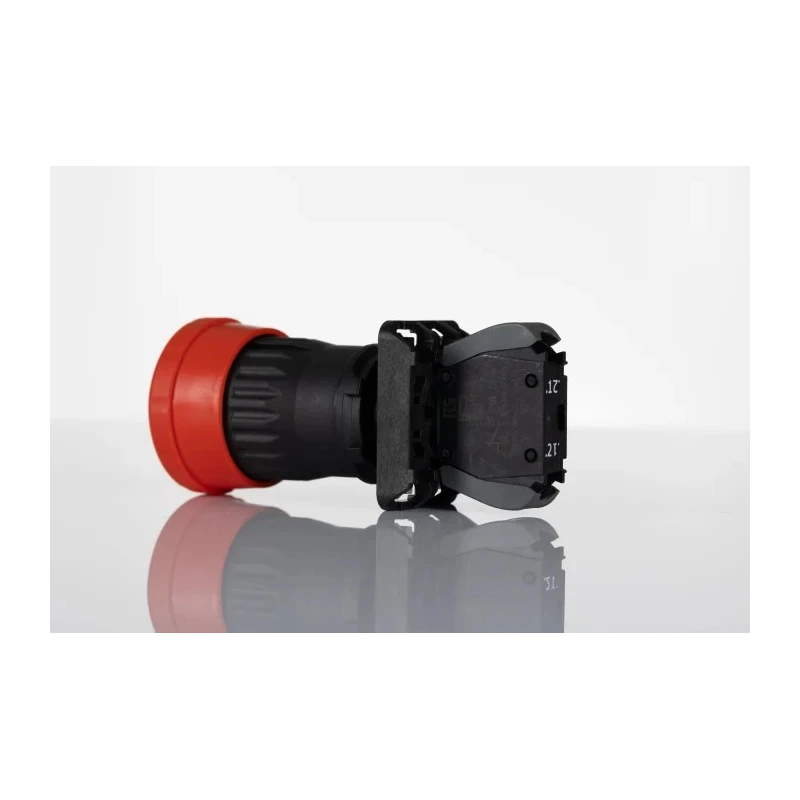

RS PRO 242-0836 Twist Release Emergency Stop Push Button is a robust panel mount safety device designed to halt equipment operations instantly in hazardous conditions. It features a durable thermoplastic housing and a distinctive red mushroom head with a 40 mm diameter, ensuring high visibility and fast actuation.

The push button uses a twist release mechanism, providing secure and deliberate reset after emergency activation. Equipped with a 1 NC contact configuration, this device reliably interrupts electrical circuits to eliminate risk. The cutout size of 22 mm enables straightforward installation into standard control panels.

This emergency stop button is rated IP65, protecting against dust ingress and low-pressure water jets, making it suitable for a variety of industrial environments including automotive, manufacturing, building, public works, and medical equipment applications.

Connection terminals are screw types with captive cable clamps, enhancing safety during wiring. It complies with international standards IEC 60947-5-1 and IEC 60947-5-5, ensuring reliable performance and safety compliance worldwide.

This emergency stop push button features a twist release actuation for secure operation. It has a panel cutout diameter of 22 mm suitable for standard mounting holes. The push button offers a 1 NC (normally closed) contact configuration for reliable circuit interruption.

The housing and push button are made from durable thermoplastic material. Designed with a mushroom-style red head with a 40 mm diameter for easy identification and actuation. The unit meets IP65 rating, ensuring protection against dust and water ingress.

Terminal connections are screw type with captive cable clamps for secure wiring. Certified compliant with IEC 60947-5-1 and IEC 60947-5-5 standards. Non-illuminated push button designed for emergency stop functionality in industrial environments.

Made in Italy, ensuring high manufacturing standards and quality control.

This Emergency Stop Push Button is ideal for ensuring operator safety and equipment protection in industrial control systems. It is trusted across automotive, industrial controls, lighting controls, and medical sectors for reliable emergency shutdown capability.
