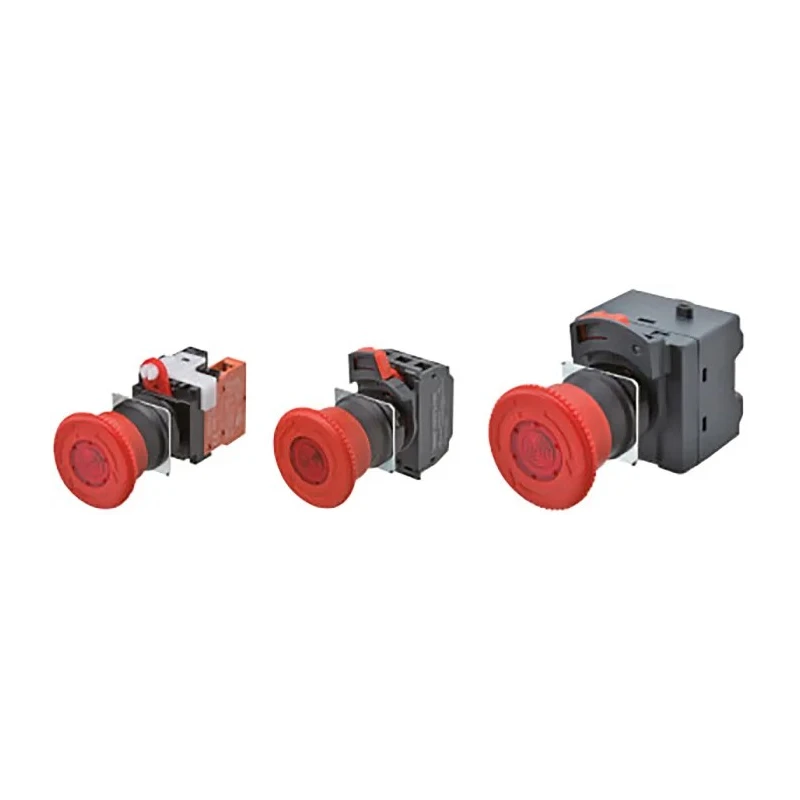

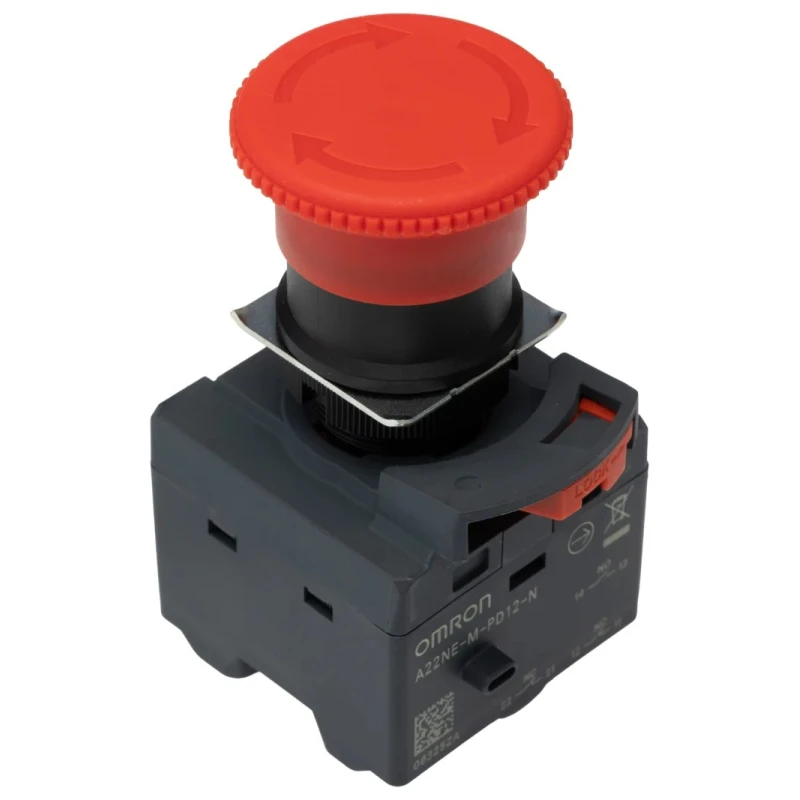

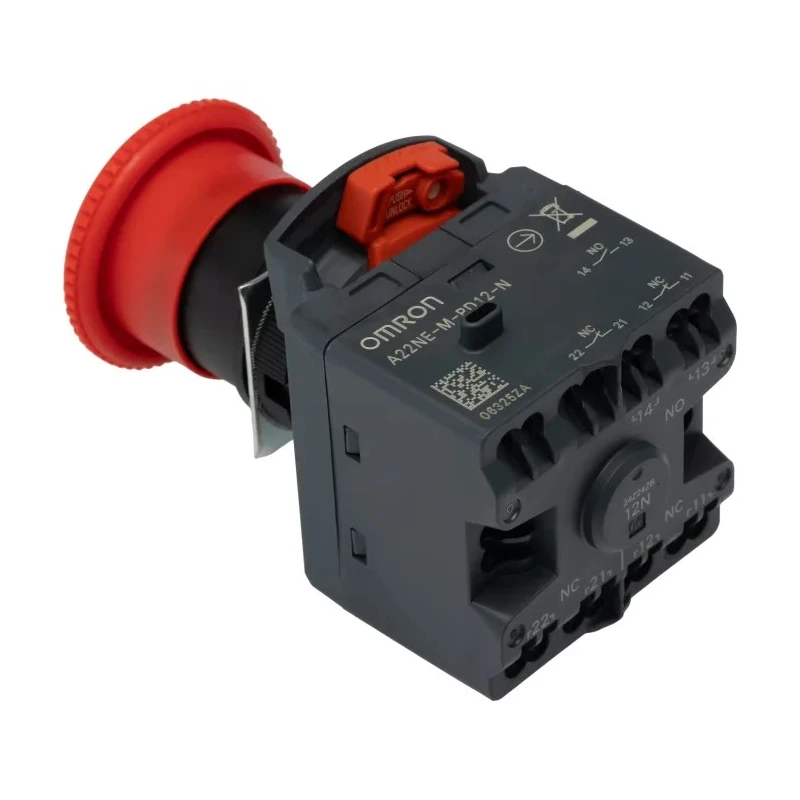

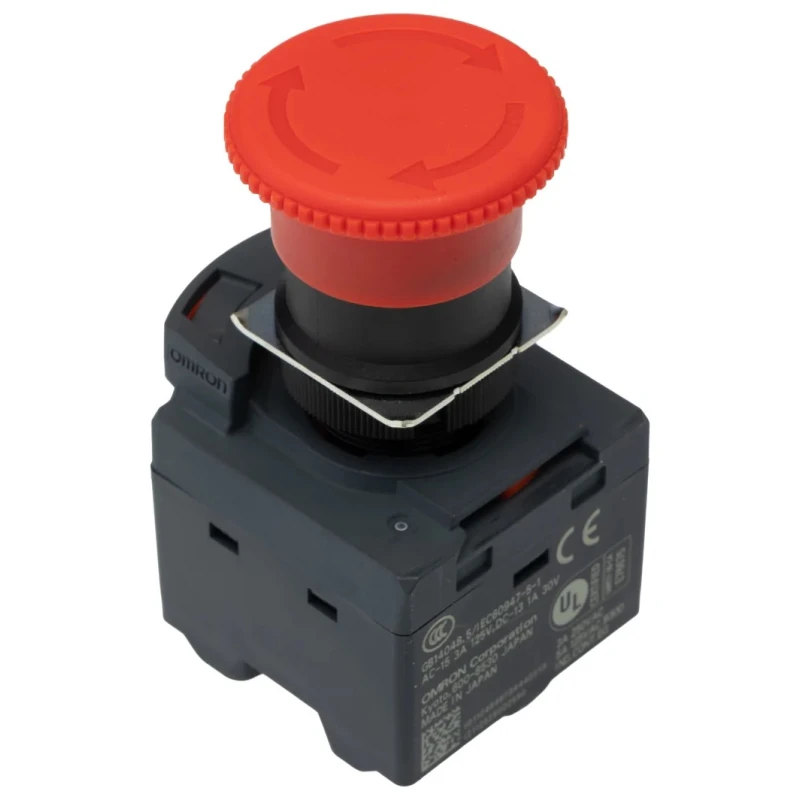

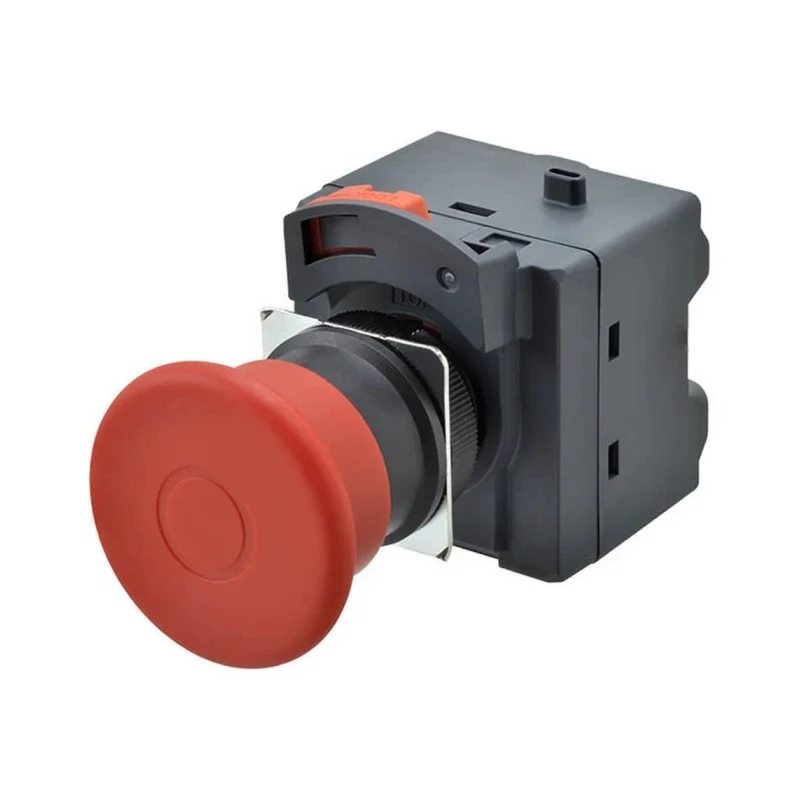

Omron Emergency Stop Push Button 22 mm Panel Mount, 2 NC/1 NO Contacts, Turn Reset Actuation, IP69K, IP65 A22NE-M-PD12-N

Omron A22NE-M-PD12-N Emergency Stop Push Button is a manually operated safety switch designed for quick shutdown in industrial automation environments. Featuring a robust red actuator and a panel mount form factor with a 22 mm cutout diameter, this push button ensures rapid emergency stop recognition.

The switch employs a turn-reset mechanism that requires deliberate action to reset, thus preventing accidental startup after actuation. It incorporates two normally closed (NC) contacts for safety circuit interruption and one normally open (NO) contact for auxiliary signaling.

Constructed to IP69K and IP65 standards, the push button protects against ingress of dust and water jets, suitable for harsh factory floor or outdoor conditions. Push-in terminal technology enables efficient wiring, augmenting installation speed and reliability.

Common applications include emergency shutdown controls on assembly lines, local stop controls in electrical control cabinets, conveyor system safety stops, and safety isolation for machine tools and mechanical press stations in workshops.

The compact depth of 87 mm behind the panel facilitates easy mounting in tight control layouts. The device is non-illuminated and features a durable 40 mm head diameter for ergonomic operator use.

This red push button provides rapid visual identification for emergency stops. The turn-reset actuation prevents accidental re-engagement after emergency activation. Two normally closed and one normally open contacts enable comprehensive safety and auxiliary control circuits.

Push-in terminals allow fast and secure wiring connections without screws. The compact panel mount design simplifies integration in control enclosures and electrical cabinets. IP69K and IP65 ingress protection ensures performance in dusty and wet industrial conditions.

The device is suitable for factory automation, conveyor systems, mechanical press stations, and machine tool safety isolation.

The Omron A22NE-PD series exemplifies reliable emergency stop control for industrial, manufacturing, and automation applications requiring high ingress protection and positive reset action. Explore related industrial control components and safety products in EnvMart’s Switches & Sockets category for comprehensive system design.
