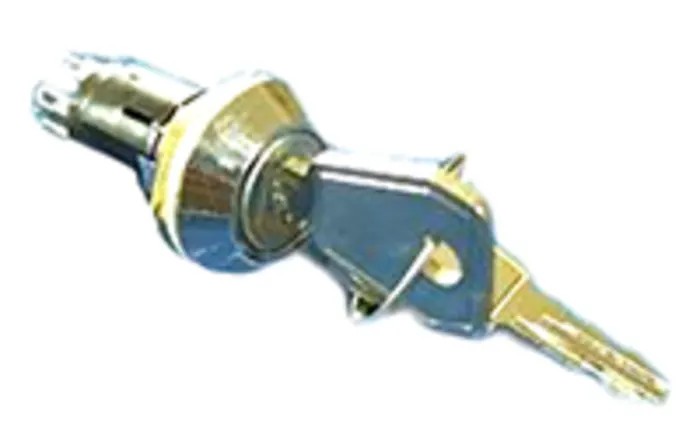

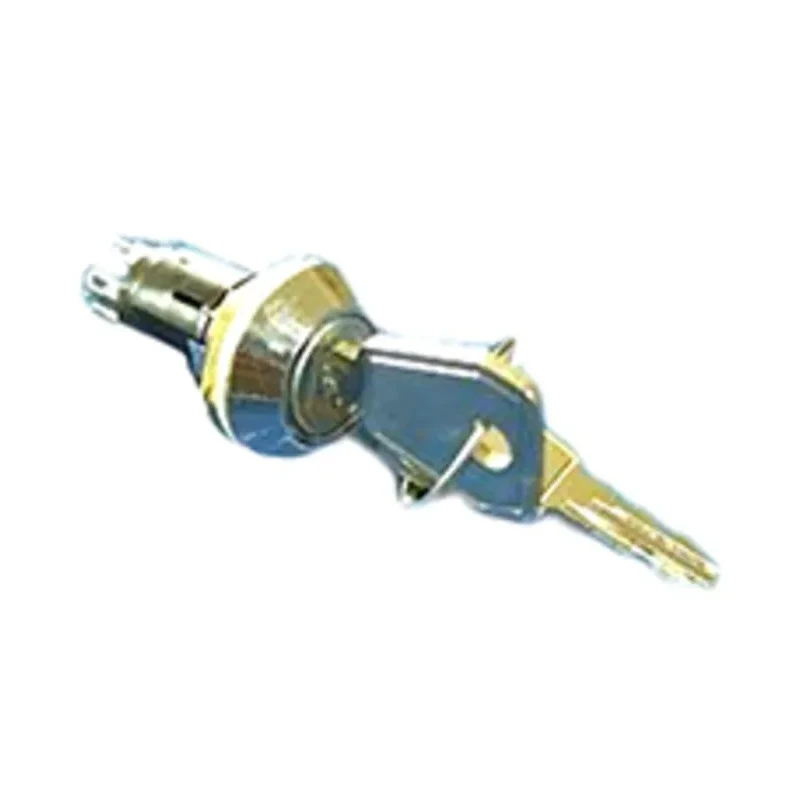

Lorlin IP66, IP67 Sealed Keylock Switch SPST 1A 3-Way Common-Key WRL-5-F-D-2-RS

Lorlin WRL-5-F-D-2-RS is an IP66 and IP67 rated sealed keylock switch designed for robust electrical and automation applications. It features a miniature 16mm key lock mechanism with single pole single throw (SPST) contact configuration, rated for 1A current, and three distinct key positions.

The switch housing is constructed from high-quality polyamide 66, providing excellent resistance to environmental factors. Contacts are made from brass CZ108, ensuring reliable conductivity and wear resistance. The device supports both 24V DC and 115V AC contact voltages, making it versatile for diverse electrical systems.

With latching action and a 90° key index angle, the switch offers secure, repeatable operation. Its IP66 and IP67 ingress protection ratings make it suitable for use in marine and other demanding environments. The operational temperature range from -20°C to +65°C allows the switch to perform effectively across various industrial climates.

The compact round bezel design and solder terminals facilitate simple panel mounting with less than 30mm rear projection, optimizing space usage. The switch keys are double entry, allowing insertion in either orientation, enhancing user convenience. Two keys are supplied per switch, with options for common keying or individual key differs.

This switch is compliant with RoHS regulations and has a mechanical life expectancy of 10,000 cycles, ensuring reliable long-term use. Made in the United Kingdom, it is ideal for use in industrial automation, electrical panels, HVAC systems, construction equipment, and marine applications.

The miniature 16mm design allows for compact installations. IP66 and IP67 rating protects against dust and water ingress. Durable polyamide housing withstands harsh industrial environments. Supports single pole single throw (SPST) contact configuration at 1A.

Double-entry keys provide flexible operation options. Suitable for temperatures from -20°C to +65°C. Includes two keys with options for common or different keying. Easy front panel mounting with minimal rear panel projection.

Wide applications including marine, automation, and electrical systems. Explore Lorlin key switch products at EnvMart for reliable and secure switching solutions in challenging industrial environments.
