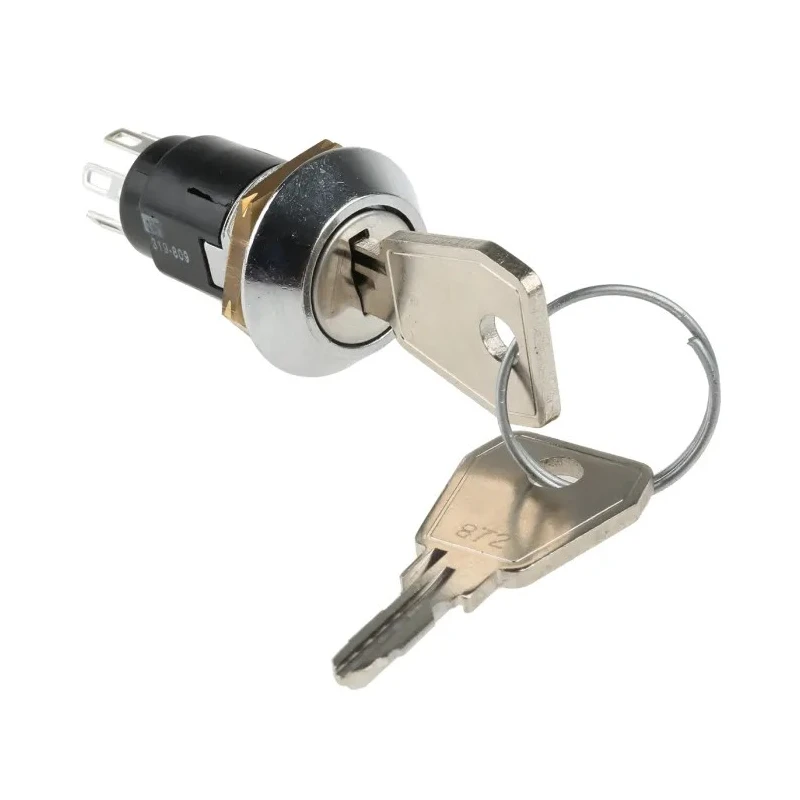

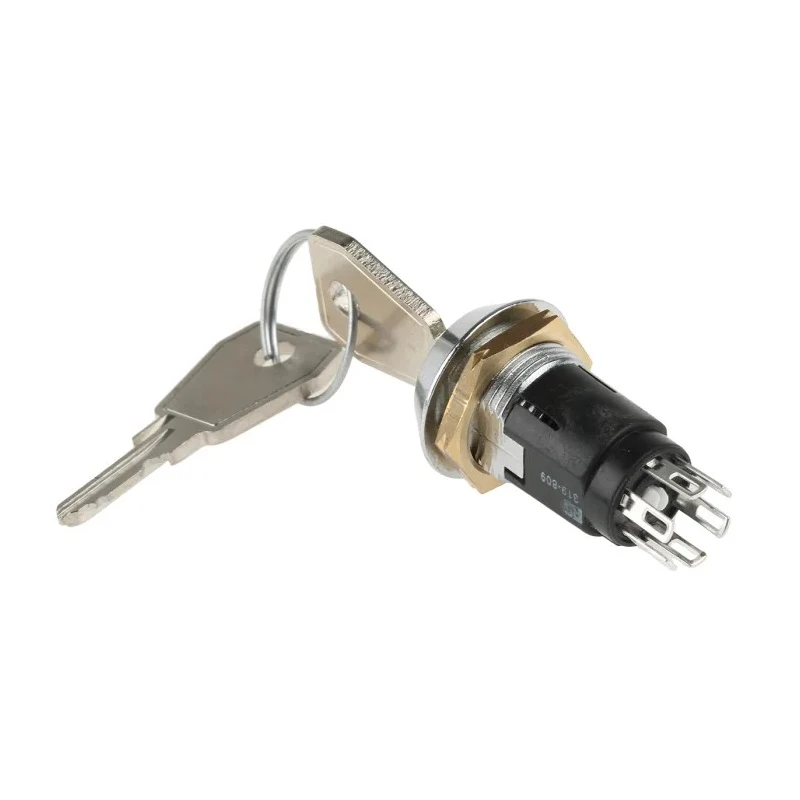

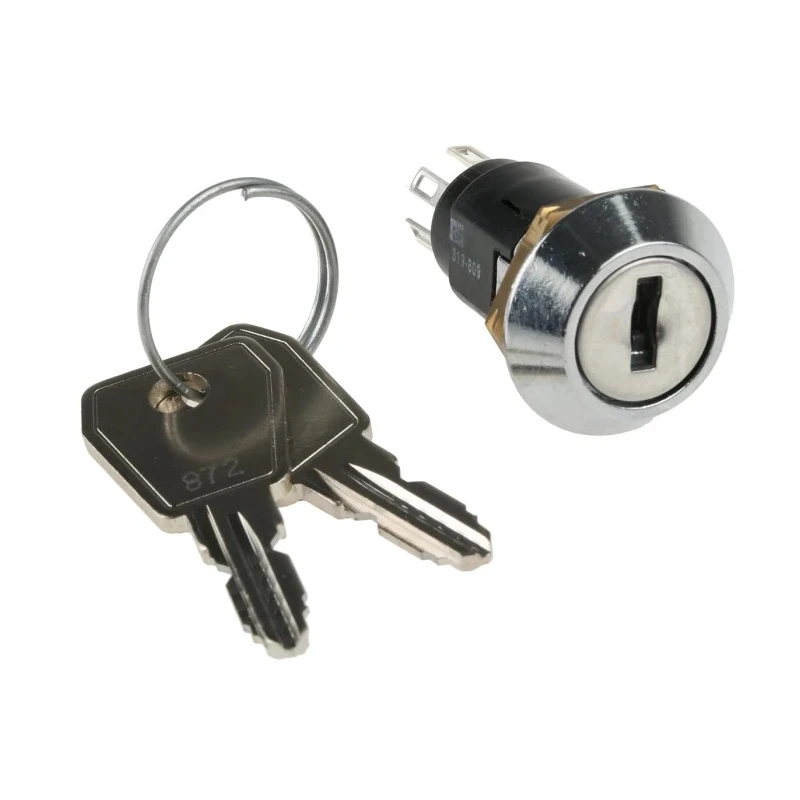

Lorlin Key Switch, Double Pole Double Throw (DPDT) 1A 24V DC / 240V AC, 2-Way Random-Key SRL5MD2

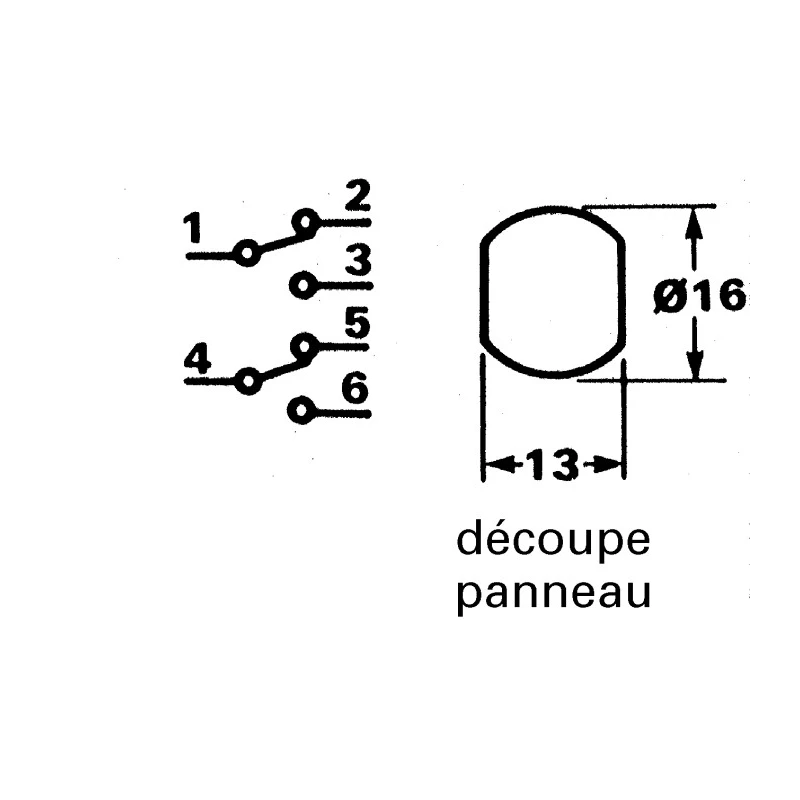

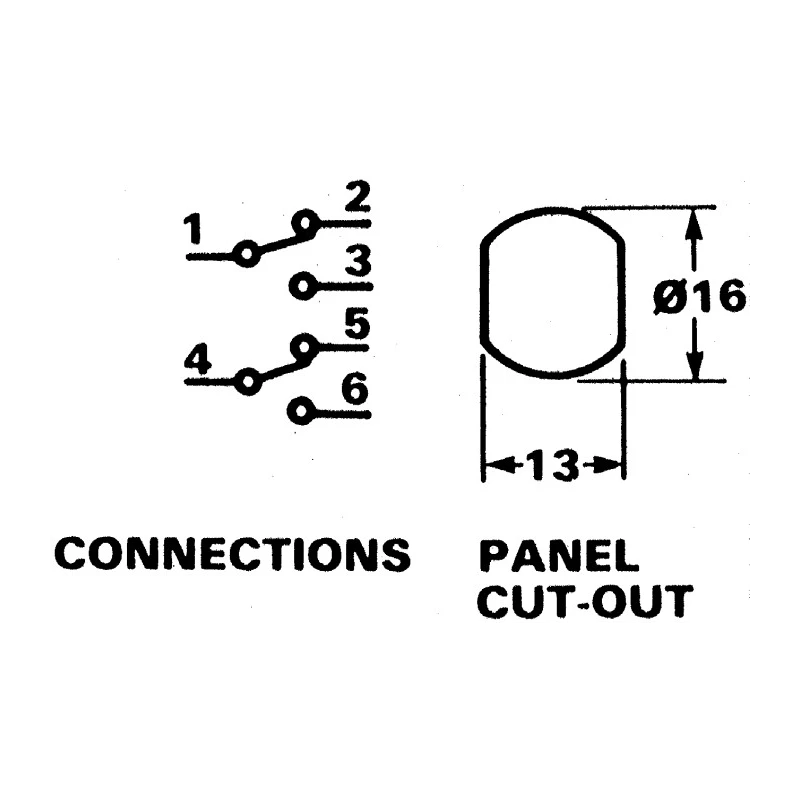

The Lorlin SRL5MD2 Key Switch is a professional-grade, miniature key-operated lock switch engineered for industrial and commercial control panels and low voltage switching applications. This DPDT (Double Pole Double Throw) switch carries a 1 ampere contact rating suitable for 24V DC and 240V AC circuits, ensuring dependable operation in electrical automation tasks.

The robust zinc alloy construction with a round bezel facilitates easy front-panel assembly, while its compact design features a rear projection of less than 30 millimeters, optimizing space utilization.

With 2 key positions and random key trapping functionality, the switch secures against unauthorized operation. Its keys support double entry, allowing insertion both ways, and up to 200 key combinations are achievable for enhanced security. Silver-plated brass contact materials ensure excellent conductivity and durability with a mechanical life expectancy of 10,000 cycles.

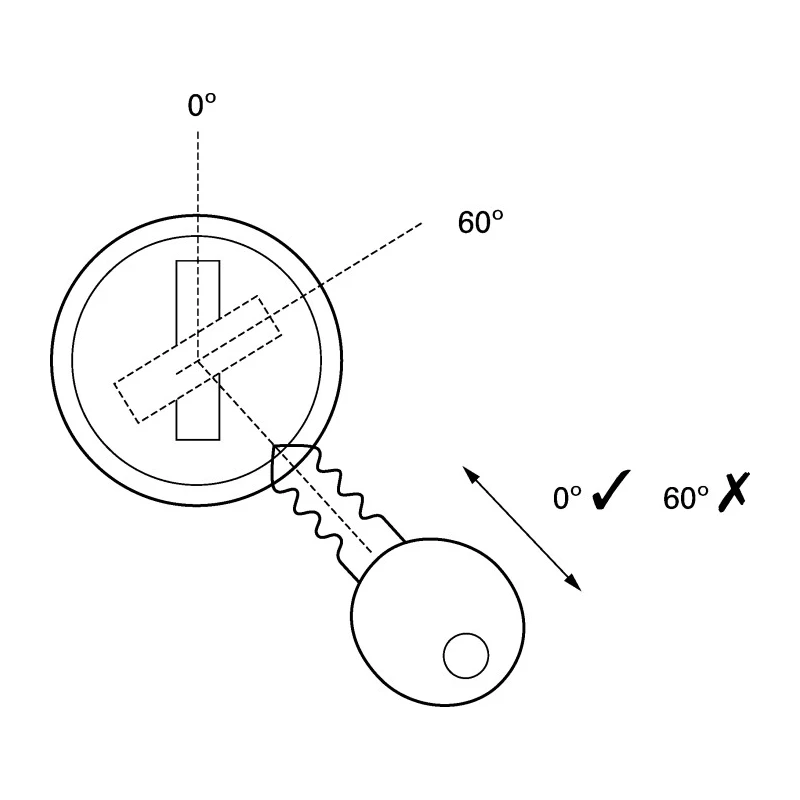

The operating temperature range of -20 to 65 degrees Celsius supports use across diverse environmental conditions. Connections use solder terminals for reliable contact, and the 60-degree key index angle offers precise control alignment.

Compliant with RoHS requirements and standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, this key switch is ideal for industrial automation, lighting control panels, and other commercial electrical switching functions.

The key switch features 2 switching positions with random key trapping for secure operation. It supports up to 200 key combinations, with double entry keys insertable either way. The zinc alloy housing and round bezel ensure robust durability and compact panel fitting.

Rated for 1A current at 24V DC and 240V AC, suitable for lighting and control panels. Silver-plated brass contacts deliver reliable conductivity and mechanical life up to 10,000 cycles. Operating temperature range from -20°C to 65°C accommodates varied environmental conditions.

Terminals are solder type for secure electrical connection. Key index angle is 60 degrees allowing precise control operation. Compact rear projection less than 30mm from panel for space-saving installations. Complies with RoHS directive and notable standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

This Lorlin Key Switch is a trustworthy choice for integration in industrial automation systems, electrical control panels, and lighting controls where secure and reliable switching is critical. Explore the Electronics & Electricals category at EnvMart for an extensive range of switches and controls to suit your applications.
