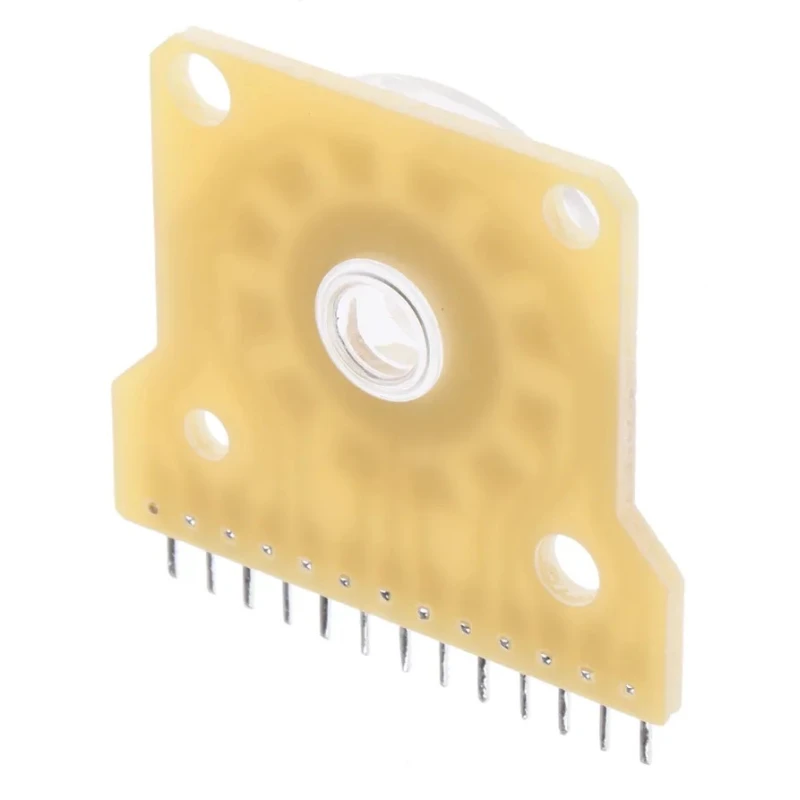

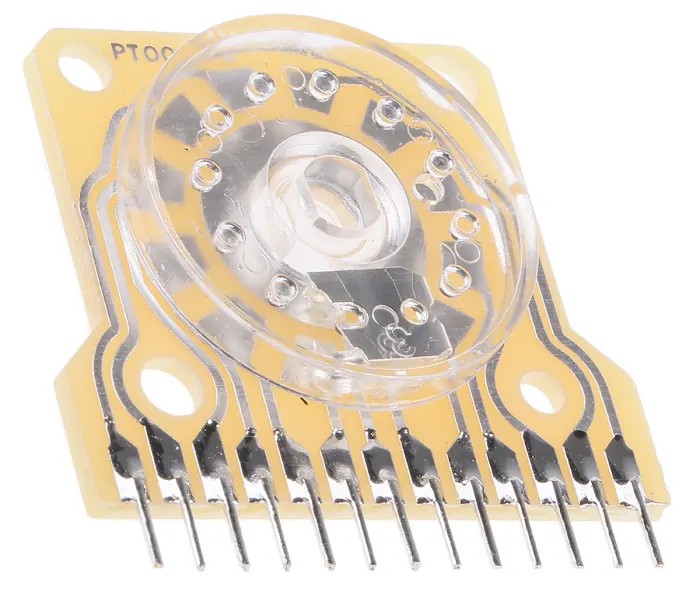

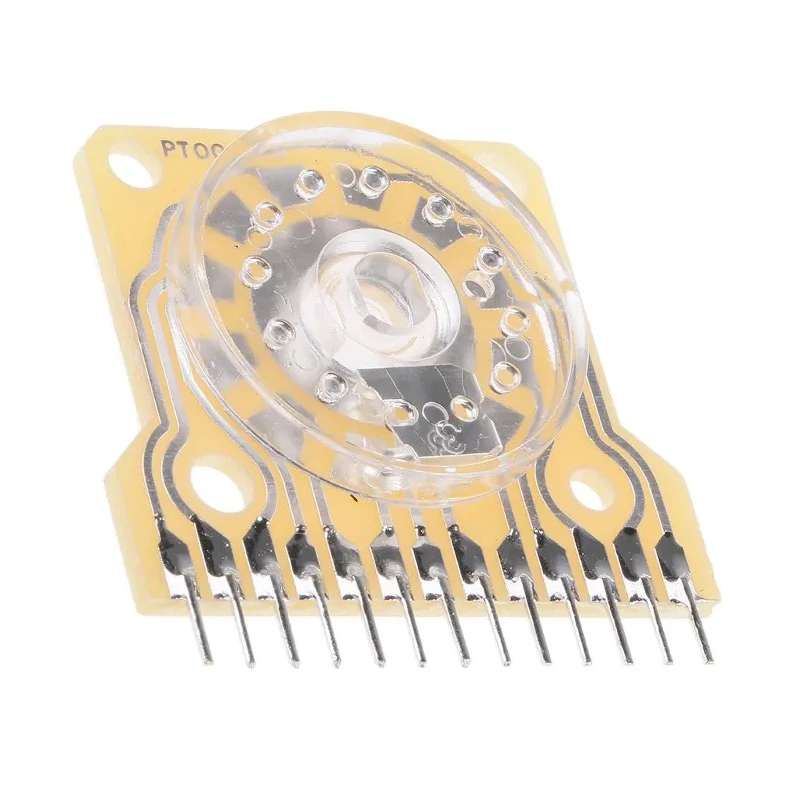

Lorlin Rotary Switch Wafer 12 Position 1 Contact, Non-Interchangeable Drive Wafer, PT602-001

Lorlin PT602-001 Rotary Switch Wafer is a precision electrical component designed for PCB switch kits with 12 selectable positions and a single contact.

This rotary switch wafer includes an adjustable stop mechanism and comes fitted with a non-interchangeable drive wafer to prevent accidental removal or misalignment during operation.

It accepts up to five additional wafers from a variety to expand switching capabilities. The shaft diameter of 6mm ensures compatibility with industry standards. Terminal spacing is designed on a 2.54mm pitch to suit PCB mounting requirements, delivering ease of integration into complex circuits.

All wafers are break before make type, ensuring that contacts separate cleanly and avoid simultaneous connection which could affect circuit integrity. A spacer kit is available separately to maintain a 6.35mm pitch between individual wafers, preserving mechanical spacing and electrical isolation in multi-wafer assemblies.

Manufactured to comply with RoHS standards, this switch wafer is made in the United Kingdom, reflecting high manufacturing quality and adherence to environmental regulations. Suitable for industrial automation, electrical control panels, laboratory instruments, and other applications requiring precise multi-position switching on PCBs.

The switch includes a non-interchangeable drive wafer for secure operation. Shaft diameter measures 6mm ensuring compatibility with standard shafts. The rotary switch allows adjustable stops and accepts up to five additional wafers.

Terminal spacing is on a 2.54mm pitch for PCB mounting. All wafers are break before make type for reliable contact separation. A spacer kit is available to maintain 6.35mm pitch between wafers. Constructed to RoHS standards and made in the United Kingdom.

Ideal for PCB switching assemblies in electrical and automation applications. Browse more Rotary Switch wafers and components at EnvMart for reliable electrical switching solutions.
