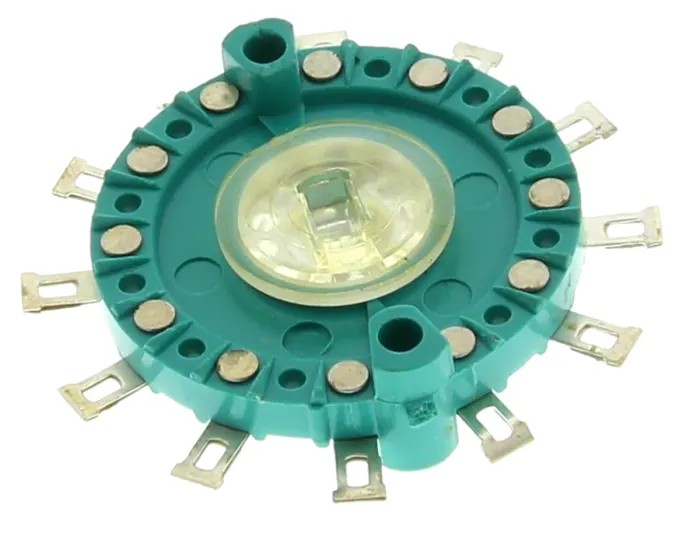

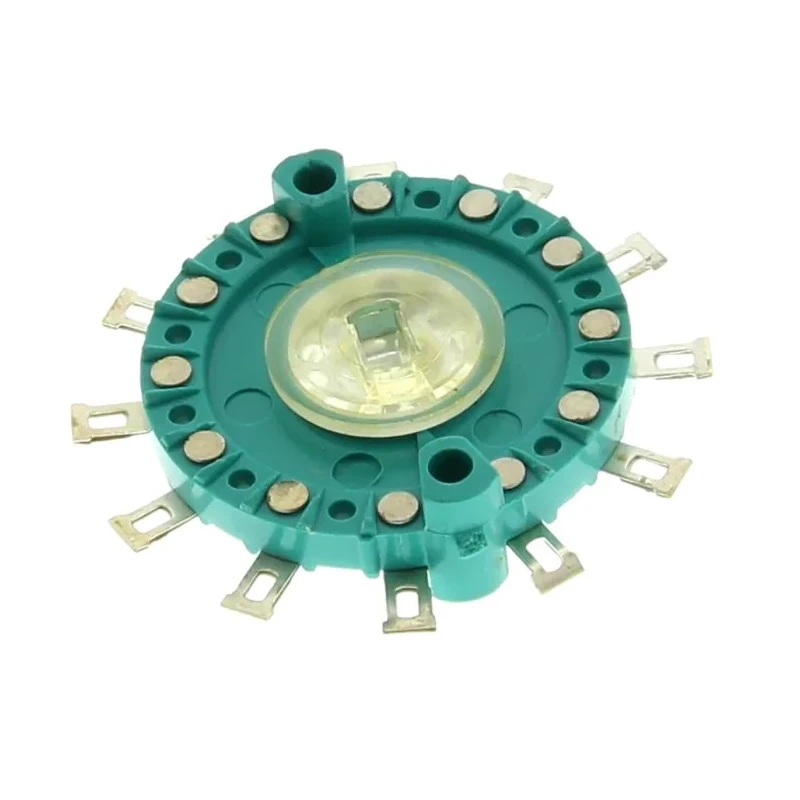

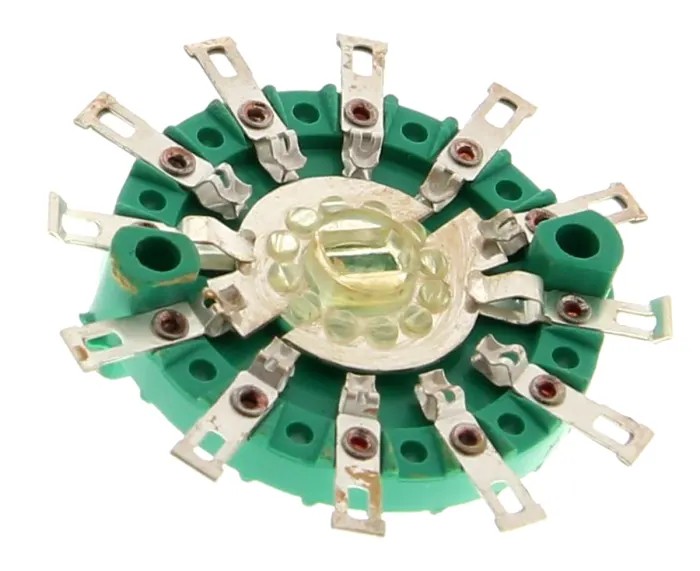

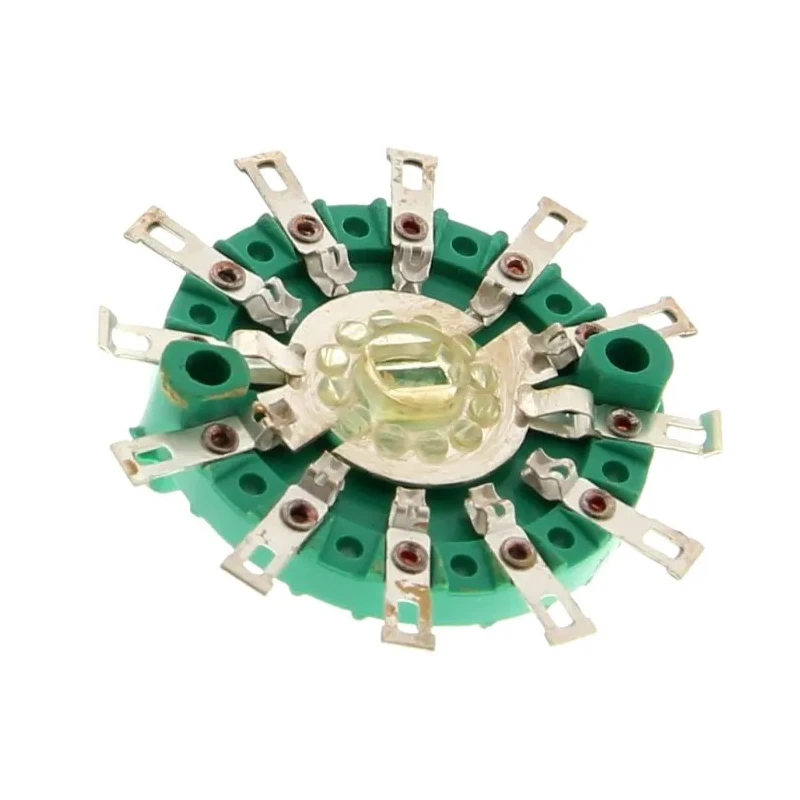

NSF Rotary Switch Wafer Industrial Equipment 25.4mm Diameter 5 Positions 2 Contacts 300V ac/dc 457847MA

NSF 457847MA Rotary Switch Wafer Industrial Equipment offers a compact design with a 25.4mm diameter and 5 selectable positions, supporting 2 contacts at 300V AC/DC voltage rating. It is tailored for industrial automation and control equipment requiring reliable rotational switching functions.

This miniature shaft assembly includes double-spring detent mechanisms ensuring robust operation with a life expectancy exceeding 100000 detent cycles. The switch features a 30° indexing system with adjustable end stops for precise shaft positioning during operation.

The assembly can accommodate up to 8 miniature wafers, though capacity is reduced if spacers or screens are used. The shaft diameter is 6mm with M10 x 0.75 mounting bushes, measuring an overall length of 94mm with a front shaft length of 12mm, enhancing ease of integration and installation flexibility.

The wafers are constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors, incorporating silver-plated contacts to ensure reliable electrical connectivity and durability. Available in break before make (BBM) and make before break (MBB) configurations, this switch wafer is suitable for various switching applications in industrial equipment.

Manufactured in the United Kingdom and compliant with RoHS standards, this product supports industrial automation, electrical controls, and instrumentation applications. Constructed for industrial equipment applications.

Designed with a miniature shaft assembly and double-spring detent mechanisms. Offers life expectancy exceeding 100000 detent operations. Includes 30° indexing and adjustable end stops for precise control. Supports up to 8 miniature wafers with 6mm diameter shaft and M10 x 0.75 mounting bushes.

Available in break before make (BBM) and make before break (MBB) versions. Wafers feature glass-fibre loaded diallyl phthalate stators and silver-plated contacts. Manufactured under RoHS compliance with UK origin.

This NSF rotary switch wafer is ideal for industrial automation, electrical switchgear, control panels, and other applications requiring robust rotary switching components. Explore more Rotary Switch products and components at EnvMart for tailored industrial solutions.
