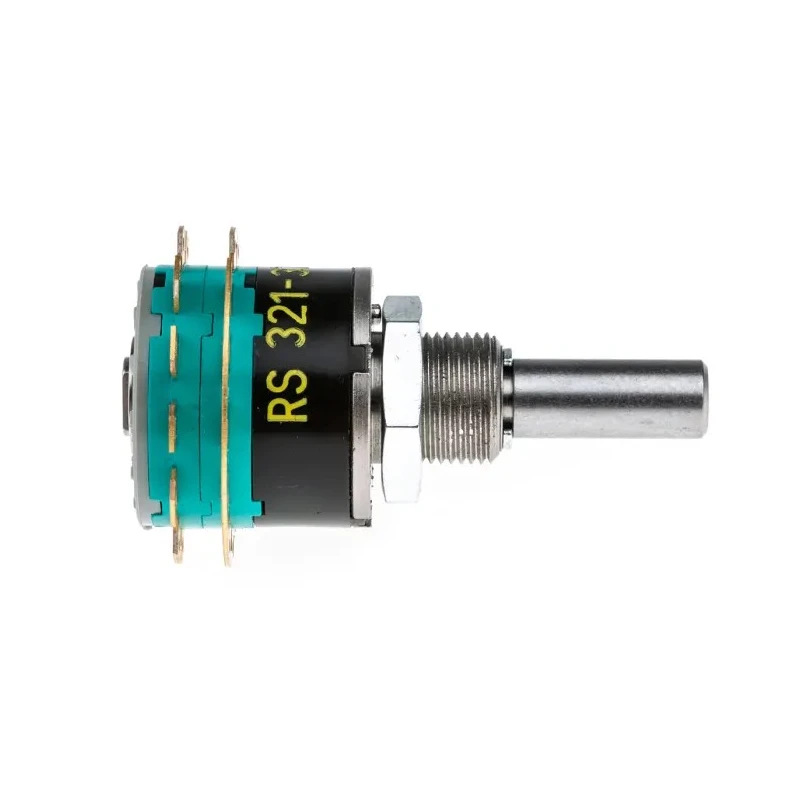

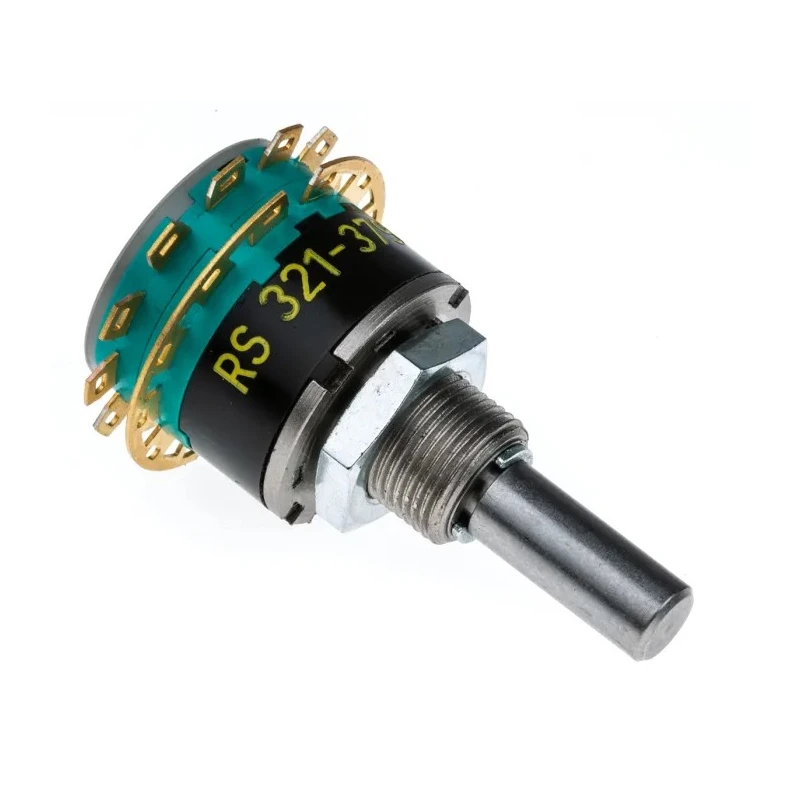

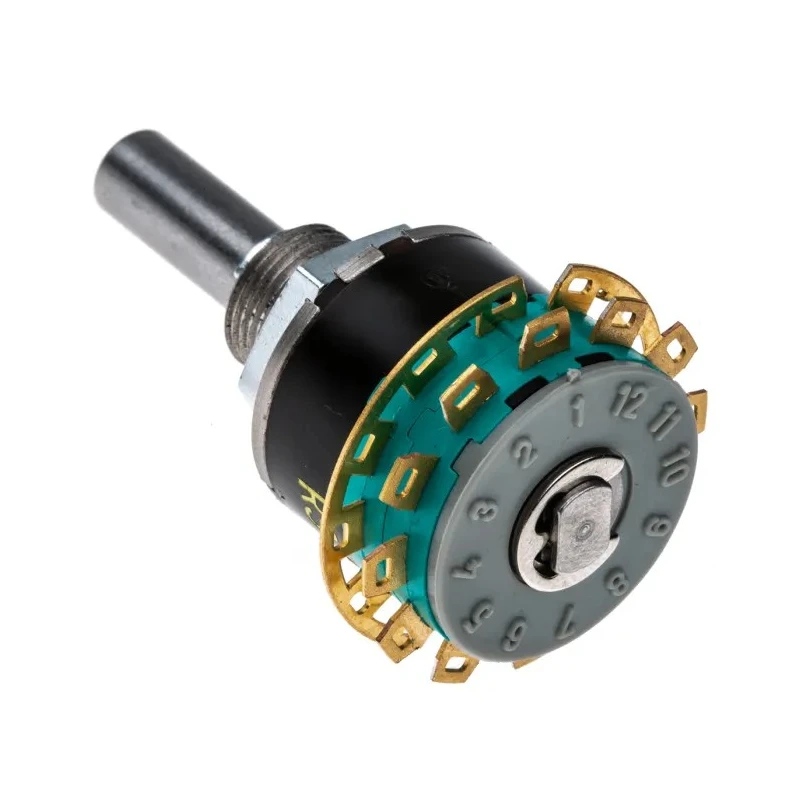

NSF GX Non Short DP6T Rotary Switch 250mA, Panel Mount, Solder Terminal, 125V AC, 60V DC DP6T

Free Delivery in India | Lowest Global Shipping Charges

NSF GX Non Short DP6T Rotary Switch 250mA, Panel Mount, Solder Terminal, 125V AC, 60V DC DP6T



Category Rotary Switches Brand NSF Condition New

Specifications

Country of Origin	Germany

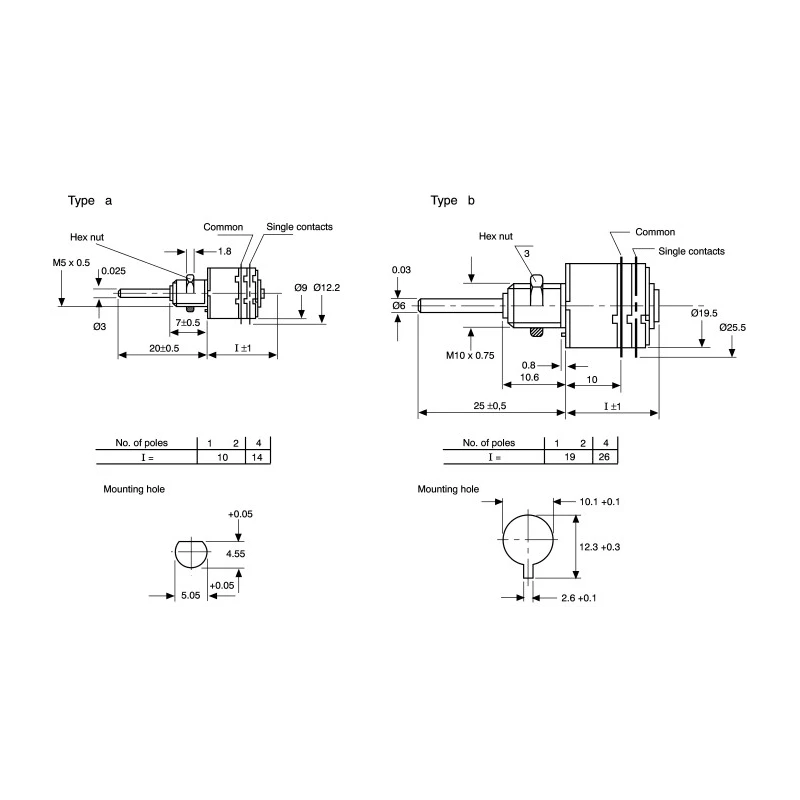

Diameter	25.5mm
Brand	NSF
Height	44mm
Model	DP6T
Mount Type	Panel
Housing Material	Diallyl Phthalate
Series	GX non short
Maximum Operating Temperature	85°C
Contact Configuration	DP6T
Minimum Operating Temperature	-40°C
Terminal type	Solder
Maximum dc Voltage	60V dc
Standards/Approvals	RoHS
Switch Contact Current	250mA
Mechanical Life	25000Operations
Maximum AC Voltage	125V ac
Angle of Throw	30 °
NSF GX non short, 6 Position 4P6T Rotary Switch, 250mA, SolderBrand	NSF

Key Features

The switch supports a maximum AC voltage of 125V and DC voltage of 60V.
It features a polymeric diallyl phthalate housing for durability.
The contact configuration is DP6T with gold contact material ensuring low resistance.
Mechanical life rating of 25,000 operations.
Operating temperature range from -40°C to 85°C.
Panel mount with solder terminal type for secure installation.
Compact size with diameter 25.5mm and height 44mm.
Compliance with RoHS standards for environmental safety.

Product Description

NSF DP6T Rotary Switch 250mA is a high-quality rotary wafer switch designed for industrial and electrical automation use. Featuring a GX non short series model, the switch offers a double pole six throw (DP6T) contact configuration suitable for complex switching tasks.

It is engineered with a diallyl phthalate polymeric housing, making it mechanically robust and resistant to environmental factors typically encountered in industrial settings. The contacts are gold plated, providing excellent conductivity and reliable performance over the switch's mechanical life of 25,000 operations.

Operational specifications include a maximum AC voltage rating of 125V and a maximum DC voltage of 60V, making it suitable for a range of low-voltage control circuits. The device supports a switch contact current of up to 250 milliamps, accommodating small control currents common in automation and instrumentation.

The rotary switch utilizes a 30-degree angle of throw mechanism, enabling precise indexing suitable for selection applications. Its panel mount design and solder terminal type facilitate straightforward integration into control panels and electronic assemblies.

The switch operates efficiently within a temperature range from -40°C to 85°C, ensuring durability in varying manufacturing or laboratory environments. Its dimensions, 25.5mm in diameter and 44mm in height, allow for compact installation in limited spaces.

The gold contact material provides consistent electrical performance. Designed for industrial, electrical, and automation systems requiring reliable rotary switching solutions. RoHS compliance guarantees adherence to environmental regulations.

Enclosed wafer construction protects the internal mechanisms from dust and debris. Suitable for laboratory, manufacturing, and commercial electrical applications.

This NSF DP6T Rotary Switch combines mechanical resilience and precise electrical characteristics for dependable service in various industrial and commercial automation tasks. Browse additional Rotary Switches and electrical components in the Electronics & Electricals category at EnvMart.
