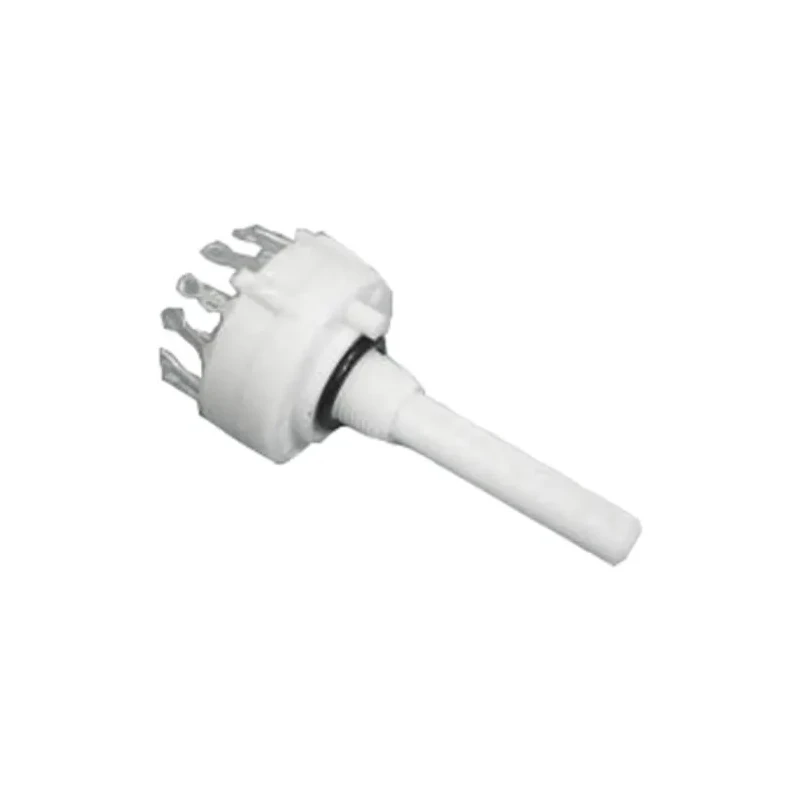

Lorlin 12 Position Rotary Switch 1A PCB Terminal CKF1054

Lorlin CKF1054 12 Position Rotary Switch 1A PCB Terminal is a robust and precise rotary switch designed to handle a variety of signal switching tasks with high reliability. Featuring a single-pole rotary operation, this switch supports up to 12 positions, enabling complex selections in compact spaces.

Its construction includes a polyamide housing that ensures durability while maintaining a lightweight form factor. The switch terminals are designed for PCB mounting, facilitating easy installation in electronic assemblies.

This switch operates safely at a contact current of 1 ampere and voltage ratings up to 24V AC/DC, making it suitable for low voltage signal switching applications. It offers an IP65 front panel sealing, providing effective protection against dust and water ingress, which enhances its suitability in industrial and commercial environments.

The mechanical design incorporates dampened indexing and reduced axial play, resulting in a smooth, tactile feel and reliable position setting. The standard 30° indexing along with a 90° angle of throw delivers precise actuation and switching accuracy. The switch is rated for a mechanical life of 10,000 cycles ensuring durability in repetitive use scenarios.

Operating temperature ranges from -30°C to 85°C permit use in diverse ambient conditions, including industrial and laboratory settings. The black actuator color provides a professional appearance and easy visual identification.

Supports up to 12 positions enabling versatile control options. 1A contact current rating for safe electrical handling. Polyamide housing enhances durability and reliability. PCB mount type and terminal ensure easy integration in circuits.

Designed with IP65 sealing for dust and water protection. Dampened indexing with reduced shaft play for smooth operation. Standard 30° indexing and 90° throw angle for accurate switching. Mechanical life of 10,000 cycles for long-term use.

Operable in a temperature range of -30°C to 85°C. Made in United Kingdom ensuring quality manufacture.

This device is ideal for use in industrial automation, electrical systems, signal control, manufacturing equipment, and laboratory instrumentation. Its precise and reliable performance supports critical switching functions in a variety of environments.
