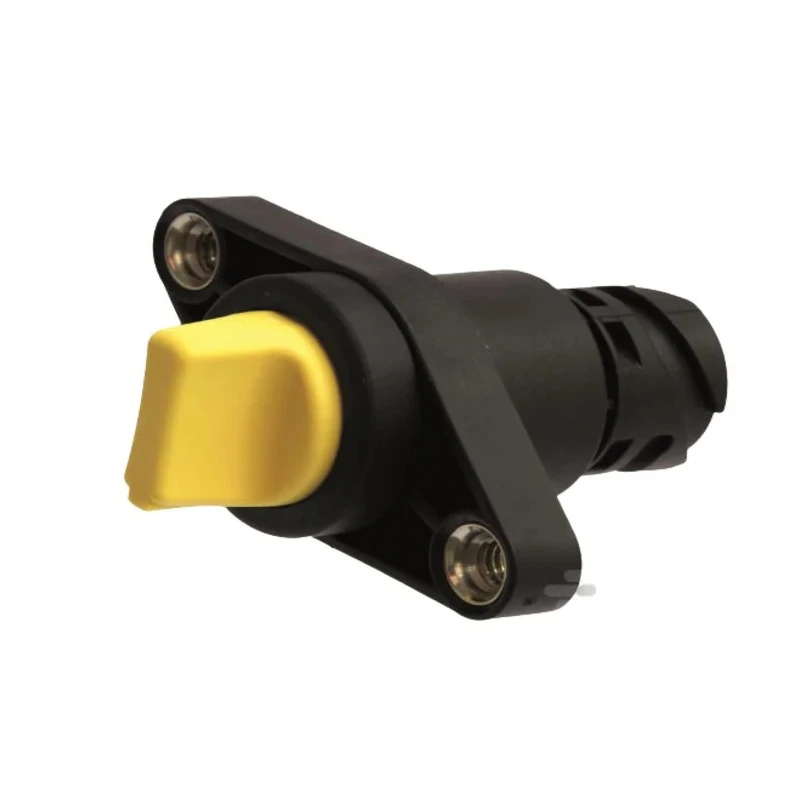

TE Connectivity KISSLING 1 Position 1 NC Rotary Switch 5A Through Hole DS-111-GE1
Specifications
| Country of Origin | Germany |
|---|---|
| Diameter | 31mm |
| Brand | TE Connectivity |
| Height | 69mm |
| Model | DS-111-GE1 |
| Depth | 42.8mm |
| IP Rating | IP69K |
| Width | 31mm |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Series | KISSLING |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | 1 NC |
| Number of Positions | 1 |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Maximum dc Voltage | 32V dc |
| Number of Poles | 3 |
| Standards/Approvals | IEC, ELV, REACH, RoHS |
| Switch Operation | Latching |
| Actuator Colour | Yellow |
| Switch Contact Current | 5A |
| Angle of Throw | 20 ° |
Key Features
- The switch has a latching operation with On-On switch configuration.
- It is designed with thermoplastic housing material for durability.
- This switch supports surface mount type installation.
- It is rated for a maximum DC voltage of 32V dc and a current of 5A.
- The operating temperature range is from -40°C up to 90°C for reliable performance.
- Its IP69K rating provides excellent dust and water resistance.
- The actuator color is yellow for easy identification.
- The switch includes 3 poles and a diameter and width of 31mm each.
Product Description
TE Connectivity DS-111-GE1 is a high-performance 1 Position 1 NC Rotary Switch designed for demanding industrial and commercial applications. It features a robust thermoplastic housing and a through hole terminal type that ensures secure and reliable connections.
This rotary switch is rated for 5A current and supports a maximum DC voltage of 32V, making it suitable for a wide range of electrical equipment. Its latching switch operation with On-On configuration allows precise control in start/stop applications.
Designed to withstand harsh environments, the switch offers an operating temperature range from -40°C to 90°C and an IP69K rating, providing excellent protection against dust, water, and high-pressure washdowns. The actuator is colored yellow for easy visibility in control panels.
With dimensions including a diameter and width of 31mm and a height of 69mm, this switch is compact yet durable, meeting rigorous IEC, ELV, REACH, and RoHS regulatory standards. It features 3 poles and an angle of throw of 20°.
Manufactured in Germany, the DS-111-GE1 rotary switch is ideal for industrial machinery, automotive controls, construction vehicles, and plant engineering, where high shock and vibration resistance are required. The device is primarily a start/stop switch suitable for commercial vehicles and industrial automation systems.
The switch provides high shock and vibration resistance for reliable operation. It features a thermoplastic housing for durability in industrial environments. The IP69K rating ensures high resistance to dust and water ingress.
The switch has a latching and On-On configuration for effective control. It operates reliably from -40°C to 90°C temperature range. The actuator color is yellow, enhancing visual identification. Compliant with IEC, ELV, REACH, and RoHS standards.
Manufactured in Germany, ensuring high-quality craftsmanship. Compact dimensions with 31mm diameter and width, 69mm height. Suitable for use in industrial, automotive and commercial vehicle applications. Discover more high-quality Rotary Switches and components in the Electronics & Electricals category at EnvMart for your precise and reliable switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This rotary switch is rated for a maximum current of 5A.
It supports a maximum DC voltage of 32V.
The operating temperature range is from -40°C to 90°C.
This switch supports surface mount type installation.
It has an IP69K rating, providing excellent dust and water resistance.
The switch has a diameter and width of 31mm and a height of 69mm.
This model features 3 poles.
The switch has a latching operation with an On-On configuration.
It is designed with a thermoplastic housing material for durability.
It complies with IEC, ELV, REACH, and RoHS standards.
The actuator color is yellow for easy identification.
It is ideal for industrial machinery, automotive controls, construction vehicles, and plant engineering.
