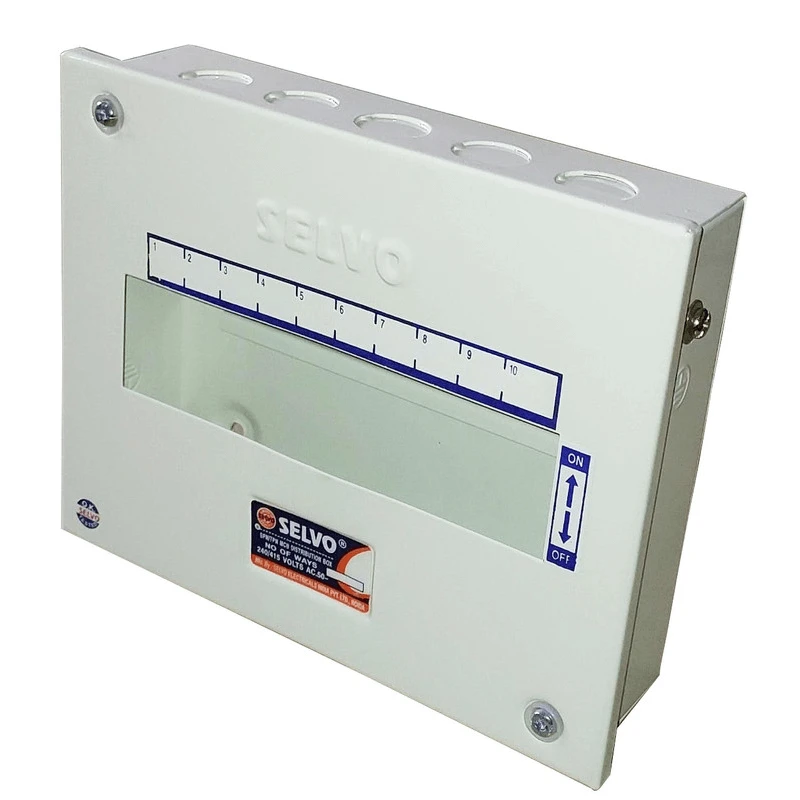

Selvo 10 Way SPN Single Door Distribution Board GSELSPN11019
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 50 Hz |
| Brand | Selvo |
| Material | CRCA Sheet |
| Connection | 10 Way |
| Model | GSELSPN11019 |
| Mounting Type | DIN Rail |
| Weight | 1.4 Kg |
| Door Type | Single Door |
| Dimension (Cm) | 24x20x8 Cm |
| Operating Voltage (AC Volts) | 240V AC |
| Type of Box | SPN |
Key Features
- Enclosures are fabricated in CRCA sheets and undergo seven tank phosphate process & with anti-corrosive powder coating for superior finish and added durability. CRCA Sheet thickness is 1 mm

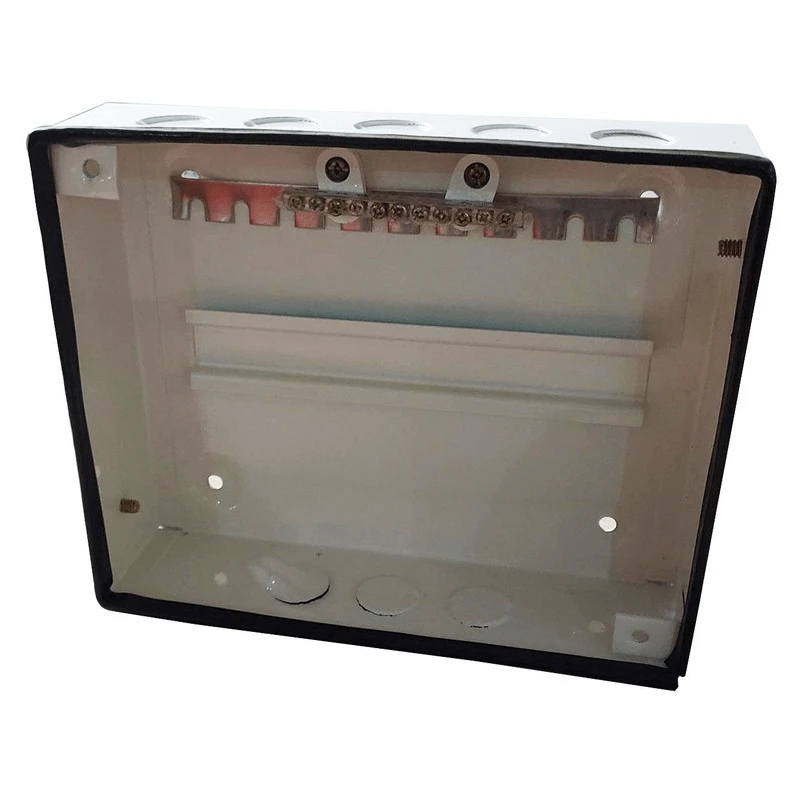

- Inbuilt with standard 35mm din channel for easy fixing & removing MCB, Isolator and RCCB.
- High quality brass neutral and earth links to prevent temperature rise and promote safe operation
- Earthing provision on both sides of D.B required for protection against stray charges producing leakage current, an additional safety factor & equipped with stainless steel screws that prevent rusting of surface.
- Silver plated 100A insulated busbar which is conductive material through which electricity flows along and connects into each MCBs which makes installation easier rather than having lot of cables.
Product Description

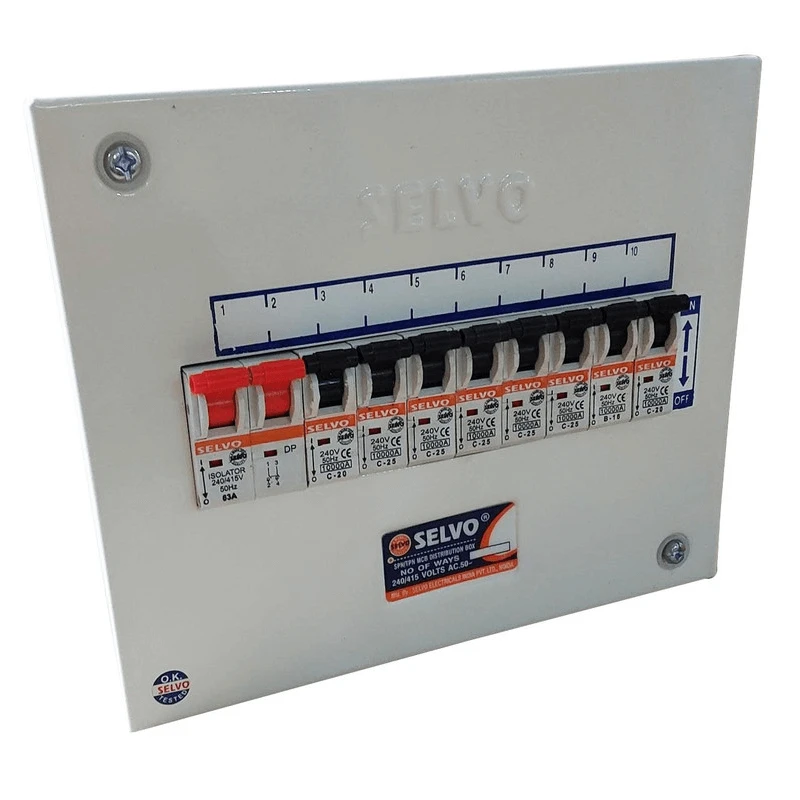

Selvo 10 Way SPN Single Door Distribution Board GSELSPN11019, SELVO presents a wide range of distribution boards that are aesthetically designed and vary in size depending on the size of the property and how many circuits are being controlled inside the consumer unit. The DB divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. SELVO DB's are available in Single / Double doors with SPN and TPN versions
- Detachable gland plates facilitate easy entry and exit of cables
- Identification level and blank plates will be provided for the circuit.
- Adequate space for wiring is provided to ensure proper distribution of neutral & earth wires.
- For maintenance purpose each circuit can be individually isolated to have uninterrupted performance under fault condition so that rest of the circuit are not affected
- Degree of protection is IP 30
- Suitable for surface and flush mounting
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage of the Selvo 10 Way SPN Single Door Distribution Board is 240V AC.
The dimensions of the distribution board are 24 cm x 20 cm x 8 cm.
It is fabricated from CRCA (Cold Rolled Close Annealed) sheet material.
This model supports 10 ways for circuit connections.
The distribution board is designed for DIN rail mounting.
The weight of this distribution board is 1.4 kg.
Yes, it includes earthing provisions on both sides for protection against stray charges and leakage current.
The degree of protection for the distribution board is IP 30.
It operates at a frequency of 50 Hz.
Yes, identification and blank plates are provided for the circuits.
This model features a single door design.
The silver plated 100A insulated busbar facilitates the flow of electricity and simplifies installation by connecting to each MCB.
