Lorlin 12 Position Rotary Switch 1A 24V AC/DC Polyamide Housing Solder Tag CKF1029

Free Delivery in India | Lowest Global Shipping Charges

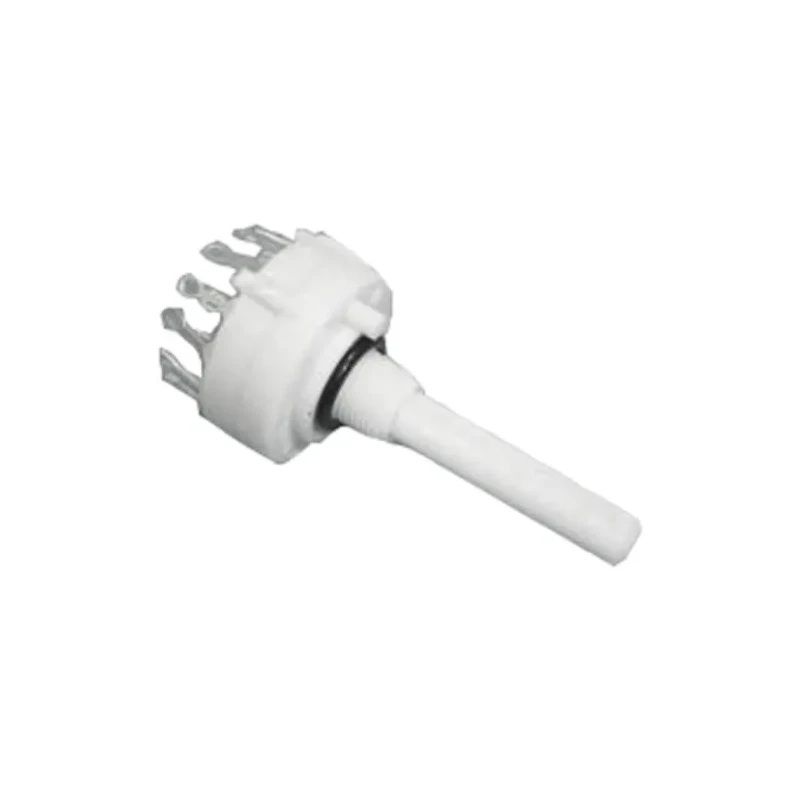

Lorlin 12 Position Rotary Switch 1A 24V AC/DC Polyamide Housing Solder Tag CKF1029

Name: Lorlin 12 Position Rotary Switch 1A 24V AC/DC Polyamide Housing Solder Tag CKF1029
Brand: Lorlin
SKU: 386100
Price: 4.74 USD
Availability: InStock



Category Rotary Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Diameter	27.5mm
Brand	Lorlin
Model	CKF1029
Depth	27.5mm
IP Rating	IP65
Width	26.2mm
Mount Type	PCB
Housing Material	Polyamide
Series	CK
Maximum Operating Temperature	85°C
Number of Positions	12
Minimum Operating Temperature	-30°C
Terminal type	Solder Tag
Maximum dc Voltage	24V dc
Number of Poles	1
Standards/Approvals	RoHS
Switch Operation	Rotary
Actuator Colour	Black
Switch Contact Current	1A
Mechanical Life	10000Cycles
Maximum AC Voltage	24V ac
Angle of Throw	90 °

Key Features

Designed for up to 12 positions and 1 pole per switch.
Supports a current rating of 1 ampere at 24V AC/DC.
Constructed with durable polyamide housing and black actuator.
Features solder tag terminals suitable for PCB mounting.
Operates reliably between -30°C to 85°C operating temperatures.
Offers 30° indexing angle with 10000 mechanical life cycles.
Front panel sealed to IP65 rating to resist dust and water.
Manufactured in the United Kingdom ensuring quality standards.

Product Description

Lorlin CKF1029 12 Position Rotary Switch is a high-quality, IP65 front panel sealed rotary switch designed for industrial and electronic applications requiring precise rotary switching. Operating at 1A and supporting 12 positions, this switch is made with a robust polyamide housing, black actuator, and solder tag terminals optimized for PCB mounting.

Its dampened indexing and reduced shaft play ensure smooth operation and reliable position selection. The switch handles voltages up to 24V AC/DC and is rated for operation in temperature ranges from -30°C to 85°C, making it suitable for a wide variety of signal and control applications in harsh environments.

The 90° angle of throw and 30° indexing provide precise tactile feedback with 10000 mechanical life cycles for extended durability. The single-pole design supports up to four poles per unit, accommodating flexible wiring configurations. The IP65 sealing safeguards internal components against dust ingress and water jets, making it ideal for industrial and automation environments.

Manufactured in the United Kingdom adhering to RoHS standards, the CKF1029 model from Lorlin CKF series delivers reliability and longevity expected in professional electrical systems.

Durable polyamide housing with IP65 front panel sealing. Single pole, 12 position rotary switch configuration. 1 ampere contact current rating for 24V AC/DC. Solder tag terminals for PCB mounting. Dampened indexing and reduced axial play for smooth feel.

Wide operating temperature range from -30°C to 85°C. Mechanical life expectancy of 10000 cycles with 30° indexing. Black actuator color providing professional appearance.

This rotary switch is suitable for industrial automation, electrical control panels, machinery interfaces, and signal switching applications. Its robust waterproof design ensures functionality in challenging environmental conditions, making it a versatile component in electrical and electronic equipment manufacturing.
