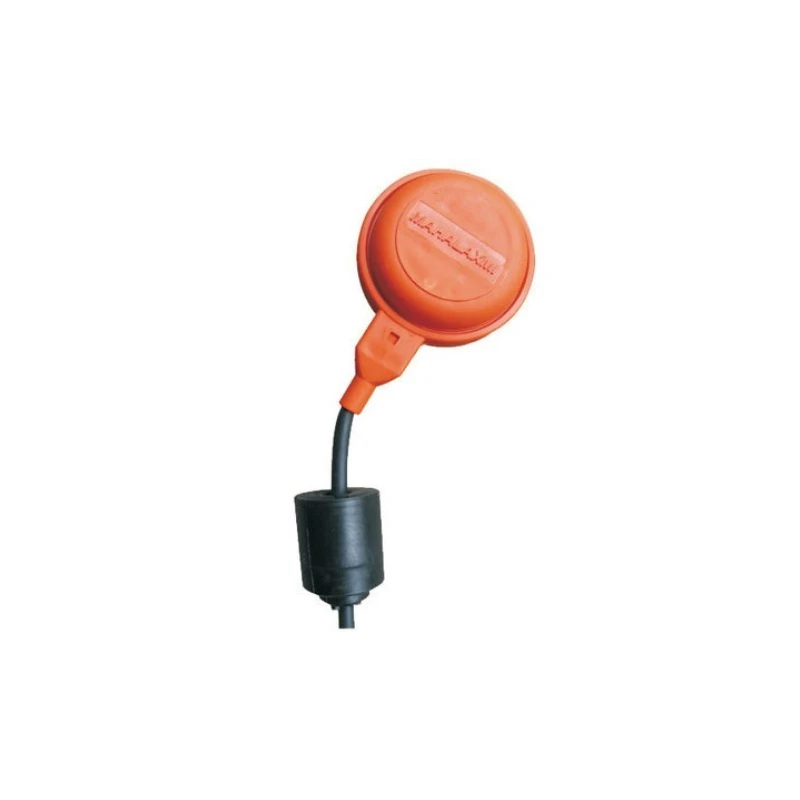

Plastic Cable Float Level Switch 230 VAC
Specifications
| Material | Plastic |
|---|---|
| Protection Type | IP 68 |
| MOC | Float in PP & 3 core wire in PVC |
| Standard Cable Length | 5 Mtrs (Max. 20 Mtrs) |
| Optional | 15 Amp at 230 VAC |
| Media | Liquid |
| Mounting Options | Top Mount |
| Cable insulation | PVC |
| Rated Voltage (V) | 230 VAc |
| Rated current | 10 Amp at 230 VAC |
| Pressure Rating | 2 Bar |
| Float Material | Polypropylene |
| Power/Voltage (V) | 230 VAC |
| Float Diameter | 91mm dia X 50mm thick |
| Switching Element | Micro Switch |
| Life of Switch | 1 Lac Operations |
| Heat Rating | 70C |
Key Features
- Bulk Quantities Available
Product Description
Cable Float Level Switch is a control device for filling and discharging pumps, motor, and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) i-isolator switch units. Due to its large float casing, the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has the double chamber and a final remolding finish to make it absolutely hermetic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated voltage of this model is 230 VAC.
It is suitable for use with non-flammable liquids.
The protection type of this switch is IP 68.
The float diameter is 91 mm and it is 50 mm thick.
The switching element in this unit is a micro switch.
The maximum rated current is 10 Amps at 230 VAC.
The pressure rating is 2 Bar.
The float is made of polypropylene, and the cable is insulated with PVC.
The life of the switch is rated for 100,000 operations.
The heat rating is 70°C.
