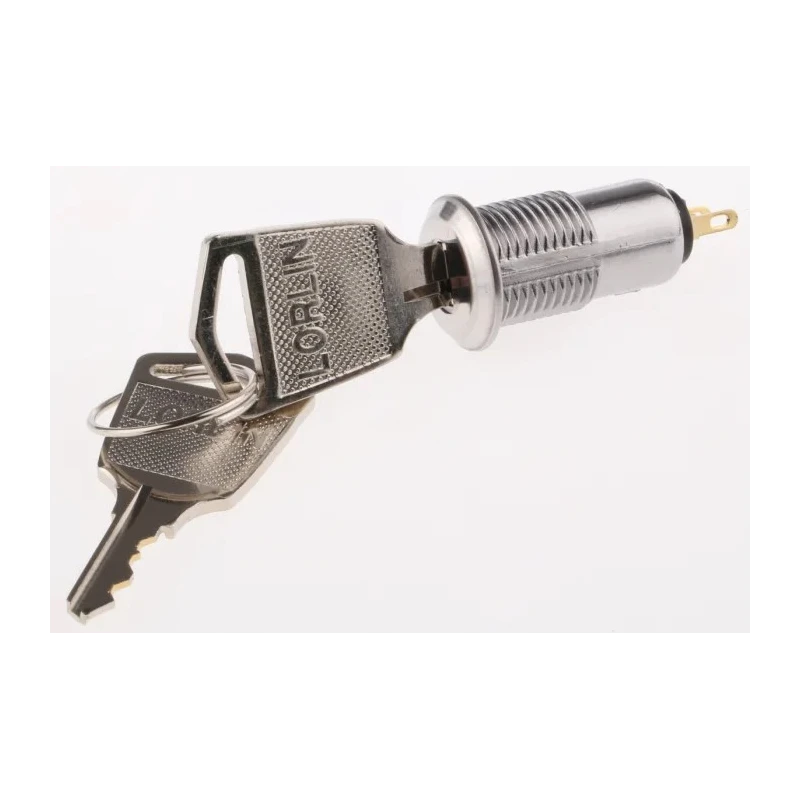

Lorlin Key Switch SPST 2-Way Random Flat-Key 500mA 24V AC/DC SKL-12-AD2

Free Delivery in India | Lowest Global Shipping Charges

Lorlin Key Switch SPST 2-Way Random Flat-Key 500mA 24V AC/DC SKL-12-AD2

Name: Lorlin Key Switch SPST 2-Way Random Flat-Key 500mA 24V AC/DC SKL-12-AD2
Brand: Lorlin
SKU: 413456
Price: 483.74 INR
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	Taiwan
Brand	Lorlin
Model	SKL-12-AD2
Housing Material	Zinc Alloy
Series	SKL
Maximum Operating Temperature	65°C
Contact Configuration	SPST
Number of Positions	2
Minimum Operating Temperature	-20°C

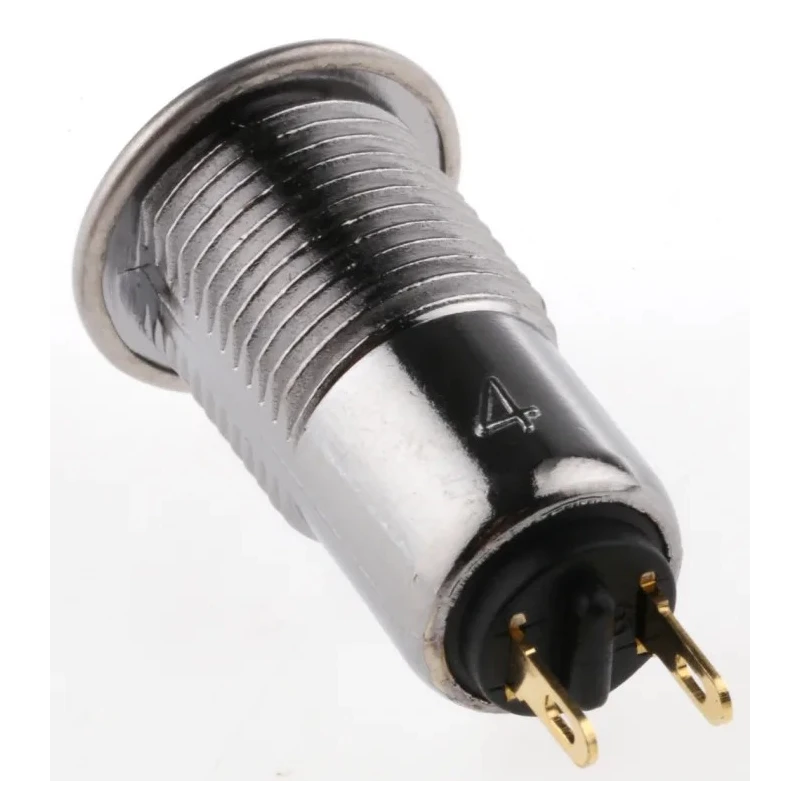

Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Off-On
Contact DC Voltage	24V dc
Switch Contact Current	500mA
Mechanical Life	10000Cycles
Contact AC Voltage	24V ac
Key Type	Random, Flat

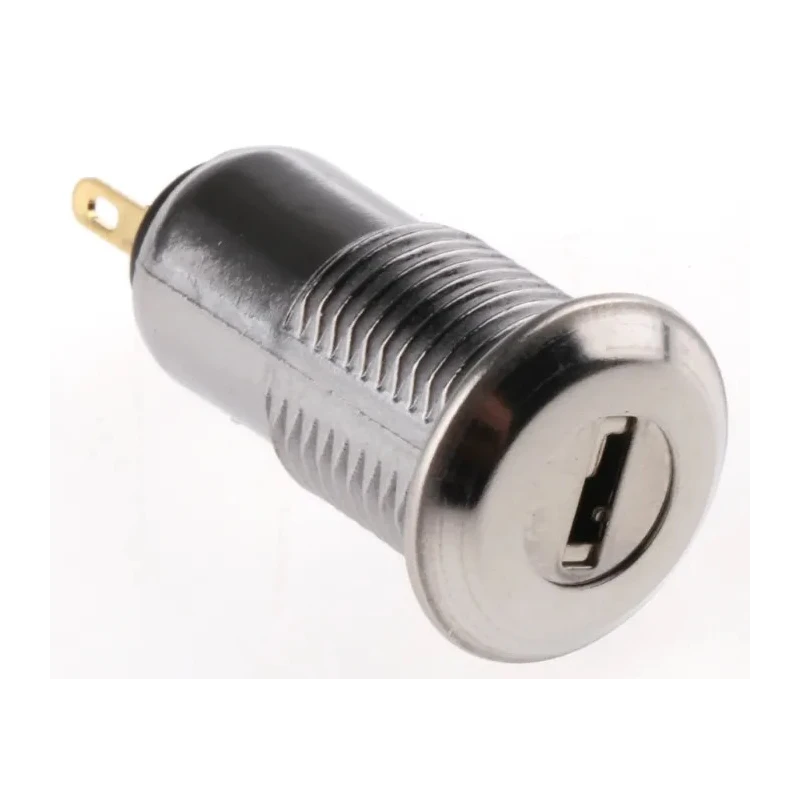

Bezel Shape	Round

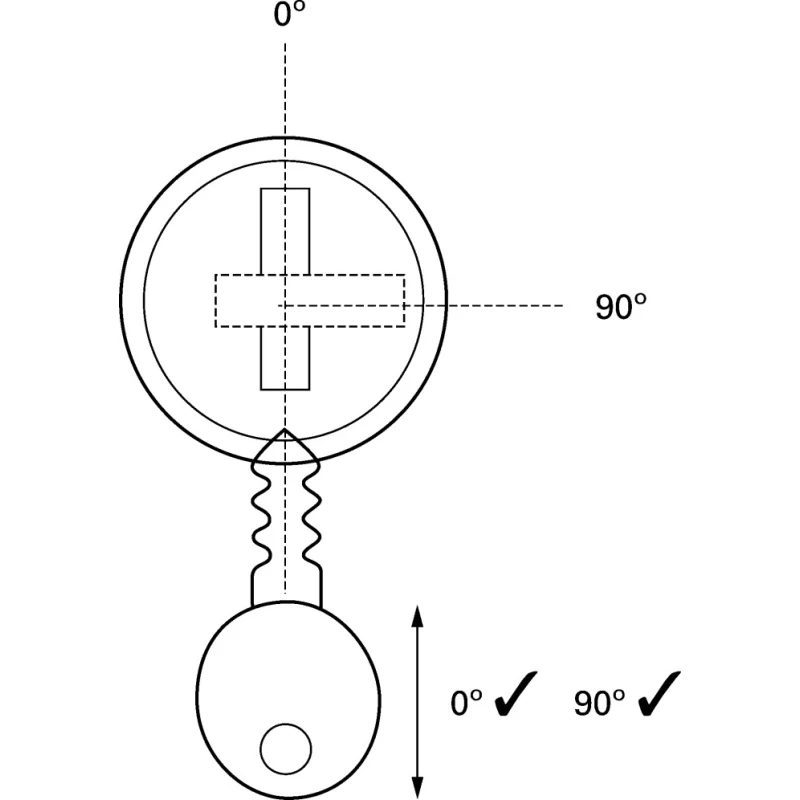

Key Index Angle	90°
Lorlin Key Switch, SPST, 500mA 2-Way Common, Flat-KeyBrand	Lorlin

Key Features

The housing is made of durable zinc alloy with a round bezel shape.
It features solder terminals designed for reliable connections.
The key is random, flat type with 90° key index angle.
Designed for off-on switch operation with a contact configuration of SPST.
Has a mechanical life rated for 10,000 cycles ensuring long service.
Operates within a temperature range of -20°C to 65°C.
Complies with RoHS standards for environmental safety.
Includes two nickel-plated brass keys with a radial cylinder and 4-pin tumbler.

Product Description

Lorlin SKL-12-AD2 key switch is a high-quality SPST 2-way random flat-key switch rated for a contact current of 500mA at 24V AC/DC, suitable for a wide range of electrical and automation applications.

The key switch features a zinc alloy housing with a stainless steel capped bezel providing robustness and durability in industrial and commercial environments. It has solder terminals enabling secure and stable electrical connections.

This switch supports off-on operation with a 2-position key mechanism, featuring a 90-degree lock movement. The radial cylinder includes a 4-pin tumbler protected by nickel-plated brass keys supplied with the product. The mechanical life of 10,000 cycles ensures longevity under frequent use.

Operating temperature ranges from -20°C to 65°C, making it reliable for diverse environmental conditions. It meets RoHS compliance standards ensuring environmentally responsible manufacturing.

This product is designed for industrial, commercial, home automation, control panel, and electrical switch applications where secure key control is required. Its compact round bezel and zinc alloy construction provide both aesthetic and functional advantages.

The housing is made of durable zinc alloy with a round bezel shape. It features solder terminals designed for reliable connections. The key is random, flat type with 90° key index angle. Designed for off-on switch operation with a contact configuration of SPST.

Has a mechanical life rated for 10,000 cycles ensuring long service. Operates within a temperature range of -20°C to 65°C. Complies with RoHS standards for environmental safety. Includes two nickel-plated brass keys with a radial cylinder and 4-pin tumbler.

Manufactured in Taiwan, Province Of China, ensuring quality production standards.
