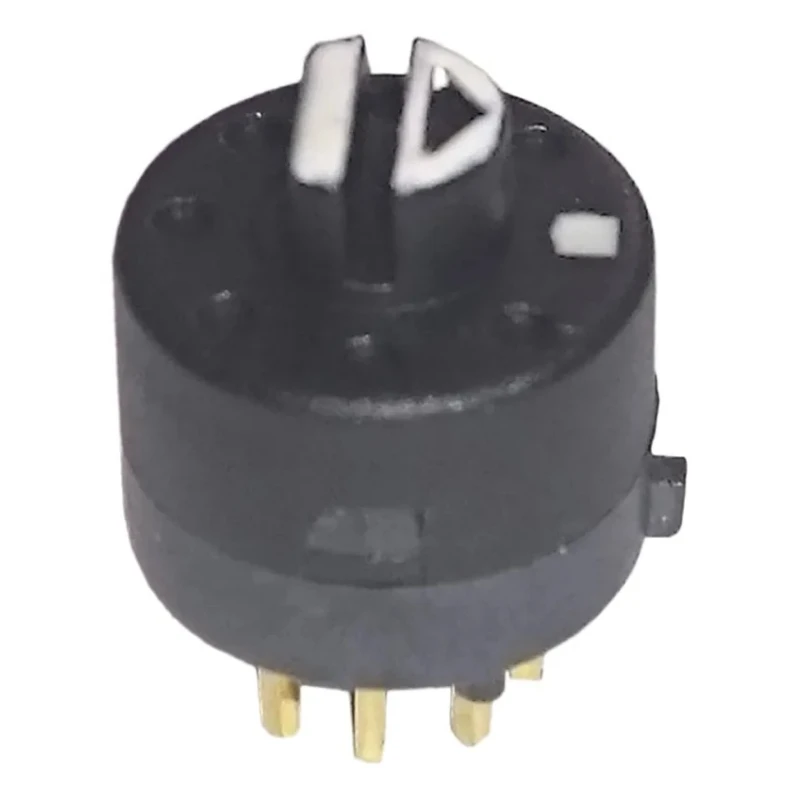

Lorlin MT SP4T Rotary Switch 9.2mm Diameter 500mA PCB Terminal
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.2mm |
| Brand | Lorlin |
| Height | 6.47mm |
| Model | SP4T |
| Depth | 9.2mm |
| Width | 9.2mm |
| Mount Type | PCB |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | MT |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SP4T |
| Switch Configuration | Off |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 8 |
| Standards/Approvals | RoHS |
| Switch Operation | Moulded 9.2mm diameter TO-5 Rotary Switch |
| Actuator Colour | Black |
| Switch Contact Current | 500mA |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 500V ac |
| Angle of Throw | 135 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Lorlin, 3 Position 3P-NC Rotary Switch, 500 mA @ 24 V, Through HoleBrand | Lorlin |
Key Features
- The housing is made of fibreglass reinforced polybutylene terephthalate for durability.
- Features a compact 9.2mm diameter and height of 6.47mm for efficient PCB integration.
- Supports a maximum AC voltage of 500V and DC voltage of 24V.
- Operates reliably within a temperature range from -30°C to +65°C.
- Provides 8 poles and a switch configuration with off positions and 135° angle of throw.
- Mechanical life exceeds 5000 cycles ensuring long-term operation.
- Black actuator color with PCB terminal type and 2.54mm pin spacing for easy soldering.
- Ideal for use in electrical, industrial automation, and control applications.
Product Description
Lorlin SP4T Rotary Switch MTS-11-40 is a subminiature rotary switch housed in a compact 9.2mm diameter TO-5 package, suitable for printed circuit board (PCB) mounting. It features a robust fibreglass reinforced polybutylene terephthalate housing that ensures durability and resistance to environmental stresses.
This rotary switch supports a contact current of 500mA and can handle maximum voltages of 500V AC and 24V DC, making it ideal for various electrical switching applications. Its operating temperature range from -30°C to +65°C allows for reliable performance across diverse industrial environments.
The switch incorporates an 8-pole configuration with a 135° angle of throw and off positions, providing versatile switching options. The actuator is colored black and it uses PCB terminals with standard pin spacing of 2.54mm between pins and 5.08mm between rows to facilitate secure mounting and soldering on PCBs.
Mechanical life rated for over 5000 cycles guarantees durability for frequent switching operations. This product complies with RoHS standards, ensuring environmentally safe manufacturing and materials.
Lorlin SP4T rotary switch is widely used in industrial automation, electrical control panels, instrumentation, and signal routing applications. Its compact size and reliable performance make it suitable for laboratory equipment, manufacturing controls, HVAC systems, and general electronics.
The housing material is fibreglass reinforced polybutylene terephthalate ensuring strength. Supports a switch contact current of 500mA for moderate power circuits. Maximum AC voltage rating is 500V with a maximum DC rating of 24V.
The switch features a 135° angle of throw for precise position control. Mechanical life is rated at 5000 cycles for durable functionality. Designed for PCB mounting with 2.54mm pin spacing for easy integration. Operates within -30°C to +65°C temperature range for reliability.
Explore our extensive Rotary Switches category for advanced electrical and automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum AC voltage of 500V and a maximum DC voltage of 24V.
The switch has a contact current rating of 500mA, suitable for moderate power circuits.
It operates reliably within a temperature range from -30°C to +65°C.
This rotary switch features an 8-pole configuration, providing versatile switching options.
The switch provides a 135° angle of throw for precise position control.
The mechanical life of this model exceeds 5000 cycles, ensuring long-term operation.
It is designed for PCB mounting, facilitating easy integration into printed circuit boards.
The pin spacing is 2.54mm between pins and 5.08mm between rows, allowing for secure soldering.
The housing is made of fibreglass reinforced polybutylene terephthalate, providing durability.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing and materials.
The actuator is colored black, which is standard for this model.
It is suitable for use in electrical, industrial automation, control applications, and laboratory equipment.
