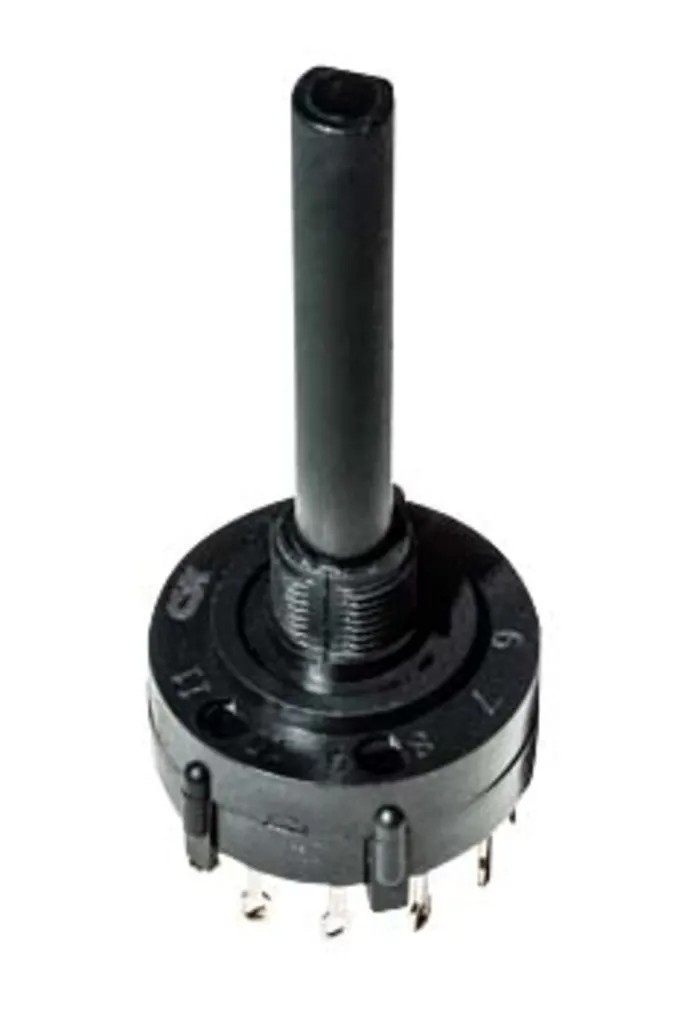

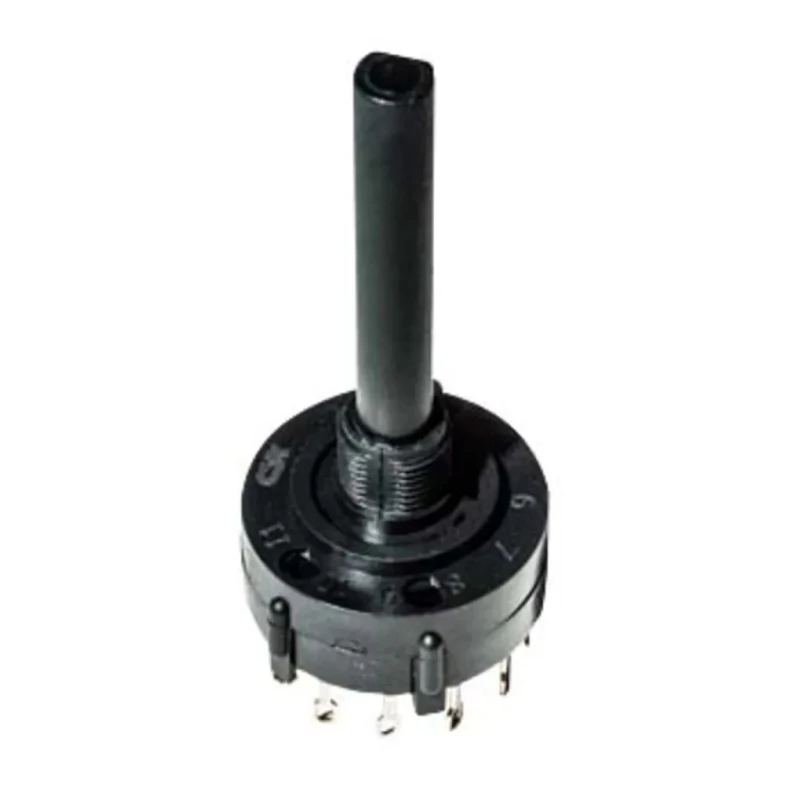

C & K 4 Position DPDT Rotary Switch 2.5A Terminal Panel Mount Glass Filled Polyamide 66 Housing A20403RNCG

C & K A20403RNCG 4 Position DPDT Rotary Switch is engineered for reliable electrical performance in electrical automation and control systems. Its DPDT contact configuration with 4 distinct positions offers precise multi-switching capability, widely applicable in industrial equipment, telecommunications, consumer electronics, and automotive appliances.

The switch features a sturdy glass filled polyamide 66 housing that provides excellent mechanical strength and insulation. It supports panel mount installation with terminal connections, optimized for robust and dependable operations.

This rotary switch is rated to handle a switch contact current of 2.5A with maximum AC and DC voltages of 125V, suitable for low voltage control circuits. The operating temperature range from -30°C up to 85°C ensures functionality in varied climatic and industrial environments.

Its compact form factor with a diameter of 26.2mm and height of 58.94mm allows for easy integration in constrained spaces. The mechanical life expectancy of 300,000 cycles guarantees extended durability and maintenance-free operation.

The switch includes a black-colored actuator for standard control presentation. It is suitable for application in industrial machinery, HVAC, audio visual equipment, telecommunication devices, and consumer electronics. The 30-degree angle of throw provides defined user feedback and precise switch positioning.

Designed to meet RoHS compliance and safety standards including cULus and UL 94 V-0 rating. Suitable for panel mounting and wiring via terminals, the C & K A20403RNCG rotary switch best fits environments requiring dependable multi-position electrical switching functions.

Explore more products in the Rotary Switches category for diverse industrial and commercial electrical switching needs.
