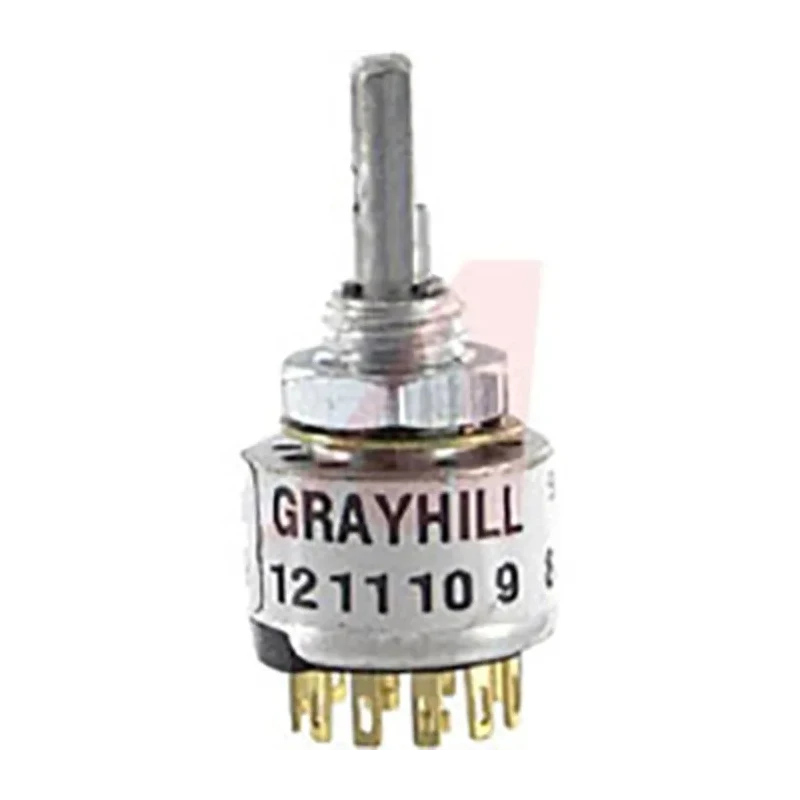

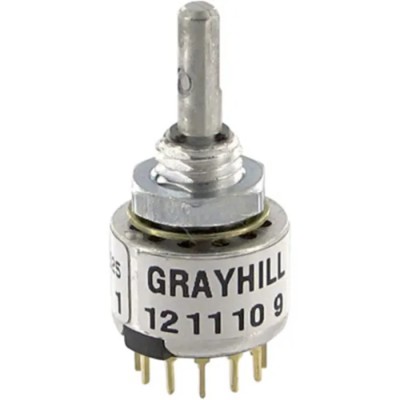

Grayhill 56 Series Single Deck DP12T Rotary Switch 200mA, Solder Lug Terminals, PCB Mount DP12T

Grayhill DP12T Rotary Switch belongs to the rugged 56 Series of single deck rotary switches engineered for reliable long-term operation in industrial and electronic equipment. It is designed specifically for PCB mount applications with solder lug terminals to ensure ease of installation and solid electrical connections.

The switch is configured as a double pole twelve throw (DP12T), allowing flexible circuit control in a compact footprint of 12.7mm diameter and 12.19mm depth. It supports a switch contact current of 200mA with a maximum AC voltage rating of 125V and DC voltage rating of 30V, suitable for low to moderate power switching tasks.

Constructed with a die cast zinc housing featuring tin zinc plating, the switch offers mechanical strength and corrosion resistance. The operating temperature range from -65°C to 85°C and a mechanical life expectancy of 1000 cycles make it suitable for harsh industrial, automation, and instrumentation environments.

The silver-colored actuator provides a 30° angle of throw for precise switching action. The component is RoHS compliant, ensuring environmental safety by restricting hazardous materials.

This rotary switch is ideal for electronics, industrial automation, control panels, and instrumentation where reliable, repeatable switching is required. Its solder lug terminals facilitate secure connections in PCB assemblies.

The switch features dual poles with 12 positions for versatile circuit configurations. It has a robust die-cast zinc housing with tin zinc plating for improved durability. Designed to operate between -65°C and 85°C with mechanical life up to 1000 cycles.

The switch supports maximum voltages of 125V AC and 30V DC for various applications. Compact dimensions with 12.7mm diameter and depth of 12.19mm enable space-saving PCB integration. Silver actuator provides reliable contact operation with a 30° angle of throw.
