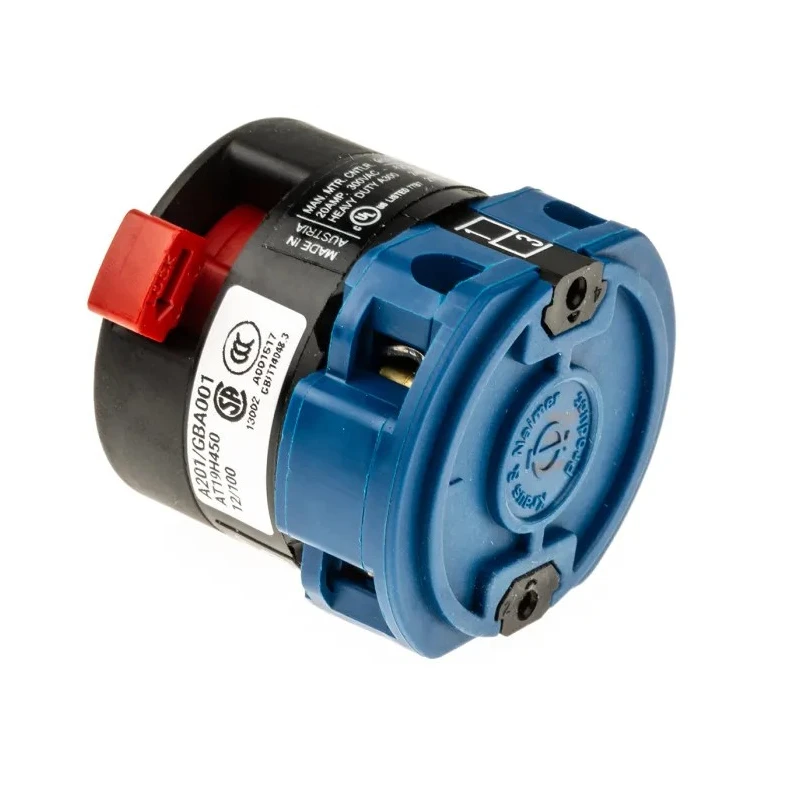

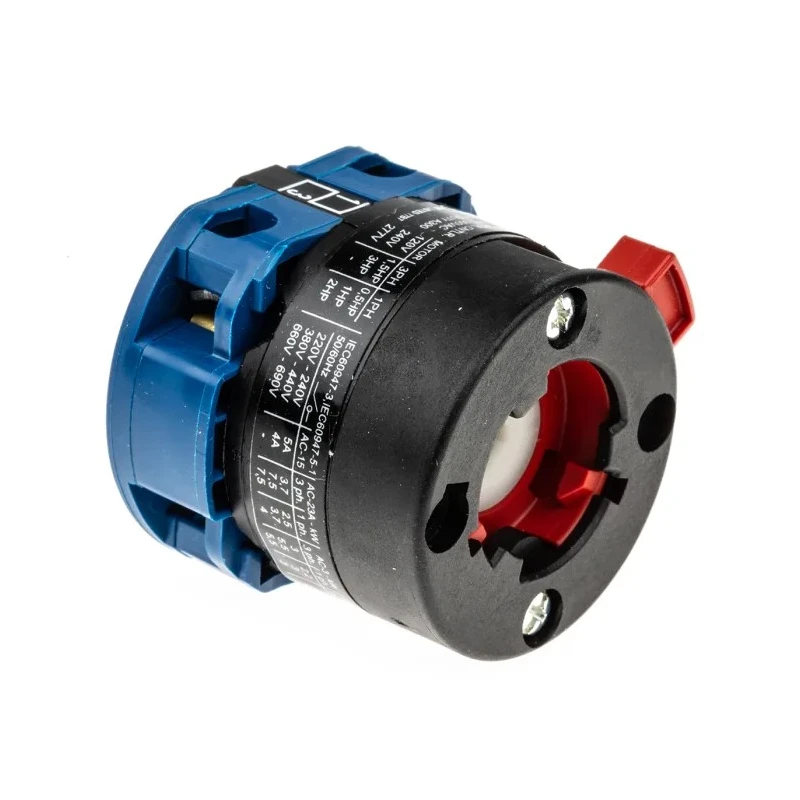

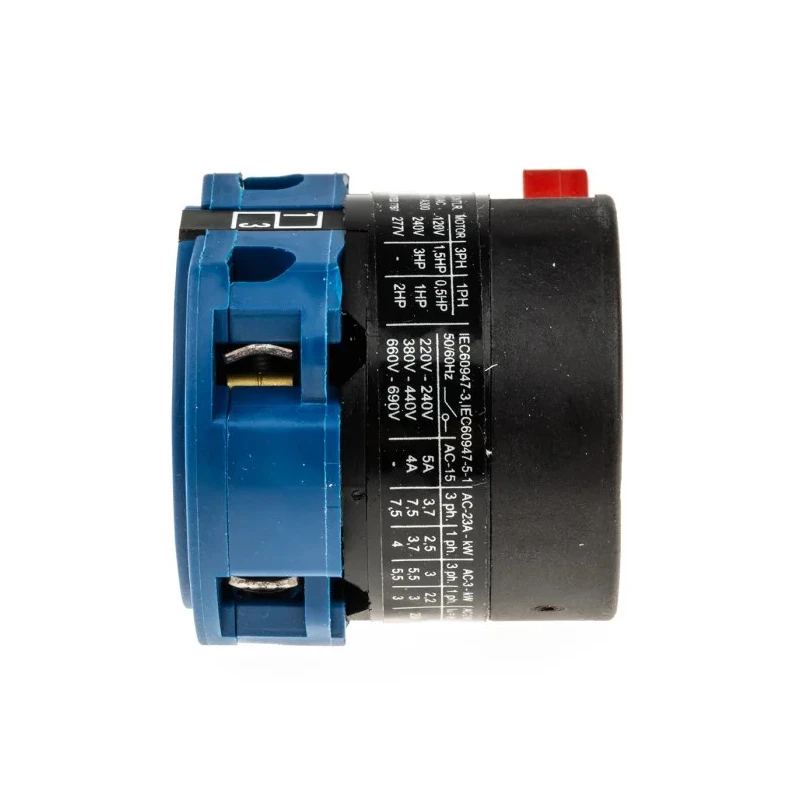

Kraus & Naimer 2 Position 60° Rotary Knob Actuator 20 A CA10.A201/GBA001.*FT

Kraus & Naimer CA10.A201/GBA001.*FT is a high-quality 2 position rotary knob actuator designed for panel mounting applications. Rated for 20 A contact current and up to 660 V contact voltage, this cam switch actuator provides precise control with a 60° angle of throw. Its rugged construction includes finger-proof terminals and an IP65 ingress protection rating, making it suitable for demanding industrial electrical installations.

The actuator offers exceptional reliability with a mechanical life of one million cycles, ensuring long-term performance in industrial automation, electrical panels, machinery, and control systems. It operates efficiently across a wide temperature range from -25°C to 55°C, adapting to various environmental conditions.

This model belongs to the Kraus & Naimer CA series and supports 18 poles, providing robust switching capabilities. The compact dimensions (51.7 mm length by 48 mm width) conform to standard panel sizes (S0 size), facilitating straightforward installation. Please note that while it lacks hazardous area certification, it complies with the CENELEC EN50005 standard, focusing on industrial safety and reliability.

Ideal for industrial automation, electrical distribution, manufacturing equipment, and control panel applications, the CA10.A201/GBA001.*FT actuator ensures robust operation and user safety. Each unit is supplied with the appropriate legend plate; however, the switch operator should be ordered separately as per system requirements.

This rotary switch actuator features 2 positions with a 60 degree angle of throw. The mechanical life rating is 1,000,000 cycles ensuring durability. It supports a contact current of 20 amperes and contact voltage up to 660 volts.

The product is rated for use in temperature ranges from -25°C to 55°C. The actuator type is a rotary knob suitable for industrial electrical applications. The device is compliant with the CENELEC EN50005 standard for cam switches.

The compact size with dimensions approximately 51.7 mm length and 48 mm width fits standard S0 size panels. The switch does not have hazardous area certification but provides robust protection with IP65 ingress rating. Explore more products in the EnvMart Electrical & Automation category for high-quality Rotary Switches and actuators from leading brands.
