Kraus & Naimer 3 Position Knob Actuator 115 A, 690V, IP40, 2 Poles, Series 855 C80.A211/GBA001.E

Kraus & Naimer C80.A211/GBA001.E 3 Position Knob Actuator is a robust rotary switch actuator designed for electrical automation and control systems. It supports up to 115 amps of contact current and operates at a contact voltage of up to 690 volts. The knob actuator design provides easy manual control over switching functions.

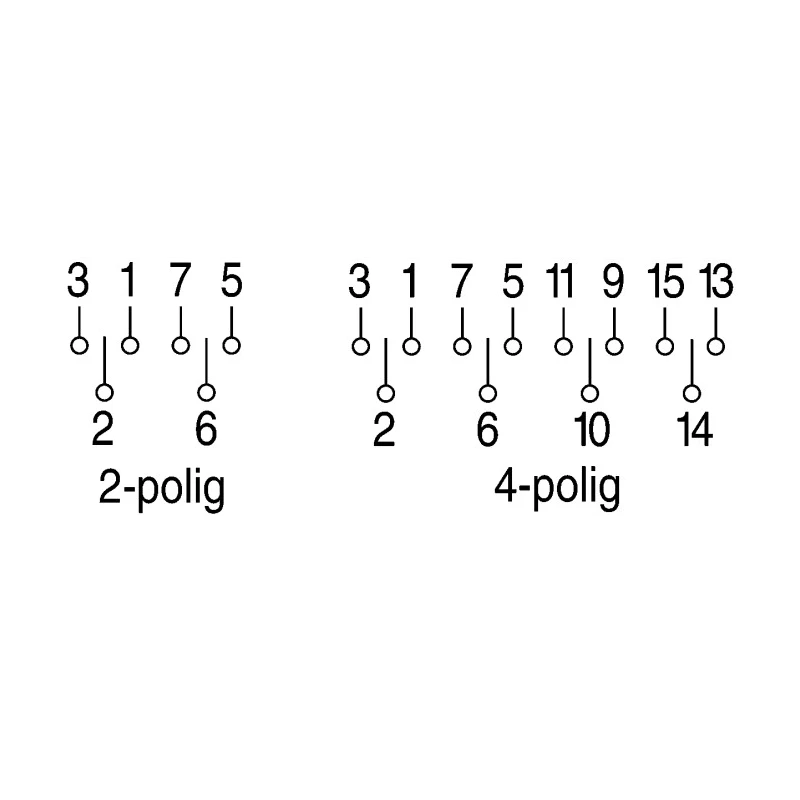

With 3 positions and 2 poles, this actuator offers flexible switching configurations suitable for various industrial applications including electrical panels, automation controls, and machinery operations. Its IP40 rating protects against solid objects larger than 1 mm, making it reliable for indoor electrical environments.

The actuator features a cage clamp terminal type which facilitates secure wiring connections, enhancing safety and reliability. The product is engineered for a wide temperature operating range from -5°C to 50°C, ensuring consistent performance in typical industrial and commercial conditions.

The C80.A211/GBA001.E model complies with internationally recognized standards including CE and UL approvals, confirming adherence to strict quality and safety requirements. It boasts a mechanical lifetime of 1,000,000 operations, highlighting its durability for continuous use in demanding applications.

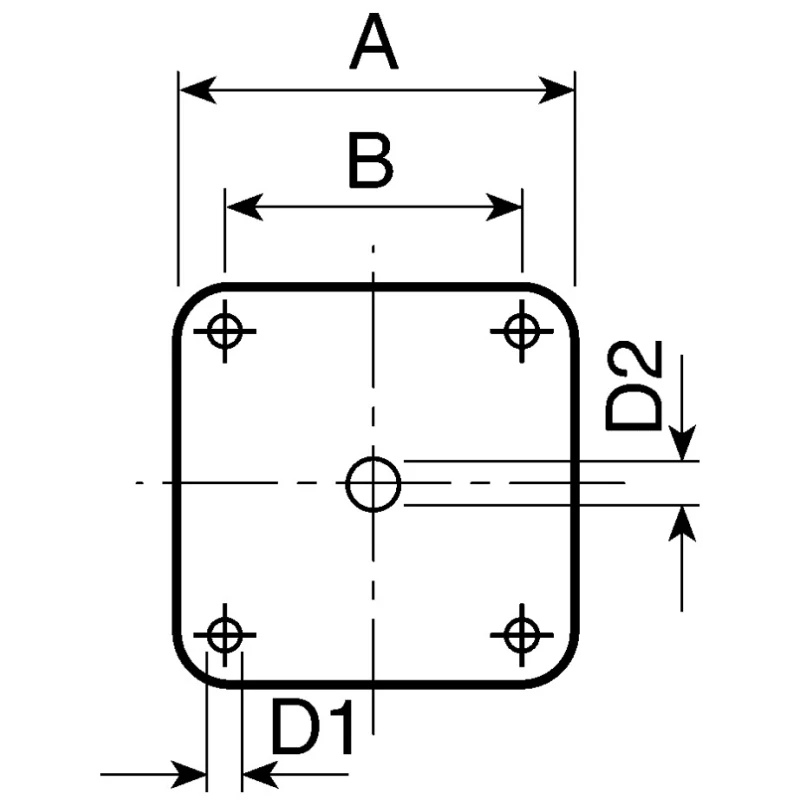

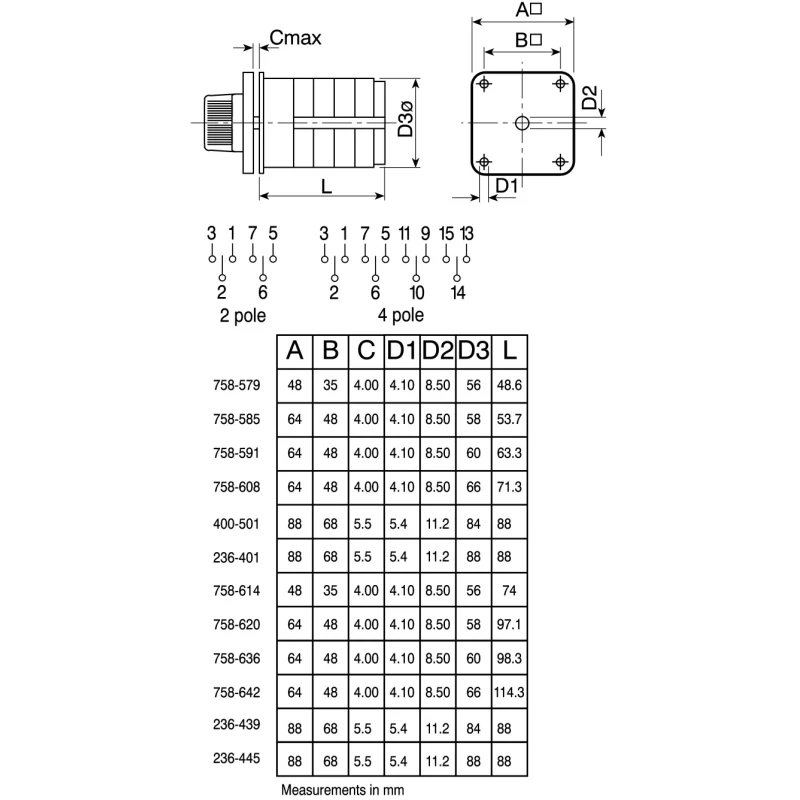

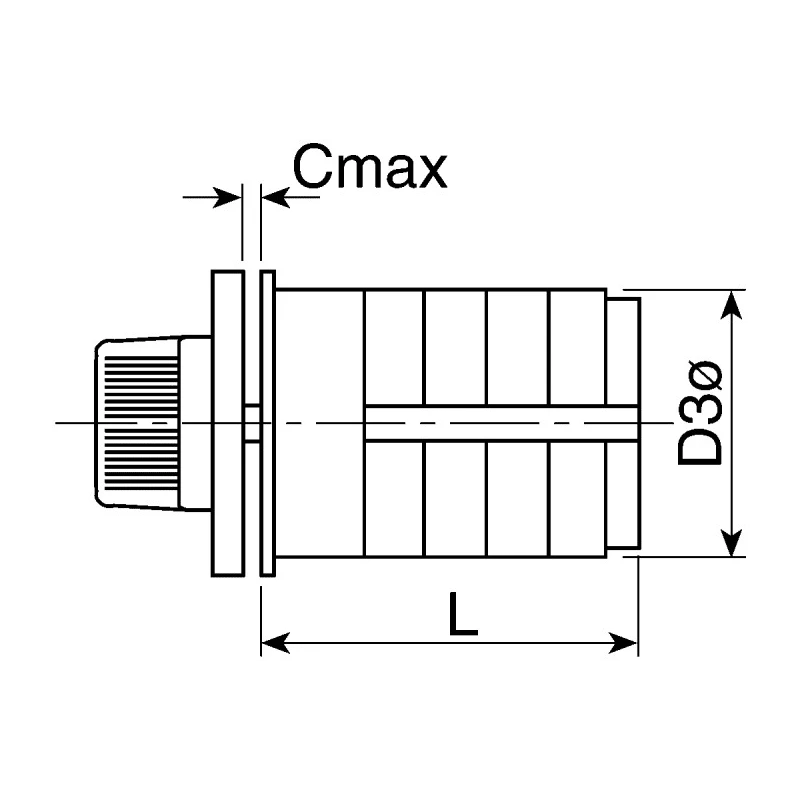

Compact in size with dimensions of 88 mm (length), 70 mm (width), and 52 mm (depth), this actuator is easy to install within electrical control panels or machinery housings. Manufactured in Ireland, it reflects high manufacturing and quality assurance standards.

Knob actuator type for easy manual operation. 3 selectable positions with 2 poles for versatile switching. High current rating of 115 A suitable for robust electrical loads. Cage clamp terminals ensure strong, reliable connections.

IP40 rated protection for indoor environments. Operating temperature from -5°C to 50°C for broad application range. Certified to CE, EN 61869-1, EN 61869-2, and UL standards. Mechanical durability with 1,000,000 operation life cycles.

Compact dimensions enable easy mounting and integration.

This Kraus & Naimer knob actuator is ideal for use in industrial electrical switchgear, automation controls, and manufacturing equipment. It ensures safe and reliable function in various electrical installations and is backed by global standards compliance. Explore more electrical switches and actuators at EnvMart to find compatible components for your applications.
