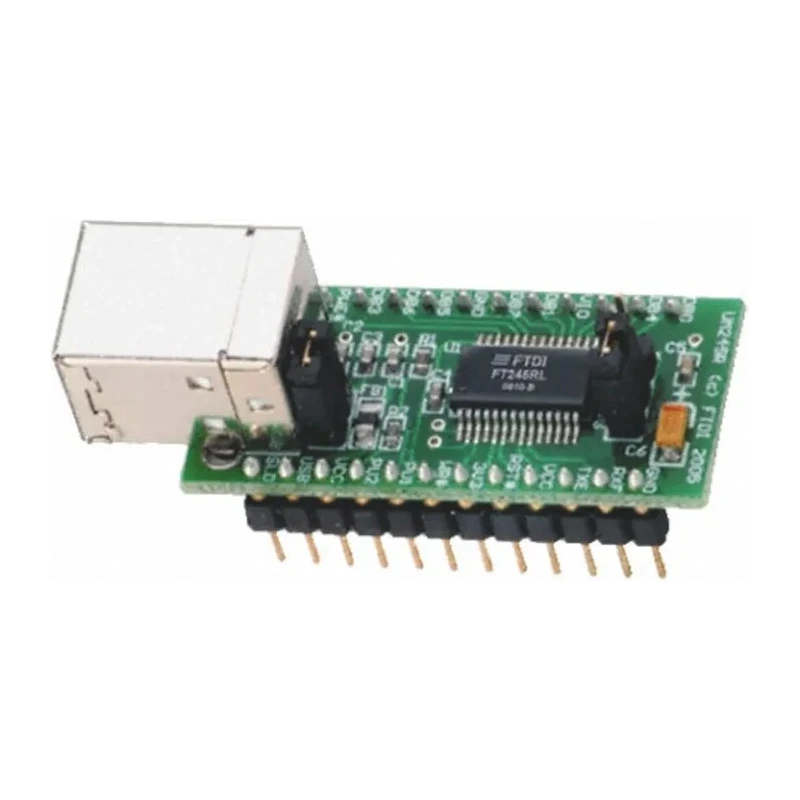

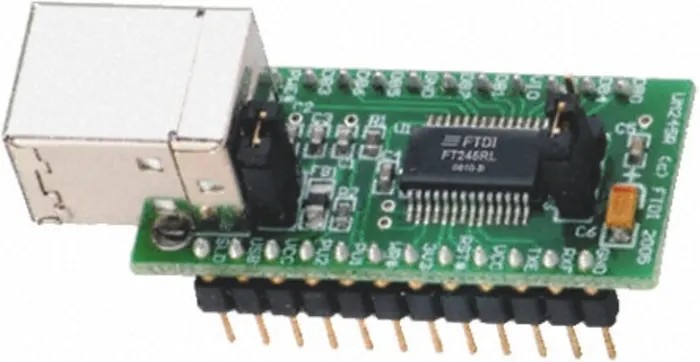

FTDI Chip UM245R USB to Parallel FIFO Development Module for Standard 15.0mm 24 Pin DIP Socket UM245R
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Model | UM245R |
| Technology | CMOS |
| Interface Type | USB, Parallel |
| For Use With | Standard 15.0mm (0.6 in) wide 24 pin DIP socket |
| Standards/Approvals | FCC, RoHS Compliant, CE, European Union directive 2002/95/EC |
| Maximum Frequency | 12MHz |
| Kit Classification | Development Board |
| Featured Device | FT245R |
| Kit Name | UM245R USB-Parallel FIFO Development Module |
Key Features
- Provides USB to parallel FIFO interface using FT245R IC device.
- Designed to fit standard 15.0mm (0.6 in) wide 24 pin DIP socket.
- Supports both USB bus-powered and self-powered configurations.
- Level shifting for 5V or 3V interface IOs through jumper settings.
- Maximum data transfer rate up to 1 MegaByte per second.
- Complies with FCC, RoHS, CE, and EU directive 2002/95/EC standards.
Product Description
The FTDI Chip UM245R USB to Parallel FIFO Development Module is a high-performance communication and wireless development tool built around the FT245R IC. This CMOS development board is tailored for engineers and developers requiring a reliable USB to parallel FIFO interface solution.
Mounted on a printed circuit board designed to fit a standard 15.0mm (0.6 inch) wide 24 pin DIP socket, the module provides straightforward access to all FIFO interface and control pins including TXE#, RXF#, RD#, and WR, enabling comprehensive control and data handling.
The UM245R module supports flexible power configurations, allowing either USB bus-powered operation or self-powering schemes. Additionally, it accommodates voltage interface level shifting with options for 5V or 3V IO levels via two sets of jumper pins, making it adaptable to various embedded system requirements.
The device supports a maximum operating frequency of 12MHz and can transfer data efficiently at rates up to 1 MegaByte per second, suitable for demanding communication tasks.
Compliant with important regulatory standards such as FCC, RoHS, CE, and the European Union directive 2002/95/EC, this development board ensures environmental friendliness and legal conformity for commercial and industrial use.
Provides USB to parallel FIFO interface using FT245R IC device. Designed to fit standard 15.0mm (0.6 in) wide 24 pin DIP socket. Supports both USB bus-powered and self-powered configurations. Level shifting for 5V or 3V interface IOs through jumper settings.
Maximum data transfer rate up to 1 MegaByte per second. Complies with FCC, RoHS, CE, and EU directive 2002/95/EC standards.
This UM245R module finds applications in electronic development, prototyping, and debugging of embedded systems that require USB to parallel communication interfaces. It suits use in industrial automation, laboratory instrumentation, educational kits, and customized communication device development.
Explore FTDI Chip products and communication development tools at EnvMart for reliable, industry-grade USB interface solutions.
Explore more products in our Electronic Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UM245R module supports a maximum data transfer rate of up to 1 MegaByte per second.
It provides a USB to parallel FIFO interface using the FT245R IC device.
The maximum operating frequency for the UM245R is 12MHz.
The UM245R supports both USB bus-powered and self-powered configurations.
The jumper settings allow level shifting for 5V or 3V interface I/O levels.
This model is designed to fit a standard 15.0mm (0.6 in) wide 24 pin DIP socket.
The module is built using CMOS technology.
It is suitable for electronic development, prototyping, and debugging of embedded systems requiring USB to parallel communication interfaces.
The featured device in the UM245R development board is the FT245R.
The kit classification of this product is a development board.
The UM245R module is manufactured in India.
